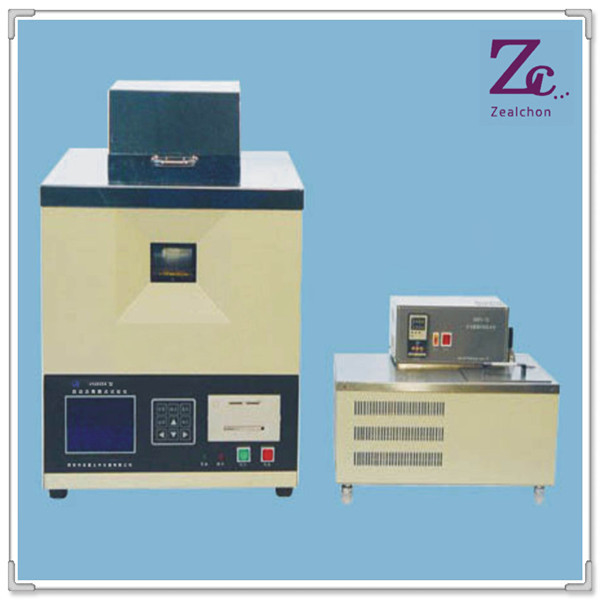

A94 GB/T 4510 Automatic Bitumen Breaking Point Tester
Standard: GB/T 4510
Application:
This tester is in accordance with People's Republic of China standard GB/t 4510-2006-tar determination of brittle point, People's Republic of China JTG E20-2011 industry standard specification for bitumen and bituminous mixtures for highway engineering test t 0613-1993 the asphalt of brittle point test (Flas law) include design and manufacture, applied to t-0613 GB/T 4510 and standard requirements, Flas bituminous materials brittle.
Feature:
1.This tester is composed of brittle point tester and low-temperature water bath, brittle point tester is test main part of brittle point test, low-temperature water bath is the refrigeration equipment of brittle point tester , it’s for cooling.
2.Brittle point tester freezing room cooling rate is 1 ° c per minute.
3.Brittle point tester electric bending mechanism loading specimen automatically, the specimen bent once every minute.
4. Brittle point tester operation panel is composed of the operator panel LCD display, CANCODE, function switch, printer and other components, Easy to manipulate and show the specimen test results intuitively
Specification:
| Main Technical Indicators |
| Parameter Names | Details |
| 1 Power supply: | AC (220 ± 10%) V, 50Hz; |
| 2, Cooling method: | Temperature cycling bath; |
| 3, Cooling rate: | (1 ± 0.5) ℃ / min; |
| 4, Temperature range: | -30 ℃ ~ 25 ℃; |
| 5, Measurement error: | ± 0.5 ℃; |
| 6, Ssample steel size: | 41 mm × 20 mm × 0.15mm (length × width × thickness); |
| 7, Quantity of samples: | Test three samples simultaneously; |
| 8, Temperature: | Room temperature ~ +30 ℃; |
| 9, Relative humidity: | ≤ 85%; |
| 10 Power consumption: | 450W (brittle point tester) + 1600W (low temperature circulating bath). |
| 11 Boundary Dimensions: | 500 mm × 400 mm × 570 mm (brittle point tester length × width × height). |
Service:
1. Warranty 1 year of replacement and return.
1, Providing factory visit and study, technical training
2, 24-hour technical support by e-mail or phone
3, Providing laboratory construction program design guidelines
4, Providing product design and OEM service
Related Equipment:
Asphalt sampler, asphalt furnace.
