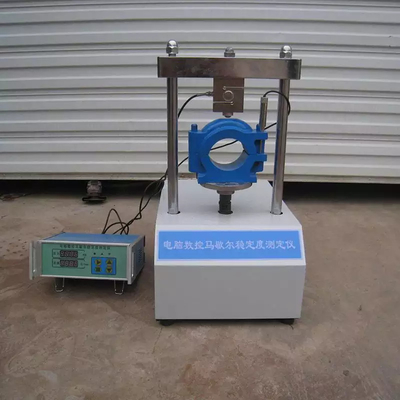

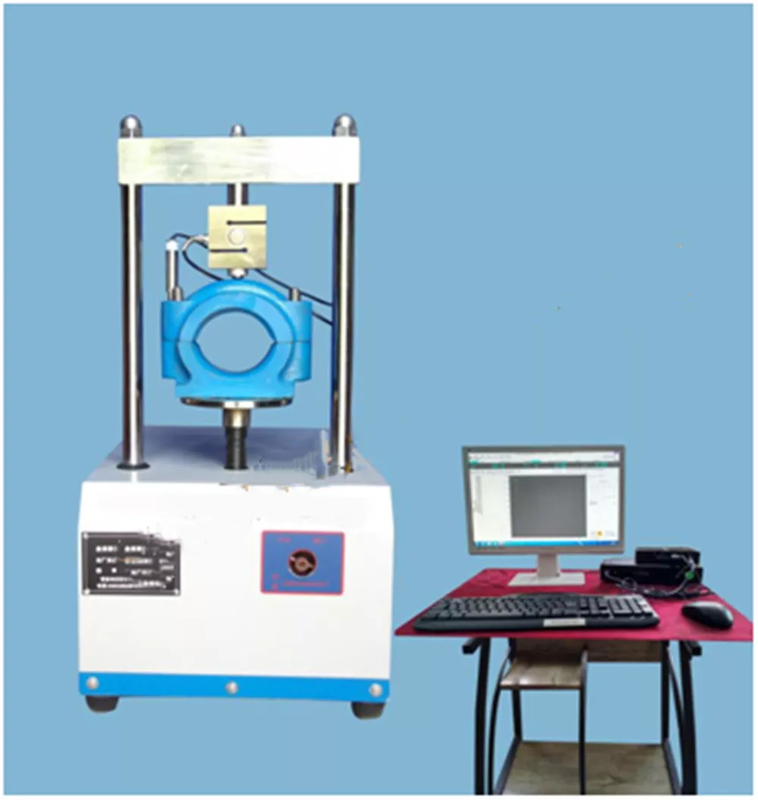

A61 Automactic Marshall Stability Test Apparatus(30KN AND 50KN)
Marshall stability tester is According to the ministry of communications of the People's Republic of China industry standard "JTG E20-2011 road asphalt and asphalt mixture test procedures" and "T0709-2011 asphalt mixture Marshall stability test standard", combining with the characteristics of highway construction of the laboratory work
and development of the instrument
Consist of standard specimen clamp, pressure, pressure sensor, displacement sensor and single chip microprocessor controller.
Can automatic compression and gathering force and displacement value.

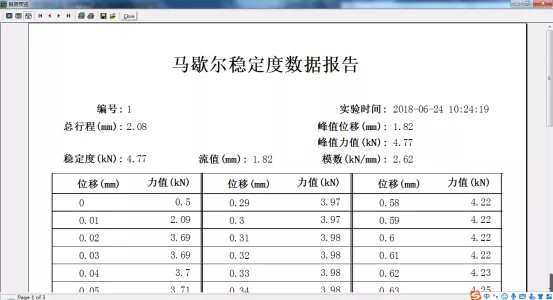

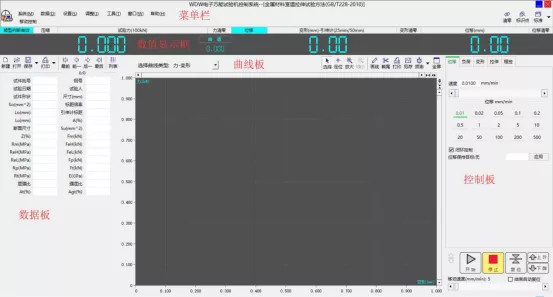

Automatic calculation, display force and displacement of the instantaneous value and maintain peak. With special software, computer via serial port connection, can extract data from Marshall stability tester, and the data generated experiment report, curve report forms printing.
Have lower limit protection function
A61 Automatic Asphalt Marshall Stability compressive Tester
Features

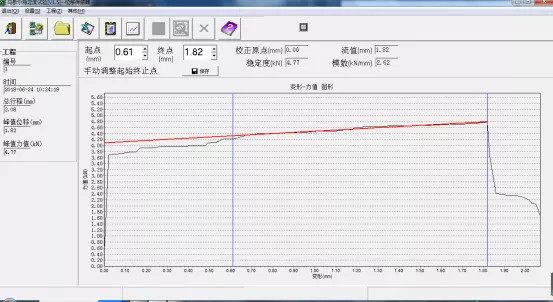

Computer controls the test, deformation data and curves are storage by computer, can be printed.
Powerful analysis software, automatic calculation of best asphalt dosage, can be printed.
Technical specifications
Lifting rate: 50±5mm/min
Pressure head dia.: 101.6±0.2mm, 152.4±0.2mm
Max. pressure: 50kn
Accuracy: ±1%
Flow value range: 0-15.00mm
Accuracy: ±0.1mm
Power supply: AC 220V, 50Hz
item
|
value
|
Warranty
|
1 year
|
Certification
|
ISO
|
Customized support
|
OEM
|
Place of Origin
|
China
|
|
Shaanxi
|
Brand Name
|
Zealchon
|
Model Number
|
A61
|
Power
|
Electronic
|
Instrument load rating
|
30 and 50
|
Rising speed
|
50 mm/min
|
motor power
|
750 W, 2
|
Displacement sensor
|
0 to 30 mm, precision 0.2% FS
|
Dimension
|
350 mm * 600 mm * 970 mm
|
Product name
|
marshall stability compressive machine
|
Application
|
Asphalt
|
Power supply
|
220V 50Hz
|
a. Inner package: dust-proof plastic bag b. Outer package: standard export wooden case with pallet c. Special package: according to buyer's requirements d. The packages suitable for international transport by sea, by air or by any other delivery methods
