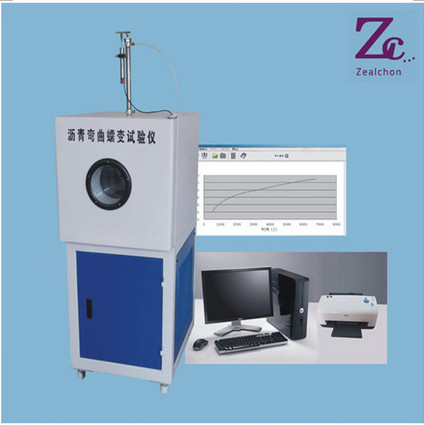

A34 Asphalt Bending Beam Rheometer

A34 Asphalt Bending Beam Rheometer

    • A34 Asphalt Bending Beam Rheometer
    • A34 Asphalt Bending Beam Rheometer
    • A34 Asphalt Bending Beam Rheometer
    • A34 Asphalt Bending Beam Rheometer
    • A34 Asphalt Bending Beam Rheometer
  • A34 Asphalt Bending Beam Rheometer

    Product Details:

    Place of Origin: China
    Brand Name: zealchon
    Certification: iso
    Model Number: A34

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: $1000
    Packaging Details: Wooden box
    Delivery Time: Within 7days
    Payment Terms: T/T, T/T, L/C, Western Union
    Supply Ability: 100 sets
    Contact Now
    Detailed Product Description
    Power: Electronic Usage: Asphalt Bending Beam Rheometer
    Cylinder Pressure: 1MPa Specimen Loading Load: 0 ~ 3000 MN

    Product Description

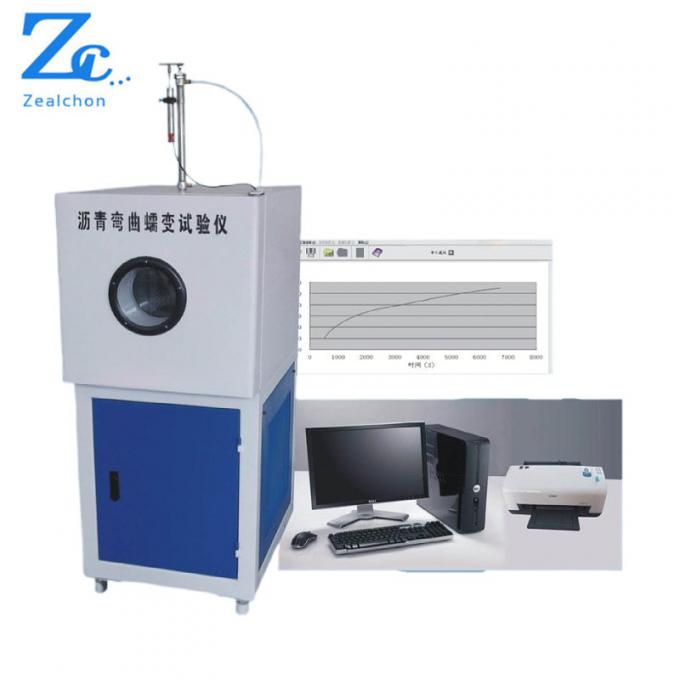

    A34 Asphalt Bending Beam Rheometer
    A34 ASTM D6648 Laboratory Rotational Torque Bending Beam Rheometer Rheometer Testing Machine

    Standard: ASTM D6648

    ApplicationsAsphalt binder testDimensions, in (mm) WxDxH49x49x41in (1,245x1,245x1,040mm) LxWxHEstimated Shipping Weight, lb
    (kg)487lbs (221kg)


    HM-59 and HM-73 Bending Beam Rheometers (BBR) by ATS measure the flexural creep stiffness of asphalt binder from ambient to -40°C to predict low-temperature thermal cracking of asphalt pavements. Special molds form small beam samples of binder for testing, and deflection of the beam is recorded as a constant load is applied. Load, displacement and bath temperature are displayed in real time via tabular and graphic forms.
    Both models use an air bearing system to assure reliable loading with accurate and repeatable results. A linear variable
    displacement transducer (LVDT) with a range of 6.35mm and accuracy to ±2µm measures deflection. The stainless steel three-point bend apparatus is easily removed and reinstalled in the base unit for convenient sample preparation and loading.
    A fluid bath controls temperature of the Ethylene Glycol/Water/Methanol mixture down to -40°C (-40°F). Process temperature is controlled by two independent platinum RTD temperature transducers to maintain stability. Both models fully comply with ASTM/AASHTO requirements. A source of clean, dry, compressed air at 50 PSIG minimum must be provided by the user.
    Models come with five aluminum specimen Molds with mylar strips, a Calibration Kit with required weights, and Confidence Beam.
    Calibrated test weights and a certified LVDT NIST-traceable standard are also provided.
    HM-59 ATS Bending Beam Rheometer uses a desktop computer with pre-loaded control, acquisition and analysis software for precise operation. Safe, rapid cooling of the test fluid is provided by the mechanical refrigeration system.
    HM-73 ATS Touch Screen Bending Beam Rheometer retains all of the performance features of the HM-59, but incorporates a state-of-the-art touch-screen design for easy set up and operation. The touch-screen controller has walk through menus for guidance and the machine can be started, stopped and monitored remotely through an App installed on a smartphone, iPad, or tablet.
    The user-friendly control, acquisition and analysis software is preloaded on the internal computer and allows daily verification and periodic calibration of load cell, LVDT, and RTD transducers. A USB port is located on the front of the unit for software upgrades and data storage. The fluid bath is chilled by a thermoelectric cooling system.
    Features:
    Both models are fully compliant with ASTM and AASHTO requirements
    Optimal solution for predicting low-temperature thermal cracking of asphalt pavements via flexural creep stiffness measurements
    Air bearing systems ensure repeatable results and reliable loading
    Fluid baths accurately control temperature of the Ethylene Glycol/Water/Methanol mixture down to -40°C (-40°F)
    Included Items:
    HM-59 ATS Bending Beam Rheometer with pre-loaded computer OR
    HM-73 ATS Touch Screen Bending Beam Rheometer
    Accessories Included With Both Models:
    Five aluminum specimen molds with mylar strips
    Calibration Kit with required weights and Confidence Beam
    Calibrated test weights
    Certified LVDT NIST-traceable standard
    Parameter
    Parameter Names
    Details
    Cylinder Pressure
    1MPa
    Specimen loading load
    0 ~ 3000 mN
    Cylinder stroke
    200 mm
    displacement sensor range
    20 mm 3 ‰ Precision FS
    Temperature Control Range
    - 20 ~ 60 ℃ accuracy of 0.1 ℃
    Specimen size
    Lenghth 127 mm * thickness 6.35 mm * width 12.7 mm
    Environment cabinet internal dimension
    length 300 mm * 270 mm * wideth 270 mm * height 300
    Boundary Dimension
    Length 500 mm *width 700 mm * height700 mm
    Refrigeration power

    1.5 P
    Heating power
    800 w
    Power supply voltage
    220 V
    Silent air compressor(built-in)
    1 KW, 220 V
