Name: A62 50kn Automatic Bitumen Marshall Stability Testing Machine
Brand: Xian Zealchon Electronic Technology Co., Ltd.
SKU: A062
Price: 4200 USD
Availability: InStock

Home Products asphalt testing machine

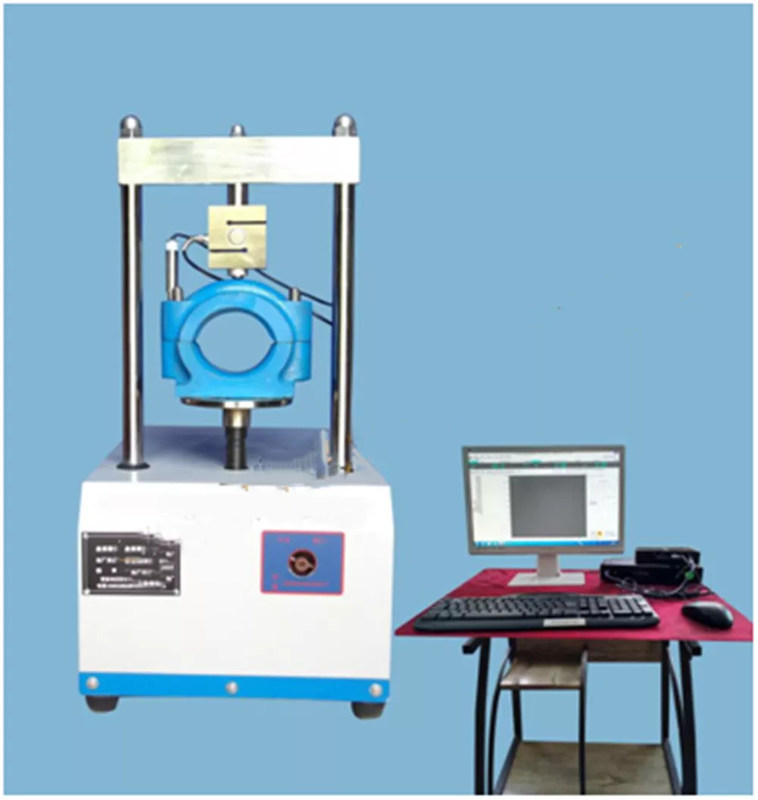

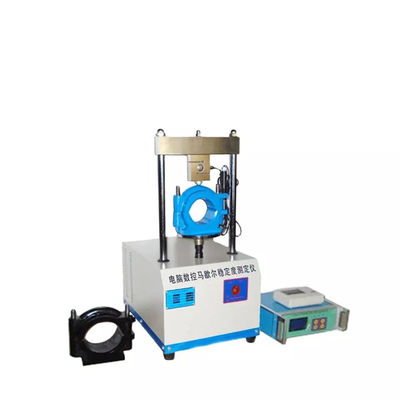

A62 50kn Automatic Bitumen Marshall Stability Testing Machine

Product Details:

Place of Origin:	China
Brand Name:	zealchon
Certification:	CE ISO
Model Number:	A062

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	$4200
Packaging Details:	wooden box
Delivery Time:	7days
Payment Terms:	L/C, D/P, T/T, Western Union
Supply Ability:	100sets/month

Contact Now

Detailed Product Description

Sample Size:	152.4mm ± 0.2mm, Distance Between Upper And Lower Indenters 19.05mm ± 0.1mm; Curvature Inner Diameter 101.6mm ± 0.08mm, Distance	Axial Load:	0 ~ 50kN ± F.S 0.5%
Axial Displacement Acquisition:	Built-in Displacement Sensor Range 0-15mm Accuracy: 0.01mm (4) Strain Speed: 0.001 ~ 50 Mm / Min	Stress Rate:	1N ~ 5000N / S. Constant Stress Can Be Set
Axial Stroke:	0 ~ 60mm, Can Be Set Ascending Distance

Product Description

A62 30kn Automatic Digital Standard Bitumen Marshall Stability Testing Machine

This model is used in Marshall stability test and immersed Marshall stability test to carry out asphalt mixture mix ratio design or asphalt pavement construction quality inspection. Water-immersed Marshall stability test (vacuum-saturated water Marshall test can also be performed as required) for checking the ability of the asphalt mixture to resist spalling when damaged by water. The possibility of designing the mixture ratio by testing its water stability.

It is used to determine the thermal stability and resistance to plastic deformation of asphalt mixtures-stability and flow value. Provide accurate basis for the design of asphalt mixture composition. It can realize the measurement of stability and flow value.

Specification

Technical Parameters
Parameter Names	Details
Sample size: curvature inner diameter	152.4mm ± 0.2mm, distance between upper and lower indenters 19.05mm ± 0.1mm; curvature inner diameter 101.6mm ± 0.08mm, distance between upper and lower indenters 19.05mm ± 0.1mm
Axial load	0 ~ 50kN ± F.S 0.5%
Axial displacement acquisition	built-in displacement sensor range 0-15mm accuracy: 0.01mm (4) Strain speed: 0.001 ~ 50 mm / min
Stress rate	1N ~ 5000N / S. Constant stress can be set
Axial stroke	0 ~ 60mm, can be set ascending distance

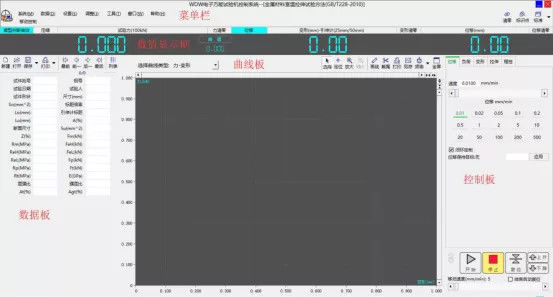

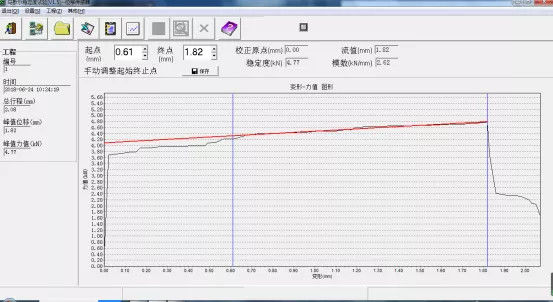

Computer software	real-time control of loading speed, force value, acquisition and storage of axial force value, displacement, and parallel graphics
Sample indenter calibration and sample loading and unloading device are randomly arranged
