Existent Gum Tester ASTM D381 Laboratory Instrument Existent Gum Content Tester in Aviation Gasoline

Existent Gum Tester ASTM D381 Laboratory Instrument Existent Gum Content Tester in Aviation Gasoline

    • Existent Gum Tester ASTM D381 Laboratory Instrument Existent Gum Content Tester in Aviation Gasoline
    • Existent Gum Tester ASTM D381 Laboratory Instrument Existent Gum Content Tester in Aviation Gasoline
  • Existent Gum Tester ASTM D381 Laboratory Instrument Existent Gum Content Tester in Aviation Gasoline

    Product Details:

    Place of Origin: China
    Brand Name: zealchon
    Certification: ISO
    Model Number: SYD-8019A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: $3500
    Packaging Details: wooden box
    Delivery Time: 7days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100sets/month
    Contact Now
    Detailed Product Description
    . Power Supply: AC(220±10%)V,50Hz . Total Power Consumption: 3500W
    . Dimension Of Evaporation Bath:: φ260mm×130mm Sample Positions:: 5 Positions
    . Dimension Of Sample Position:: : φ51mm×70mm

    Product Overviews

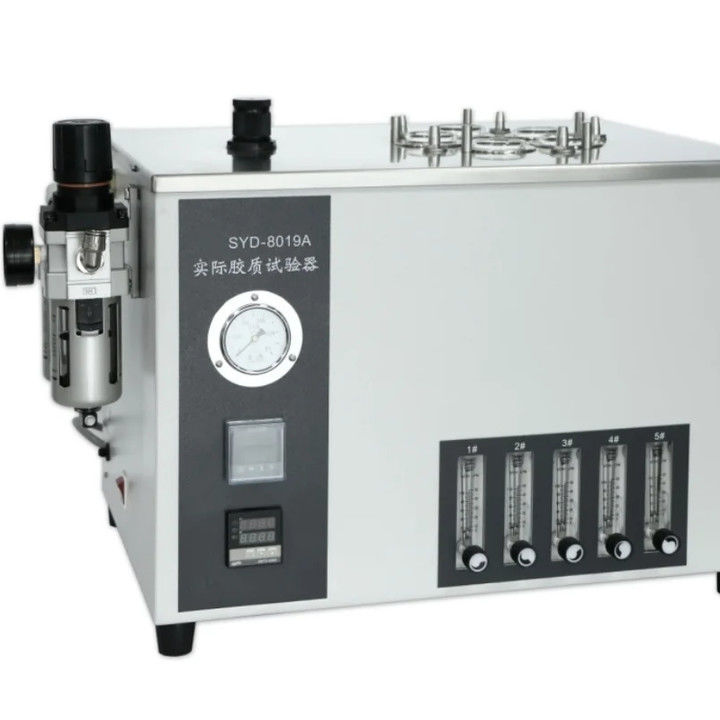

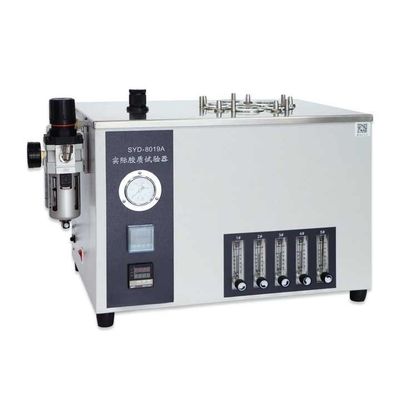

    SYD-8019A Existent Gum Tester

    Summary

    This instrument is designed and made as per standards GB/T 8019 Standard test method for gum content in fuels by jet evaporation and ASTM D381 Standard test method for gum content in fuels by jet evaporation. It is suitable to determine the existent gum content of aviation gasoline and motor gasoline(Not suitable to determine the existent gum content of aviation turbine fuel).



    Feature

    1. It equips a specially designed heating bath.The gas circuit is designed reasonably and the effect of evaporation is good.

    2. The material of working bench is stainless steel. It has 5 sample holes. Each jet flow can be adjusted and controlled by an independent flowmeter. It can do 1 ~ 4 determinations at the same time.

    3. The instrument is desktop structure. Simple design and easy to operate. It equips an air compressor to make it meet requirements of standard.

    4. Each test hole equips unique flowmeter. It can control the hot-air flow rate of each test hole correctly.

    5. The instrument is equipped with an oil-water separator to prevent oil gas and water vapor from entering the instrument.

    Specification
    Power supply AC(220±10%)V,50Hz±5%
    Total power consumption 3500W
    Dimension of evaporation bath φ260mm×130mm
    Sample positions 5 positions
    Dimension of sample position φ51mm×70mm
    Working temperature (160~165)℃
    Working pressure of reducing valve 0.07MPa
    Air flow rate of jet outlet 600mL/s for each hole
    Suitable environment

    ambient temp.:15℃~35

    RH:≤85%

    Overall dimension 590mm×480mm×340mmm(Thermometer holder is not included)
