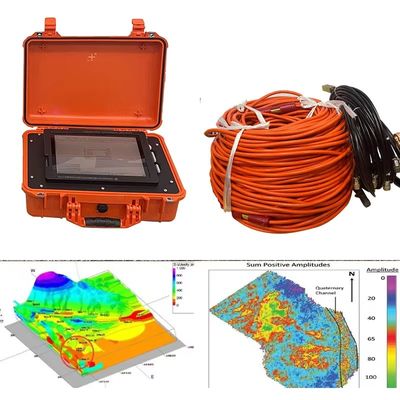

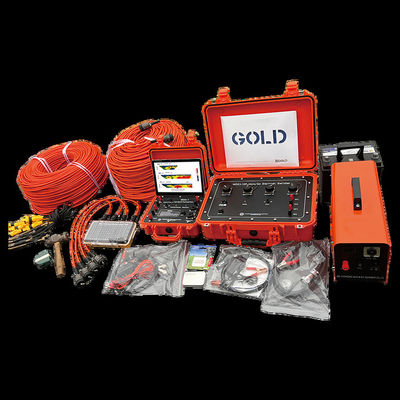

3D Electrical Resistivity Imaging Meter Vertical Electrical Tomography Survey Instrument Res & IP Meter

3D Electrical Resistivity Imaging Meter Vertical Electrical Tomography Survey Instrument Res & IP Meter

The model super high-density electric system represents a cutting-edge advancement in electronic technology. Developed utilizing state-of-the-art components like the Chinese Pocket PC, Bluetooth, 24-bit A/D conversion, and high-power control, it stands as a new generation system. Notably, this high-density electrical system achieves remarkable reductions in instrument volume and weight, surpassing current domestic and international standards. Its exceptional technical indicators and functions position it ahead of existing instruments in the industry. Moreover, its enhanced capabilities enable superior performance even in challenging and complex field environments.

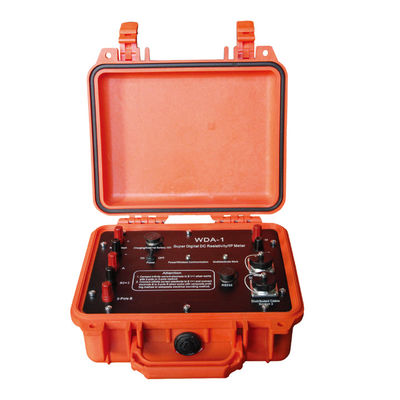

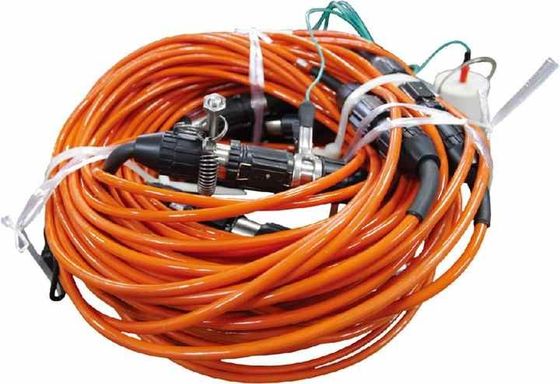

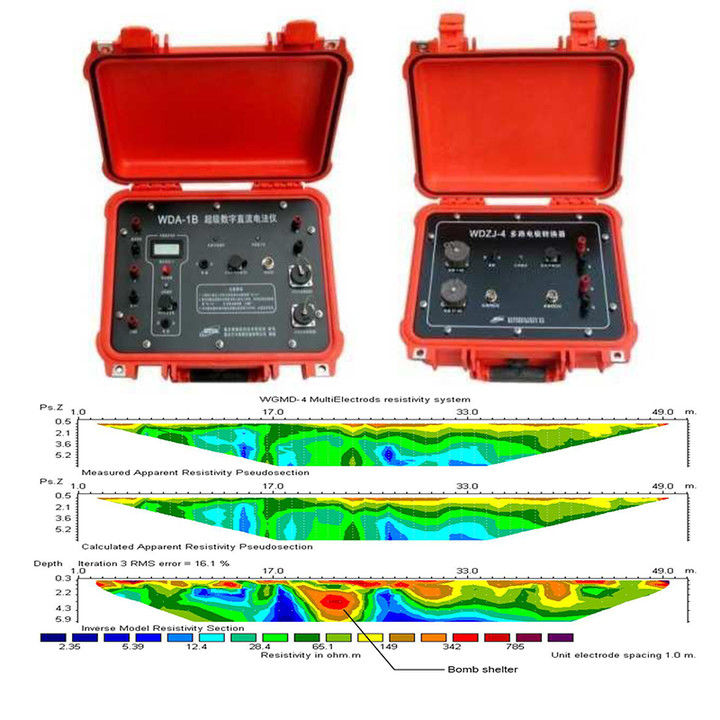

The entire system is controlled by the  super digital DC electric instrument, which can perform centralized multi-electrode survey cable and electrodes, as well as distributed 2D/ 3D multi-electrode resistivity survey and 2D multi-electrode Res & IP survey with distributed multi-electrode survey cable and electrodes.

Main Feature

• Advanced electronic technology: Utilizes the latest components like the Chinese Pocket PC, Bluetooth, 24-bit A/D conversion, and high-power control for improved reliability, efficiency, and accuracy.
• High-density design: Significantly reduces volume and weight compared to traditional instruments, enhancing portability and ease of use in the field.
• Leading technical indicators: Surpasses current domestic and international instruments in terms of sensitivity, accuracy, and resolution, enabling precise measurements and data analysis.
• Enhanced functionality: Offers advanced features such as real-time data visualization, customizable measurement parameters, automated data processing, and efficient data storage and retrieval.
• Adaptability to complex environments: Designed to withstand and excel in challenging field conditions, ensuring reliable operation and accurate results in demanding geological and environmental settings.

Application:

Underground water inspection	Energy resource prospecting	Mining and Mineral Exploration
Railway and bridge inspecting	Engineering geology	Geothermal field survey

Parameter:

Receiving part
