Product Description
ASTM D93 Automatic Pensky Martin Closed Cup Flash Point Tester
Features:
1,Using new high-speed digital signal processor , high precision and reliable ;
2,A host can control more than one test furnace at the same time for multiple sample test , saving test time ;
3,Detection, openings , ignition , alarm, cooling , print, throughout the experiment done automatically ;
4,Platinum electric wire, gas ignition ;
5,Atmospheric pressure automatic detection, automatic correction of the test results ;
6,Using the newly developed high-power high-frequency switching power supply heating technology, high heating efficiency , the use
of adaptive PID control algorithm automatically adjusts the heating curve ;
7,Temperature value automatically detect and stop the alarm;
8,Thermal mini printer , making print more beautiful and more efficient , with an offline print function ;
9,History with time stamp , store up to 255 ;
10, Centuries calendar clock with temperature compensation , accurate travel time , automatically record the date and time of
measurement , in the power-down state can run for more than 10 years ;
Parameter
Testing Range indoor temperature-400ºC
resolution 0.1ºC
Accuracy 0.50%
Temperature Probe Platinum resistance (PT100)
Power< 500W
Rate of Temperature Increase
conform to the standards such as gb, the United States, the European Union
Dimension
host: 190*260*285 (mm)
furnace: 280*260*285(mm)
Weight18kg

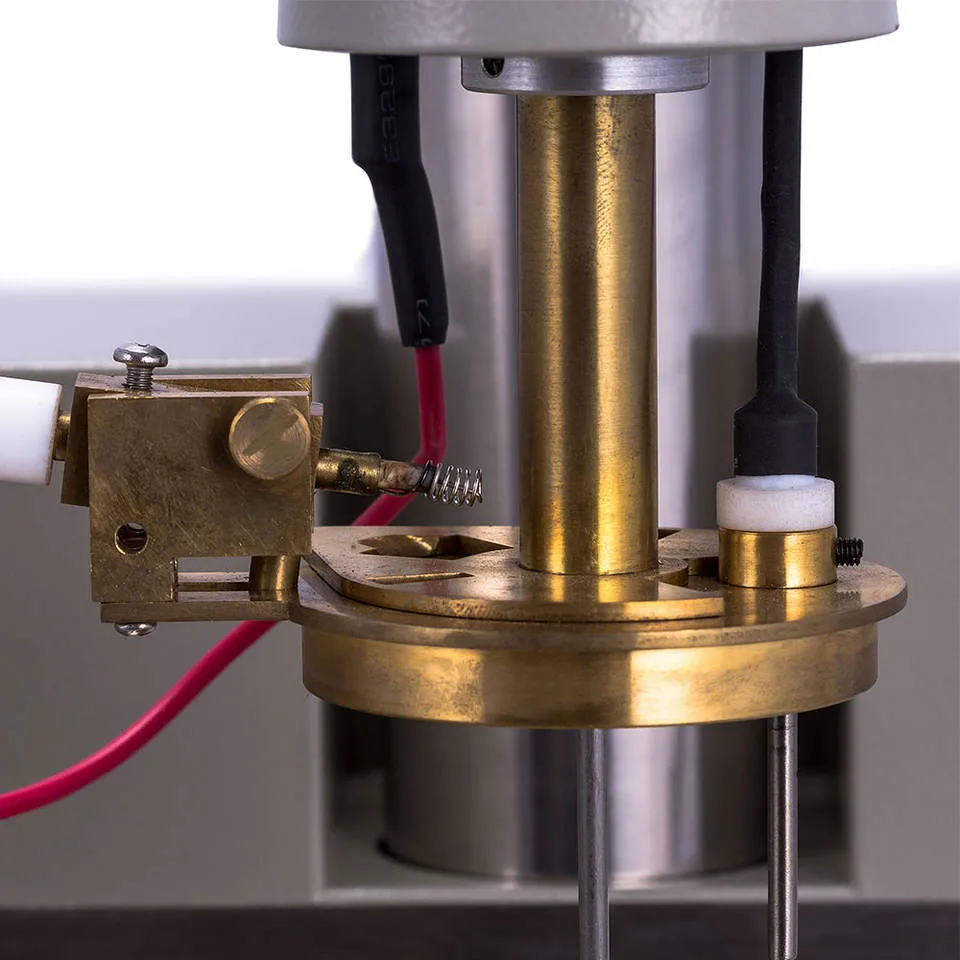

Detailed Photos
Product Parameters
|
item
|
value
|
|
Warranty
|
1 year
|
|
Certification
|
ISO
|
|
Customized support
|
OEM
|
|
Place of Origin
|
China
|
|
|
Shaanxi
|
|
Brand Name
|
ZEALCHON
|
|
Model Number
|
A009
|
|
Power
|
Other
|
|
Brand Name
|
Zeachon
|
|
heating power
|
400w
|
|
tank capability
|
5L
|
|
Certificate
|
ISO
|
|
Standard
|
BS.EN.ASTM
|
|
Warranty
|
1 Year
|
|
Product name
|
Closed cup flash point tester
|
|
Power supply
|
220V 50Hz
|
|
Weight
|
50kg
|
|
Testing Range
|
indoor temperature-400ºC
|
|
Temperature Probe
|
Platinum resistance (PT100)
|
|
Power
|
< 500W
|
Packaging & Shipping
After Sales Service
Lab display
