C057 Soft Rock Direct Shear Rheometer

C057 Soft Rock Direct Shear Rheometer

C057 Soft Rock Direct Shear Rheometer

Product Details:

Place of Origin: China
Brand Name: zealchon
Certification: ISO
Model Number: C057

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $13000
Packaging Details: wooden box
Delivery Time: 7days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100sets/month
Contact Now
Detailed Product Description
Shearing. Large Load: 5000N±10N Normal Direction: Large Load: 5000N±10N
Cutting Stroke:: 60mm Normal Stroke:: 80mm
Vertical Deformation: 0~10mm

Product Description

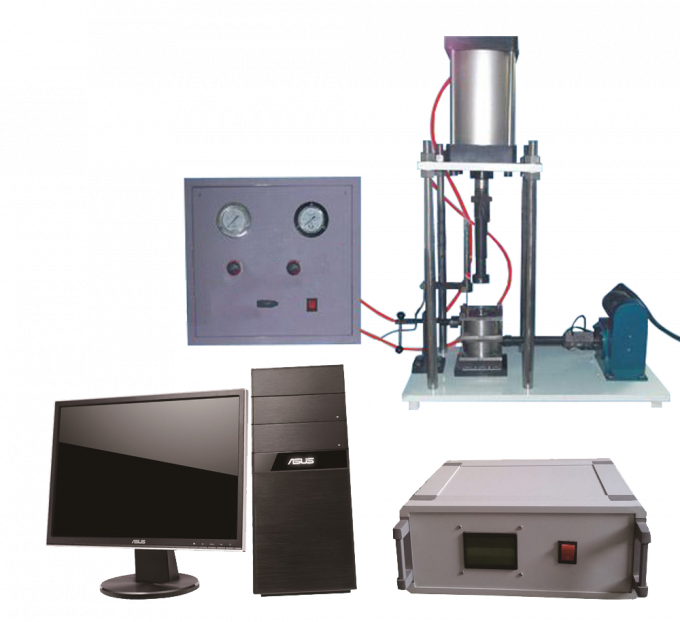

C057 Soft Rock Direct Shear Rheometer
Specification
C057 Soft Rock Direct Shear Rheometer


The new test instrument for coal and soft rock mechanical properties developed and produced by our company is to horizontally shear a group of coal and soft rock specimens of the same type under different normal loads, and determine the coal and soft rock according to the expression of Coulomb's law. Shear strength parameters for soft rock. It is suitable for the direct shear test of coal, soft rock structural surface (such as joint surface, bedding surface, schistospheric surface, splitting surface, etc.), coal, soft rock itself, or the cemented surface of mortar and soft rock. The instrument is suitable for the shear strength test of soft rock and cementitious materials cut into regular shapes of cylinders and cubes.

1. Loading method: pneumatic and servo motor 2. Shearing. Large load: 5000N±10N 3. Normal direction. Large load: 5000N±10N 4. Cutting stroke: 60mm 5. Normal stroke: 80mm 6. Applicable sample size: this instrument is only suitable for cylindrical specimens and cube specimens Diameter: 100mm×100mm; 50mm×50mm; 25mm×25mm Side length: 100mm×100mm; 50mm×50mm; (optional) 7. Vertical deformation: 0~10mm, precision 0.01mm 8. Shear deformation: 0~20mm, precision 0.01mm 9. Shearing speed: 0.01~10mm/min can be adjusted arbitrarily 10. Normal loading: the air pressure is constant and the loading is set according to the sample area 11. Normal servo air source: 0.8MPa 12. 220V 2.5KW 50Hz 13. Measure shear rheology (creep) with constant shear force

C057 Soft Rock Direct Shear Rheometer
item
value
Warranty
1 Year
Customized support
OEM
Place of Origin
China

Shaanxi
Brand Name
ZEALCHON
Model Number
C057
Power
Hydraulic
Loading method
pneumatic and servo motor
Shearing. Large load
5000N±10N
Normal direction. Large loa
5000N±10N
Cutting stroke
60mm
Normal stroke
80mm
Packing & Delivery
C057 Soft Rock Direct Shear Rheometer
Wooden Box
