Product Description
A079 Laboratory Automatic Bitumen Mixtures Wheel Tracking Device Wheel Rutting Tester
Application:
This product measured asphalt mixture high temperatures rutting resistance, calculation of asphalt mixture dynamic stability. That is at specified temperature and load conditions, the deformation rate rubber wheel ruts formed by walking back and forth, the number of walking every 1mm deformation generates representation, can also be used for testing high temperature stability of asphalt mixture at the construction site test. Can test two specimen for rutting test at the same time, Convenient user-friendly design: Auto rise or put down trials rubber tire.
According to AASHTO T 324-2004 standard method of test for wheel-track testing of compacted hot-mix asphalt and Bituminous Mixtures
This product measured asphalt mixture high temperatures rutting resistance, calculation of asphalt mixture dynamic stability. That is at specified temperature and load conditions, the deformation rate rubber wheel ruts formed by walking back and forth, the number of walking every 1mm deformation generates representation, can also be used for testing high temperature stability of asphalt mixture at the construction site test. Can test two specimen for rutting test at the same time, Convenient user-friendly design: Auto rise or put down trials rubber tire.

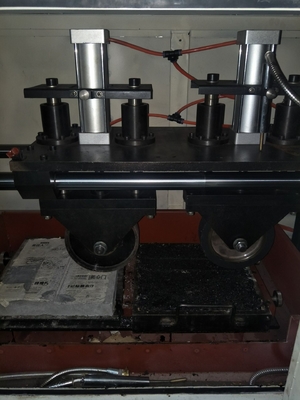

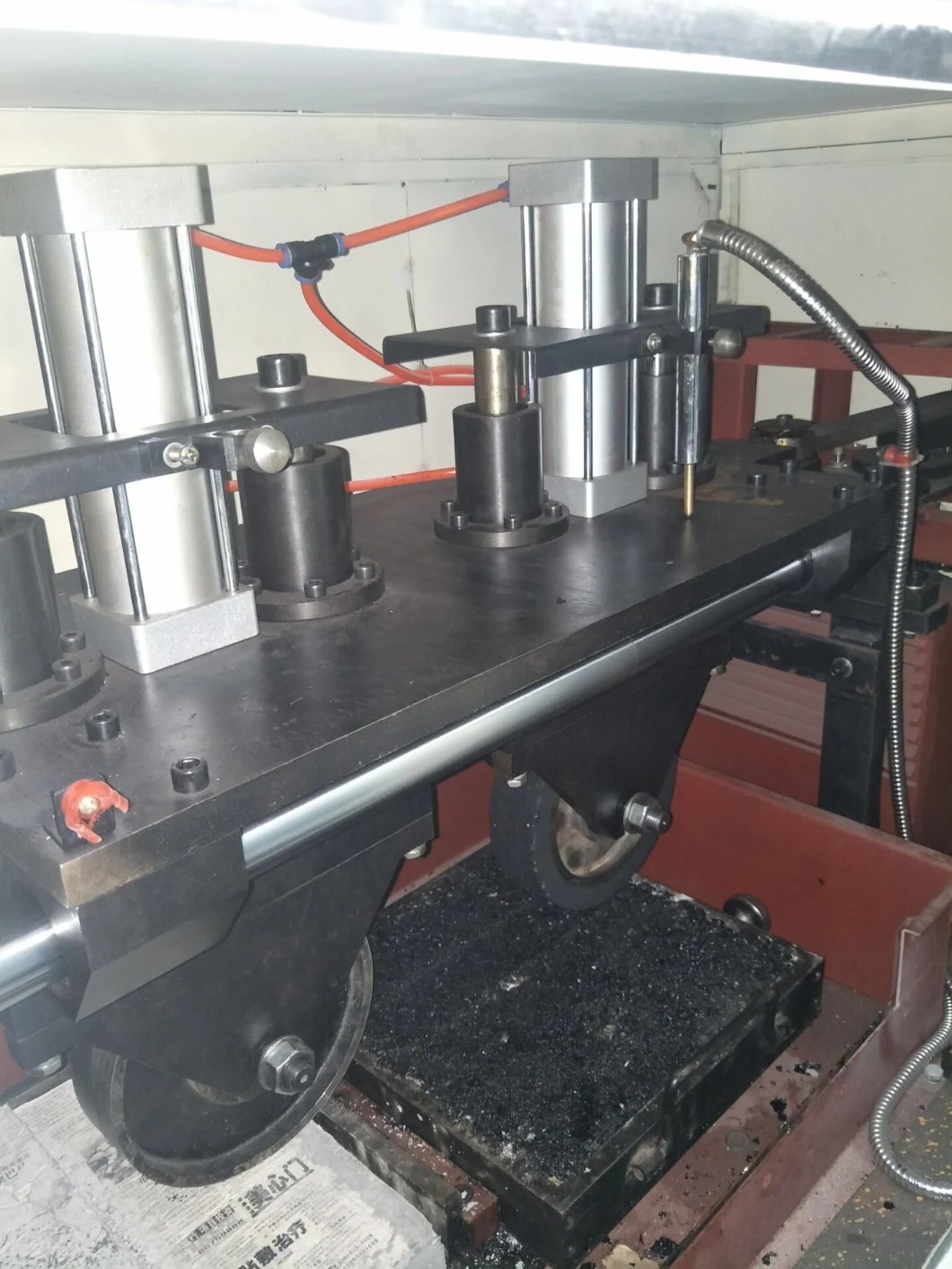

Detailed Photos
Product Parameters
|
item
|
value
|
|
Warranty
|
1 year
|
|
Certification
|
ISO
|
|
Customized support
|
OEM
|
|
Place of Origin
|
China
|
|
|
Shaanxi
|
|
Brand Name
|
Zealchon
|
|
Model Number
|
a079
|
|
Power
|
Electronic
|
|
Temperature control range
|
30 ºC ~ 80 ºC
|
|
Thermostatic chamber Trials temperature
|
60 ºC ± 1 ºC
|
|
Displacement detection range
|
0 ~ 30mm
|
|
deformation detection resolution
|
0.001mm
|
|
Warranty
|
1 Year
|
|
Power supply
|
220V 50Hz
|
|
Sample size
|
280 x 340 mm 300 x 300 mm
|
|
Sample height
|
40-100 mm
|
|
Test load
|
up to 705 N
|
|
Measuring range of wheel track
|
0-20 mm , 0.1 mm accuracy
|
|
Test modes
|
Wet, Wet heat, Dry and Dry heat computer controlled for fully automatic operation incl
|
Packaging & Shipping
Company Profile
Xi 'an Zealchon electronic technology co., LTD, located in new technology industry development zone in Xi'an, an ancient city in China. It covers an area of 7500 square meters of building area. Zealchen specialize in civil engineering research and experimental apparatus; another is the semiconductor laser research and development.On one hand, currently based on civil experimental instrument research, the research team is founded by the personnel who come from Chang 'an university, Xi 'an polytechnic university, Xi 'an petroleum university, which has the top technology in this expertise. In addition, its research and development has accomplished a series of leading domestic and international standards, first-class technology of asphalt and asphalt mixture, road, bridge deck, geotechnical, structural testing instruments, even more, some of the products fill the blank of similar equipment at home and abroad, won national, ministerial, provincial awards.
Our technical support team, marketing, and web development teams make their homes in china as well, and are dedicated to providing comprehensive customer support and services.
After Sales Service
Factory visiting
Lab display
1. who are we?
We are based in Shaanxi, China, start from 2014,sell to Eastern Asia(30.00%),South Asia(30.00%),Mid East(15.00%),Western Europe(15.00%),Southern Europe(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Bitumen Testing,Material Testing,Aggregate Testing Machine,Soil Testing,Laboratory machine
4. why should you buy from us not from other suppliers?
We have 20 years of experience in design research and development, with the guidance of professors and researchers from the Well-known institutions in China,developed a series of leading domestic detecting instrument and laser products.
