Digital Display UTM 2000KN Hydraulic Universal Testing Machine

Product Details:

Place of Origin:	China
Brand Name:	zealchon
Certification:	ISO CE
Model Number:	WEW-100D

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$13000
Packaging Details:	wooden box
Delivery Time:	7days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100sets/month

Contact Now

Detailed Product Description

Structure:	Four Column Two Ball Screw	Max. Load (kN):	100
Test Force Resolution Value(kN):	0.01	Mas Piston Moving Speed (mm/min):	50

Product Description

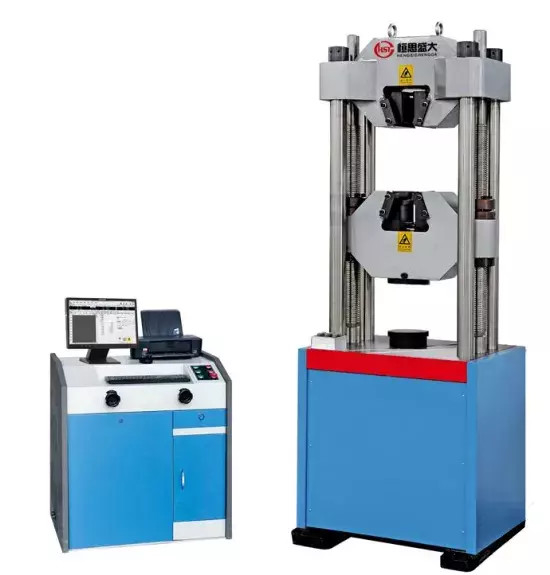

Digital Display UTM 2000KN Hydraulic Universal Testing Machine

Application

It is suitable for tension, compression, bending, shearing, peeling, tearing and other tests by adding different test fixture for metal and nonmetal materials. It is widely used in inspection department, engineering area, laboratories, universities and institutes for material properties research and quality control.

Digital Display UTM 2000KN Hydraulic Universal Testing Machine

Standards

ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards

Model	WEW-100D	WEW-300D	WEW-600D	WEW-1000D	WEW-2000D
structure	Four column Two ball screw
Control mode	Loading process manual control,computer automatic data dealing
Max. Load (kN)	100	300	600	1000	2000
Load range	2%~100%FS
Force resolution	1/300000
Load accuracy	≤±1%
Test force resolution value(kN)	0.01
Deformation Measurement Range	2% ~ 100% of extensometer measurement range
Deformation indication error	± 1%of indicating value
Deformation resolution (mm)	0.001
Displacement Indication Error	1%of indicating value
Displacement Resolution(mm)	0.01
Clamping Method	Hydraulic clamping
Mas piston moving speed (mm/min)	50
Gantry adjust speed(mm/min)	150
Max piston stoke (mm)	250
Max. Tensile Test Space(mm)	650
Max.Compression Test Space(mm)	500
Round Sample Clamping Diameter(mm)	Φ10-Φ20 Φ20-Φ32	Φ10-Φ20 Φ20-Φ32	Φ13-Φ26 Φ26-Φ40	Φ13-Φ26 Φ26-Φ40	Φ20-Φ80
Flat Sample Clamping Diameter(mm)	0-15	0-15	0-15	0-30	0-30
Clamping width of flat sample(mm)	70	70	75	75
Pressure Plate Size	Φ160/204x204(optional)
Bending Test Branch Roller Width(mm)	140
Roller distance of bending(mm)	600
Voltage	380V/50Hz/3Phase(can be customized)
