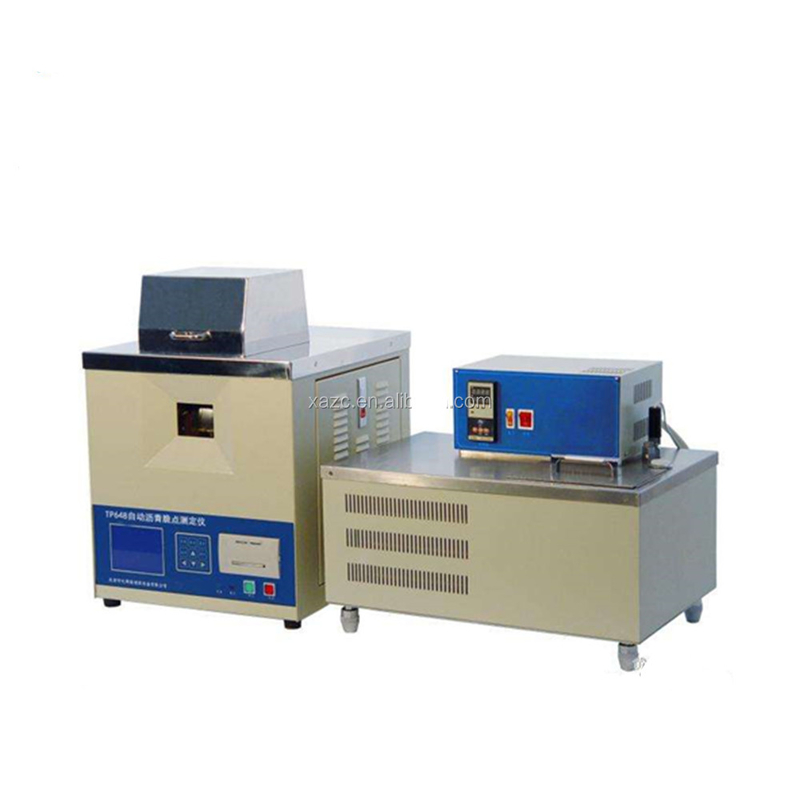

A94-A Automatic Asphalt Breaking Point Test Device

A94-A Automatic Asphalt Breaking Point Test Device

A94-A Automatic Asphalt Breaking Point Test Device

Product Details:

Place of Origin: China
Brand Name: zealchon
Certification: ISO CE
Model Number: A94-A

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: $4500
Packaging Details: wooden box
Delivery Time: 7days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100sets/month
Contact Now
Detailed Product Description
Power Supply: AC (220 ± 10%) V, 50Hz Cooling Method: Temperature Cycling Bath
Cooling Rate: (1 ± 0.5) °C / Min Temperature Range: -30 °C ~ 25 °C
Measurement Error: ± 0.5 °C

Product Description



A94-A Automatic Asphalt Breaking Point Test Device





Main Technical Indicators
Parameter Names Details
1 Power supply: AC (220 ± 10%) V, 50Hz;
2, Cooling method: Temperature cycling bath;
3, Cooling rate: (1 ± 0.5) °C / min;
4, Temperature range: -30 °C ~ 25 °C;
5, Measurement error: ± 0.5 °C;
6, Ssample steel size: 41 mm × 20 mm × 0.15mm (length × width × thickness);
7, Quantity of samples: Test three samples simultaneously;
8, Temperature: Room temperature ~ +30 °C;
9, Relative humidity: ≤ 85%;
10 Power consumption: 450W (brittle point tester) + 1600W (low temperature circulating bath).
11 Boundary Dimensions: 500 mm × 400 mm × 570 mm (brittle point tester length × width × height).





A94-A Automatic Asphalt Breaking Point Test Device







Lab Display

A94-A Automatic Asphalt Breaking Point Test Device



A94-A Automatic Asphalt Breaking Point Test Device

Packing and Shipping

A94-A Automatic Asphalt Breaking Point Test Device



A94-A Automatic Asphalt Breaking Point Test Device





Certifications

A94-A Automatic Asphalt Breaking Point Test Device





A94-A Automatic Asphalt Breaking Point Test Device
