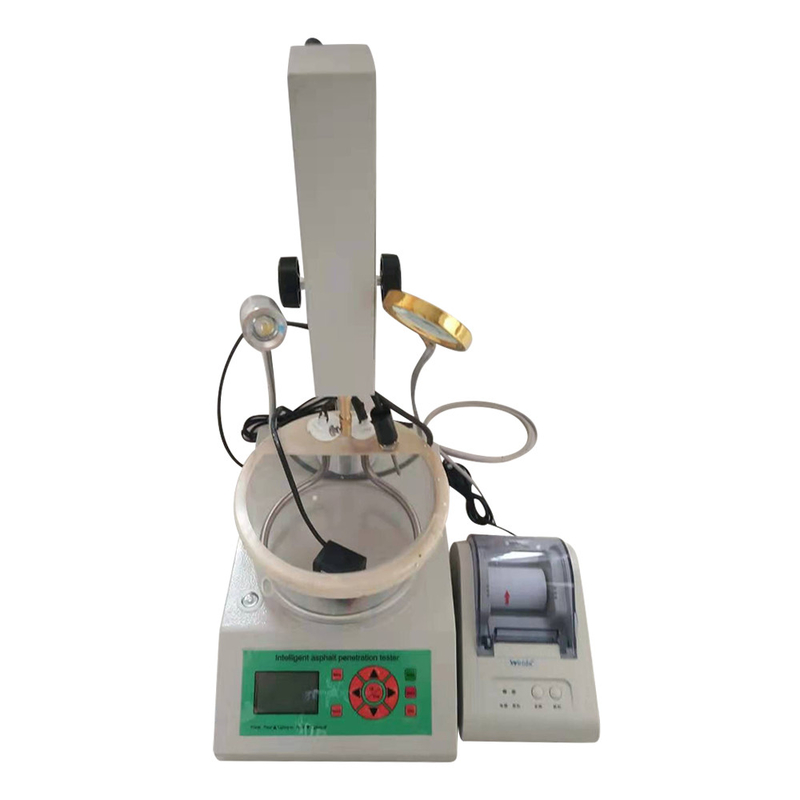

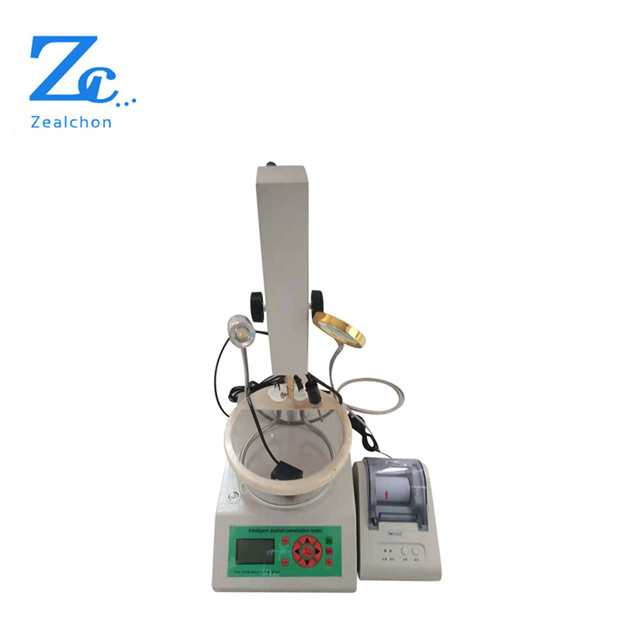

A001 Fully automatic bitumen needles penetration test

A001 Fully automatic bitumen needles penetration test

    • A001 Fully automatic bitumen needles penetration test
    • A001 Fully automatic bitumen needles penetration test
  • A001 Fully automatic bitumen needles penetration test

    Product Details:

    Place of Origin: China
    Brand Name: zealchon
    Certification: ISO CE
    Model Number: A001

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: $1000
    Packaging Details: wooden box
    Delivery Time: 7days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100sets/month
    Contact Now
    Detailed Product Description
    Measurement Range:: 0~600 Penetrations Resolution: 0.01 Mm
    Time Control:: It Can Select 5 S Or 60 S; Timing Error Is Less Than ±0.1 S; Heating Power Of Heater: 200 W
    Temperature Controlling Accuracy: 25±0.1 ℃ (note: The Ambient Temperature Should Not Be Higher Than 20 ℃) Constant Temperature Bath: It Is A Harden Glass Cylinder

    Product Description
    A001 Fully automatic bitumen needles penetration test
    Specification
    A001 Fully automatic bitumen penetrometer

    The instrument is designed and made as per the National Standard of People’s Republic of China GB/T4509 “Test Methods for Needle Penetration of Petroleum Asphalt”, and T0604 “Asphalt Needle Penetration Test” in the Industry Standard of People’s Republic of China JTJ052 Specification and Test Methods of Bitumen and Bituminous Mixture for Highway Engineering.

    It is suitable to make needle penetration determination for highway asphalt, modified asphalt, as well as residue of liquid
    petroleum asphalt or emulsified asphalt after evaporation. It can also be used to inspect solid granule, powder, colloid, freezing substance, as well as food materials like cheese, glycine, butter, ice cream, cream, and fermentation substance, etc. It has been widely used in the field of food industry, highway construction, and other industry departments.


    I. Main technical specification and parameters
    1. Measurement range: 0~600 penetrations;
    2. Resolution: 0.01 mm;
    3. Time control: it can select 5 s or 60 s; timing error is less than ±0.1 s;
    4. Heating power of heater: 200 W;
    5. Temperature controlling accuracy: 25±0.1 ℃ (note: the ambient temperature should not be higher than 20 ℃);
    6. Temperature controlling mode: by a high precision digital temperature controller;
    7. Constant temperature bath: It is a harden glass cylinder;
    8. Stirring: It is stirred by a magnetic stirring bead (stirring wheel);
    9. Standard needle: 2.5 g±0.05 g; as per the requirements of GB/T4509, and T0604;
    10. Up and down assembly: It has function of coarse adjustment and fine adjustment. It is convenient to let the needle tip just
    touch the sample surface.
    11. Power supply: AC 220V±10%, 50 Hz;
    12. Others: It is equipped with cold light source and magnifier, so it is convenient to be operated.
    item
    value
    Warranty
    1 year
    Certification
    ISO
    Customized support
    OEM
    Place of Origin
    China

    Shaanxi
    Brand Name
    Zealchon
    Model Number
    A001
    Power
    Electronic
    Measurement range
    0~600 penetrations
    Time control
    it can select 5 s or 60 s
    Heating power of heater
    200 W
    Standard needle
    2.5 g±0.05 g
    Product name
    Fully automatic bitumen penetrometer
    Application
    Asphalt
    Power supply
    220V 50Hz
