A001 Automatic Asphalt Penetrometer to perform penetration tests of bitumen and bituminous materials

A001 Automatic Asphalt Penetrometer to perform penetration tests of bitumen and bituminous materials

    • A001 Automatic Asphalt Penetrometer to perform penetration tests of bitumen and bituminous materials
    • A001 Automatic Asphalt Penetrometer to perform penetration tests of bitumen and bituminous materials
  • A001 Automatic Asphalt Penetrometer to perform penetration tests of bitumen and bituminous materials

    Product Details:

    Place of Origin: China
    Brand Name: zealchon
    Certification: ISO
    Model Number: A001

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: $1000
    Packaging Details: wooden box
    Delivery Time: 7days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100sets/month
    Contact Now
    Detailed Product Description
    Measurement Range: : 0~600 Penetrations . Resolution:: 0.01 Mm
    Time Control: It Can Select 5 S Or 60 S Heating Power Of Heater:: 200 W
    Temperature Controlling Accuracy: 25±0.1 ℃ (note: The Ambient Temperature Should Not Be Higher Than 20 ℃)

    Product Description

    A001 Automatic Asphalt Penetrometer to perform penetration tests of bitumen and bituminous materials





    A001 Automatic Asphalt Penetrometer to perform penetration tests of bitumen and bituminous materials





    The instrument is designed and made as per the National Standard of People’s Republic of China GB/T4509 “Test Methods for Needle Penetration of Petroleum Asphalt”, and T0604 “Asphalt Needle Penetration Test” in the Industry Standard of People’s Republic of China JTJ052 Specification and Test Methods of Bitumen and Bituminous Mixture for Highway Engineering.
    It is suitable to make needle penetration determination for highway asphalt, modified asphalt, as well as residue of liquid petroleum asphalt or emulsified asphalt after evaporation. It can also be used to inspect solid granule, powder, colloid, freezing substance, as well as food materials like cheese, glycine, butter, ice cream, cream, and fermentation substance, etc. It has been widely used in the field of food industry, highway construction, and other industry departments.







    specification:



    I. Main technical specification and parameters
    1. Measurement range: 0~600 penetrations;
    2. Resolution: 0.01 mm;
    3. Time control: it can select 5 s or 60 s; timing error is less than ±0.1 s;
    4. Heating power of heater: 200 W;
    5. Temperature controlling accuracy: 25±0.1 ℃ (note: the ambient temperature should not be higher than 20 ℃);
    6. Temperature controlling mode: by a high precision digital temperature controller;
    7. Constant temperature bath: It is a harden glass cylinder;
    8. Stirring: It is stirred by a magnetic stirring bead (stirring wheel);
    9. Standard needle: 2.5 g±0.05 g; as per the requirements of GB/T4509, and T0604;
    10. Up and down assembly: It has function of coarse adjustment and fine adjustment. It is convenient to let the needle tip just touch the sample surface.
    11. Power supply: AC 220V±10%, 50 Hz;
    12. Others: It is equipped with cold light source and magnifier, so it is convenient to be operated.

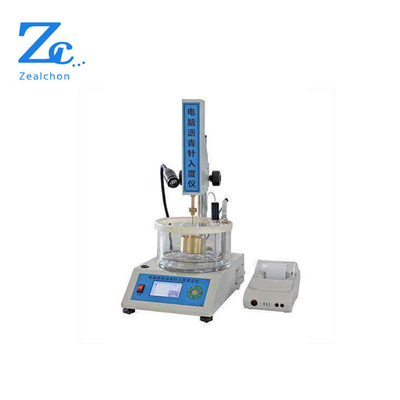

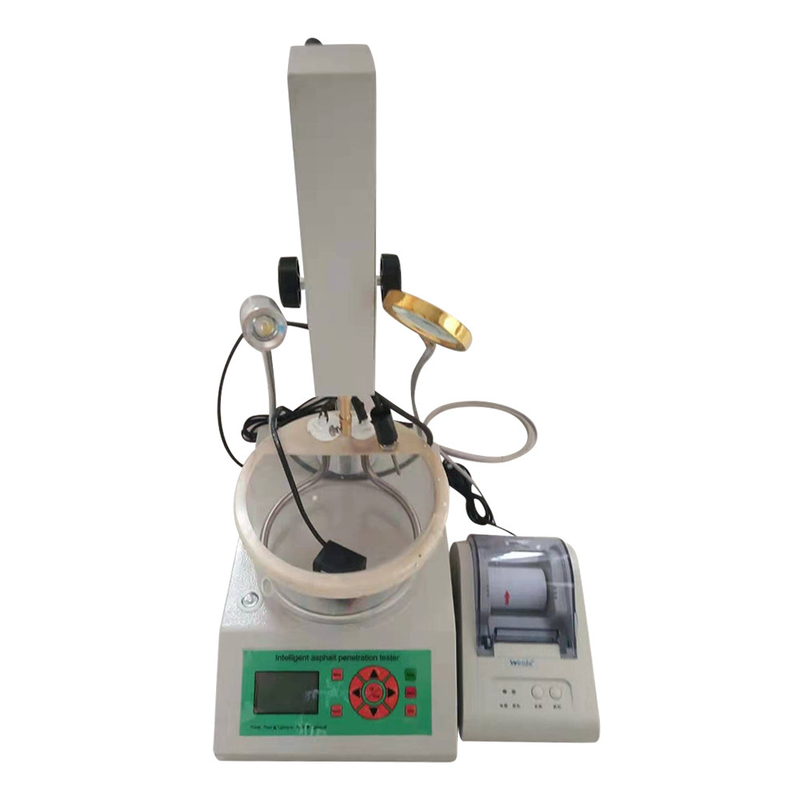

    Detailed Images

    A001 Automatic Asphalt Penetrometer to perform penetration tests of bitumen and bituminous materials A001 Automatic Asphalt Penetrometer to perform penetration tests of bitumen and bituminous materials





    Lab Display

    A001 Automatic Asphalt Penetrometer to perform penetration tests of bitumen and bituminous materials



    A001 Automatic Asphalt Penetrometer to perform penetration tests of bitumen and bituminous materials

    Trade Shows

    A001 Automatic Asphalt Penetrometer to perform penetration tests of bitumen and bituminous materials





    A001 Automatic Asphalt Penetrometer to perform penetration tests of bitumen and bituminous materials

    Packing and Shipping

    A001 Automatic Asphalt Penetrometer to perform penetration tests of bitumen and bituminous materials



    A001 Automatic Asphalt Penetrometer to perform penetration tests of bitumen and bituminous materials





    After-Sales Service

    A001 Automatic Asphalt Penetrometer to perform penetration tests of bitumen and bituminous materials



    A001 Automatic Asphalt Penetrometer to perform penetration tests of bitumen and bituminous materials

    Contact Us

    A001 Automatic Asphalt Penetrometer to perform penetration tests of bitumen and bituminous materials





    A001 Automatic Asphalt Penetrometer to perform penetration tests of bitumen and bituminous materials

    Service:







    1. Warranty 1 year of replacement and return.





    2, Providing factory visit and study, technical training





    3, 24-hour technical support by e-mail or phone





    4, Providing laboratory construction program design guidelines





    5, Providing product design and OEM service
