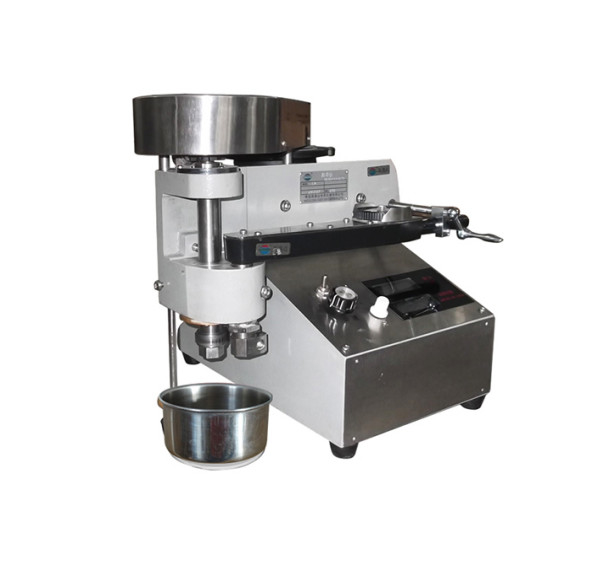

EP-2 Automatic Display Lab Lubricity Tester for Drilling Fluid
In drilling well, friction produced by side well to drilling pipe rotating is called torque and
friction produced in the process is called resistance. To reduce resistance and torque, improve its lubricating property, many different materials of additives are added in drilling fluid to make its lubricating best effects. Lubricating property of
drilling fluid is very important property in directional drilling well. To achieve the goal of improving the lubricating of
drilling fluid, lubricating additive not only makes borehole structured, but also is non-toxic, bio-degradable and will not
produce oil micro suspended. Drilling machine can’t evaluate various additives’type and quality, so lubricant is designed to test lubricating of drilling fluid.
Lubricity tester EP-B is used for the lubrication quality that measures an artesian well liquid, for
evaluation may type and amount of lubrication additive that need to be used provide a data.For ensure quickly, safety, availably the artesian well provides an accurate and dependable data.It main all of zero partseses adopt American home component, its function index sign and"OFI" in the United States together type the lubrication instrument is consistent.
Rated Frequency 220V±10%V 50/60Hz
Power 375W
Speed range 30~550r/min Stepless speed
Lubrication coefficient 33~37(distilled water)
Outline Dimension 500×380×380mm
