Place of Origin: | China |
Brand Name: | zealchon |
Certification: | ISO |
Model Number: | A114 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | $7500 |
Packaging Details: | wooden box |
Delivery Time: | 7days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 100sets/month |
Studio Dimension: | 350 * W 440 * H 330 Mm | Power: Operating Voltage: | 380 ± 10 V |
---|---|---|---|
Balance Scale: | 10Kg | Maximum Combustion Temperature: | 800 ℃ |
Maximum Of Sample Weight: | 3500g |

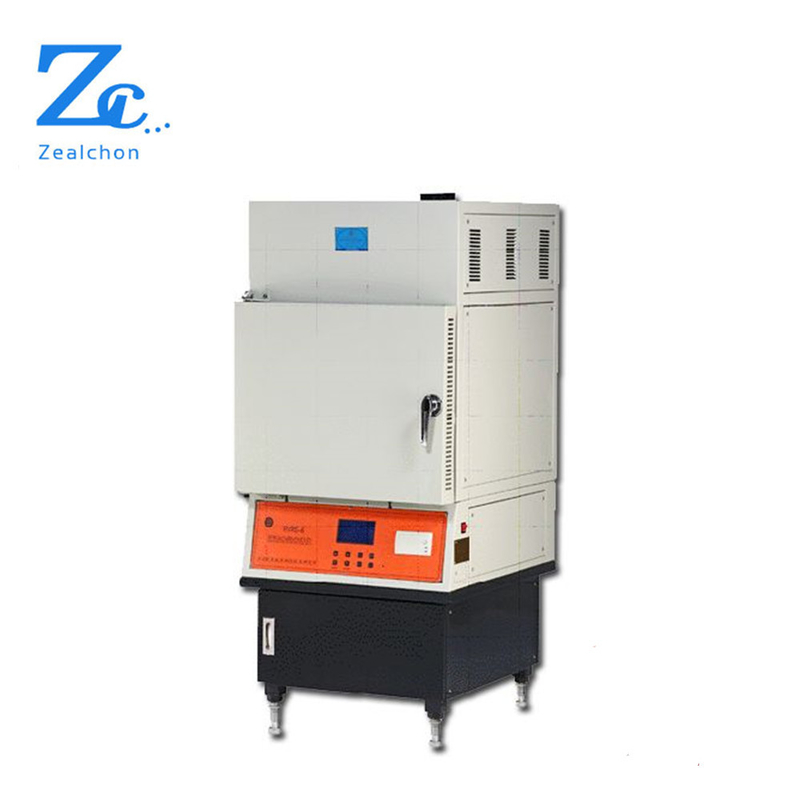

A114 Combustion Asphalt Content Analyzer or Asphalt Burning Tester with ASTMD6307
Technical parameters:
1 Studio Dimension: 350 * W 440 * H 330 mm
2 Power: Operating voltage 380 ± 10 V (requires three-phase star connection), current less than 20A
(3) balance scale: 10Kg; Division value: 0.1g
4 maximum combustion temperature:. 800 ℃. Heating power 7kW
5 Maximum of sample weight: 3500g; recommended sample weight 1000 ~ 1500g
6 Test stability factor: 0.1%
7 SCM measurement and control: The control panel settings on the front of the device, the operator can set the touch key test parameters and test operation. Trials when display real-time display of test parameters and test data, automatically formed after the end of the test print documents, the printer automatically print test report.
Application:
HYRS-6-type combustion method asphalt content tester meets U.S. standards ASTM D6307-98 and AASHTO T308-99 technical requirement, can test the asphalt content quickly, accurately and safely reliably. Meet requirements of mixing station large quantities and continuous production and highways supervision inspection, thus ensuring the quality of road construction.
