Place of Origin: | China |
Brand Name: | zealchon |
Certification: | ISO CE |
Model Number: | A21 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | $2700 |
Packaging Details: | wooden box |
Delivery Time: | 7days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 100sets/month |
Measuring Range: | 100mPa.s ~ 200000mPa. S | Rotor Size: | 27 # Rotor (21 #, 28 #, 29 # Rotor Is Optional) |
---|---|---|---|
Rotor Speed: | 5 R/ Min, 10 R/ Min, 20 R / Min, 50 R/ Min | Measuring Modes: | Manual, Automatic |
Temperature Range: | RT +20 °C ~ 200 °C | Power Supply: | Voltage 220V ± 10V, Frequency 50Hz ± 10Hz |

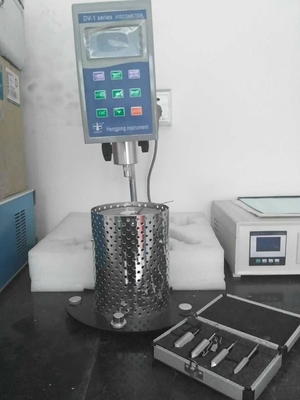

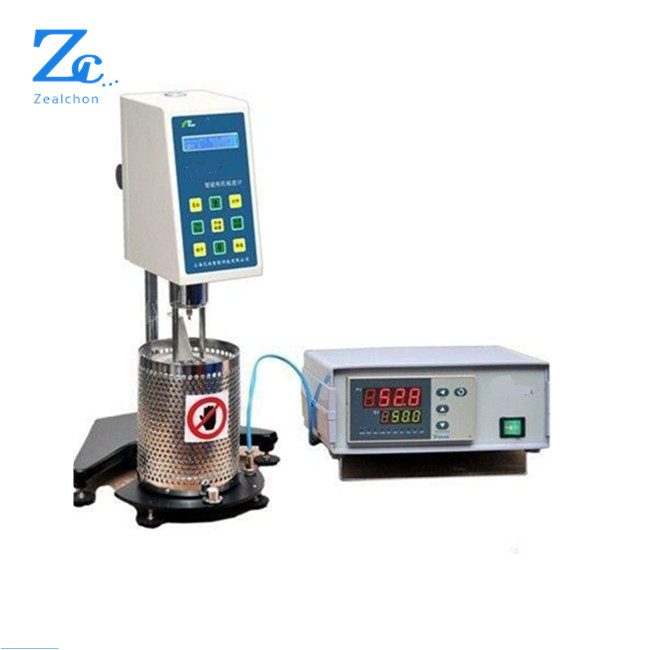

A21 Digital aphalt brookfield rotating viscometer
Using rotary process to test the apparent viscosity of asphalt road in the temperature range above 45 °C, by milli-Pascal seconds (MPa. s). According to the measurement results, we can find out the recommended mixing and compaction construction temperatures.
Main Technical Indicators | |
Parameter Names | Details |
Measuring range | 100mPa.s ~ 200000mPa. S |
Rotor Size | 27 # rotor (21 #, 28 #, 29 # rotor is optional) |
Rotor Speed | 5 r/ min, 10 r/ min, 20 r / min, 50 r/ min |
Measuring modes | Manual, automatic |
measurement error | ± 3% F.S |
Temperature range | RT +20 °C ~ 200 °C |
Temperature accuracy | ± 0.1 °C |
Power supply | Voltage 220V ± 10V, frequency 50Hz ± 10Hz |
Net weight | 2.5 kg (not including the base form at the top) |
Boudary Dimensions | 105mm × 120mm × 160mm (Do not include the base) |
Service:
1. Warranty 1 year of replacement and return.
1, Providing factory visit and study, technical training
2, 24-hour technical support by e-mail or phone
3, Providing laboratory construction program design guidelines
4, Providing product design and OEM service
