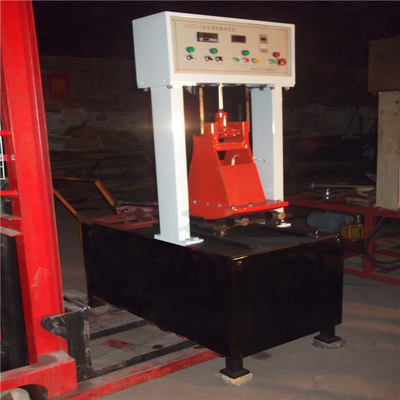

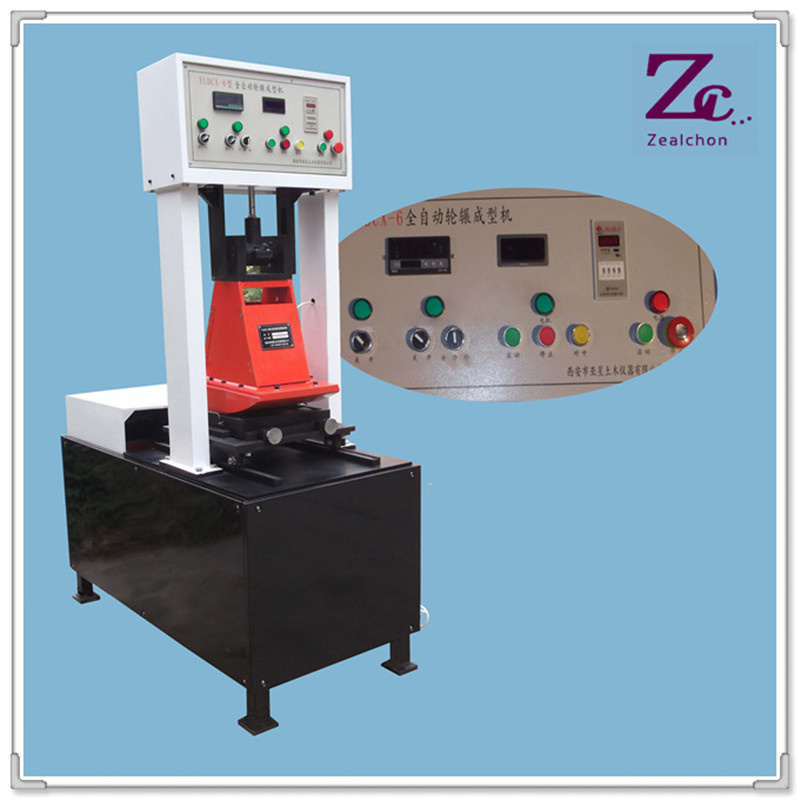

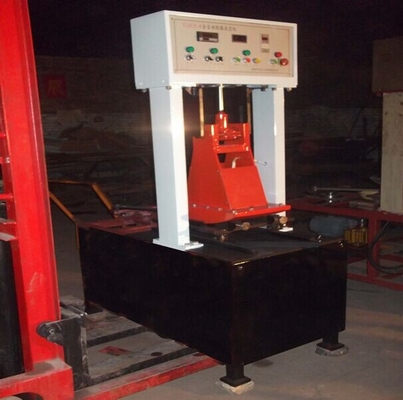

A078 Hydraulic Roller Compactor Apparatus For Asphalt Mixture Specimen
Description
This machine is used to make asphalt mixture specimen in laboratory by wheel-rolling method, the made specimen can be used in rutting test, asphalt high temperature stability test and other asphalt mixture mechanical test. It also can make other asphalt mixture sample, it’s kind of common asphalt testing equipment.
Main technical specifications
Rolling wheel size: 500*300mm (Dia.*W)
Rolling wheel compaction liner load control range: 200–700 N/cm, can be free adjusted. 300N/cm as default.
Rolling wheel compaction liner load control accuracy: ±3 N/cm
Rolling wheel temperature control range: RT-200℃
Rolling wheel temperature control accuracy: ±3 ℃
Rolling compaction times: 12±1 time/min
Mould size: 300 × 300 × (30~100)mm
Net weight: 480 kg
Rated Capacity: 380V AC, 3.0KW
Service:
1. Warranty 1 year of replacement and return.
1, Providing factory visit and study, technical training
2, 24-hour technical support by e-mail or phone
3, Providing laboratory construction program design guidelines
4, Providing product design and OEM service
