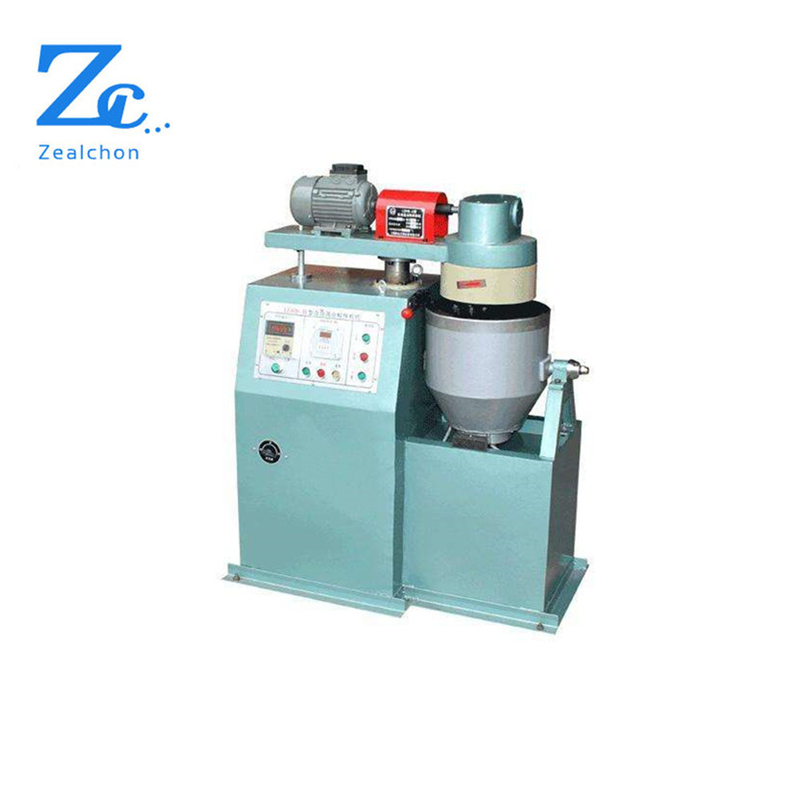

A57 20L Laboratory Automatic Horizontal Bitumen Mixer

A57 20L Laboratory Automatic Horizontal Bitumen Mixer

A57 20L Laboratory Automatic Horizontal Bitumen Mixer

Product Details:

Place of Origin: China
Brand Name: zealchon
Certification: ISO CE
Model Number: A57

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $3000
Packaging Details: wooden box
Delivery Time: 7days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100sets/month
Contact Now
Detailed Product Description
Mixing Capacity: 10 Litres Heating Boiler Temperature Range: Room Temperature To 250 ℃ (set Arbitrary)
Heating Mode (two Heating Ways Optional): 1. Electric Jacket Heating 2. Oil Temperature Heating Mixing Time: 1-999 - S (set Arbitrary)
Mixing Blade Speed: Revolution 48 R/min Rotation 80r/min

Product Description

A57 20L Laboratory Automatic Horizontal Bitumen Mixer





A57 20L Laboratory Automatic Horizontal Bitumen Mixer





Parameters Type BH-10 Type BH-20
Mixing capacity 10 litres 20 litres
Heating boiler temperature range room temperature to 250 (set arbitrary) room temperature to 250 (set arbitrary)
temperature control precision ±3℃ ±3℃
Heating mode (two heating ways optional)
  1. 1. Electric jacket heating
  2. 2. oil temperature heating

1. Electric jacket heating

2. oil temperature heating

Mixing time 1-999 - s (set arbitrary) 1-999 - s (set arbitrary)
Mixing blade speed

revolution 48 r/min

Rotation 80r/min



revolution 48 r/min

Rotation 80r/min



power supply voltage 220V±10% 220V±10%
Current 15A 15A
Boundary dimensions 1100*550*1350mm 1240*590*1350mm





The machine according to the ministry of communications standards JTG E20-2011 "highway engineering asphalt and asphalt mixture test regulation” to produce. Widely used in scientific research, production, colleges and universities construction and supervision laboratory



Product pictures:









Service:





1. Warranty 1 year of replacement and return.



1, Providing factory visit and study, technical training



2, 24-hour technical support by e-mail or phone



3, Providing laboratory construction program design guidelines



4, Providing product design and OEM service
