SD3 API low pressure filter drilling for Lab Equipment Analysis Device Slurry Testing with 3 cups

SD3 API low pressure filter drilling for Lab Equipment Analysis Device Slurry Testing with 3 cups

SD3 API low pressure filter drilling for Lab Equipment Analysis Device Slurry Testing with 3 cups

Product Details:

Place of Origin: China
Brand Name: zealchon
Certification: ISO CE
Model Number: SD3

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $1500
Packaging Details: wooden box
Delivery Time: 7days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100sets/month
Contact Now
Detailed Product Description
Filtration Area: 45.6cm2 Working Pressure: 0.69MPa
Drilling Fluid Cup Extreme Pressure: 1MPa Drilling Fluid Injection: 240ml

Product Description

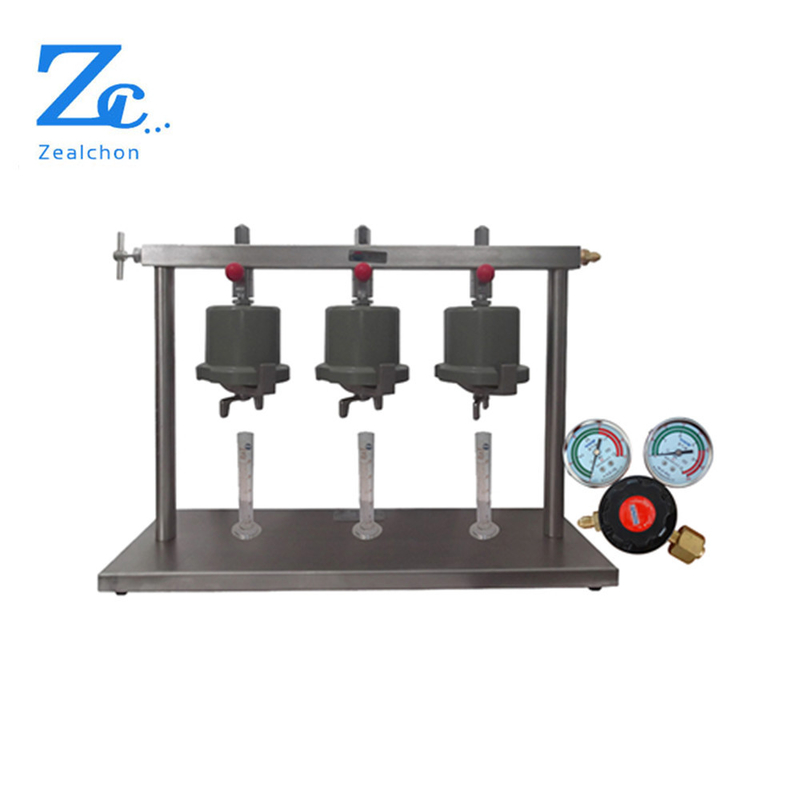

SD3 API low pressure filter drilling  for Lab Equipment Analysis Device Slurry Testing with 3 cups



SD3 API low pressure filter drilling for Lab Equipment Analysis Device Slurry Testing with 3 cups





Application:



Under pressure difference, drilling fluid will have filter effect, which means free water of drilling fluid permeate to gaps and pores of rocks on side wall. Filter press is used to simulate drilling fluid’s filtration and cake’s forming characteristics under static condition. SD4 filter press with many cups can do multi-samples paralleled experiments. It equips aluminium drilling fluid glass, rated working pressure 0.69MPa, effective filtration area 45.6cm2, drilling fluid capacity240ml. And it equips pump air source supply. You can choose low-pressure pipe manifold with nitrogen gas cylinder for labs.



Specification:





Model Name Configuration
SD3 multi MP filter press Three sets of aluminum cup of drilling fluid









Name Technical parameters
Filtration area 45.6cm2
Working pressure 0.69MPa
Drilling fluid cup extreme pressure 1MPa
Drilling fluid injection 240ml









Name Model Outline Dimension Package Size Net Weight Gross Weight
multi MP filter press SD3 510×150×360mm 600×420×255mm 9.8kg 15.85kg

Detailed Images



Trade Shows





Packing and Shipping







After-Sales Service



Certifications





Contact Us





Service:



1. Warranty 1 year of replacement and return.



1, Providing factory visit and study, technical training



2, 24-hour technical support by e-mail or phone



3, Providing laboratory construction program design guidelines



4, Providing product design and OEM service
