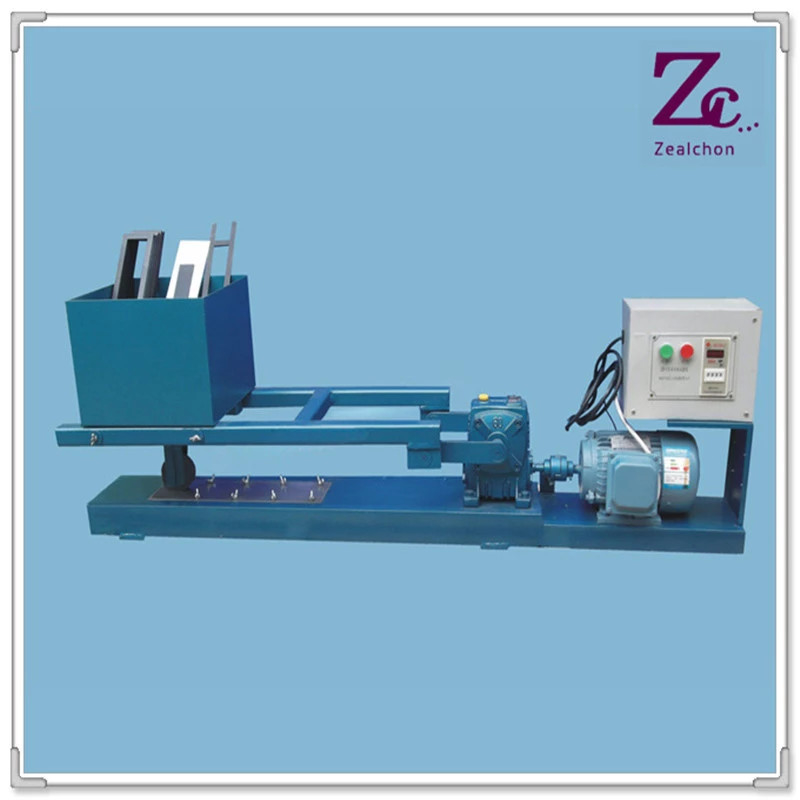

A48 Asphalt lab Equipment Slurry Mixture Load Wheel Rolling Tester

A48 Asphalt lab Equipment Slurry Mixture Load Wheel Rolling Tester

A48 Asphalt lab Equipment Slurry Mixture Load Wheel Rolling Tester

Product Details:

Place of Origin: China
Brand Name: zealchon
Certification: ISO
Model Number: A48

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $1500
Packaging Details: wooden box
Delivery Time: 7days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100sets/month
Contact Now
Detailed Product Description
The Main Motor Speed: 1750 R/min Reducer Gear Ratio: 40:1
Rolling Frequency: 44 Times/min Rotate The Crankshaft Radius: 150 Mm
Rubber Wheel Width: 26.0 Mm

A48 Asphalt lab Equipment Slurry Mixture Load Wheel Rolling Tester





Application:





The tester is in line with the industry standard of the People's Republic of China "regulations of highway engineering asphalt and asphalt mixture test JTG E20-2011", and comply with industry standard of the People's Republic of China "the micro table place and slurry seal technology guide.



Wheel load tester is used to measure the emulsified bitumen slurry seal mixture of whether there is an excess of asphalt, which is to determine one of the biggest slurry mixture asphalt dosage, with wet wheel wear tester can determine the optimum asphalt dosage of emulsified bitumen slurry seal.



Rolling test:After molding of the slurry mixture, grind 1000 times under 57 kg load, simulate vehicle to roll, and then to spread hot sand on the specimen, rolling 100 times again, showing by absorption to sand amount per square meter.



Detailed Images





Application:





parameters details
The main motor speed 1750 r/min
Reducer gear ratio 40:1
Rolling frequency 44 times/min
Rotate the crankshaft radius 150 mm
Active foot wheel turn the horizontal distance of 610 mm
Rubber casters rubber hardness 60-70 - h RC + 1 HRC
Rubber wheel width 26.0 mm
Steel grit size within the framework 38 * 355 * 5 mm
Four electronic counter, compaction times can be set.
the thickness of sample 3 mm to 5 mm 6 mm to 8 mm to 10 mm to 6.4 mm to 12.7 mm on demand to choose
Tester internal dimension 50 mm x 380 mm
Tester length * width * height: 1600 mm * 460 mm * 460 mm



Lab Display



Trade Shows





Packing and Shipping







After-Sales Service





Service:







1. Warranty 1 year of replacement and return.





2, Providing factory visit and study, technical training





3, 24-hour technical support by e-mail or phone





4, Providing laboratory construction program design guidelines





5, Providing product design and OEM service
