A53 Emulsified Asphalt Cohesion Tester EN 12274-4 ASTM D3910

Product Details:

Place of Origin:	China
Brand Name:	zealchon
Certification:	ISO CE
Model Number:	A53

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$1500
Packaging Details:	wooden box
Delivery Time:	7days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100sets/month

Contact Now

Detailed Product Description

The Pressure Head Diameter:	28 Mm	Head Thickness:	28.6 Mm
The Rubber Gasket At The Bottom Of The Pressure Head:	DiameterΦ28.6 Mm	The Torque Wrench Torque Range:	Not Less Than 3.5 N•m

Product Description

A53 Emulsified Asphalt Cohesion Tester EN 12274-4 ASTM D3910

Application:

A53 Emulsified Asphalt Cohesion Tester EN 12274-4 ASTM D3910

This tester confirms to the ministry of communications , the ministry of water resources, the ministry of railways current standards of the People's Republic of China. It is used to determine time needed for the emulsified bitumen slurry seal mixture reach safety curing, which is time to open road after emulsified bitumen slurry seal paving the road.

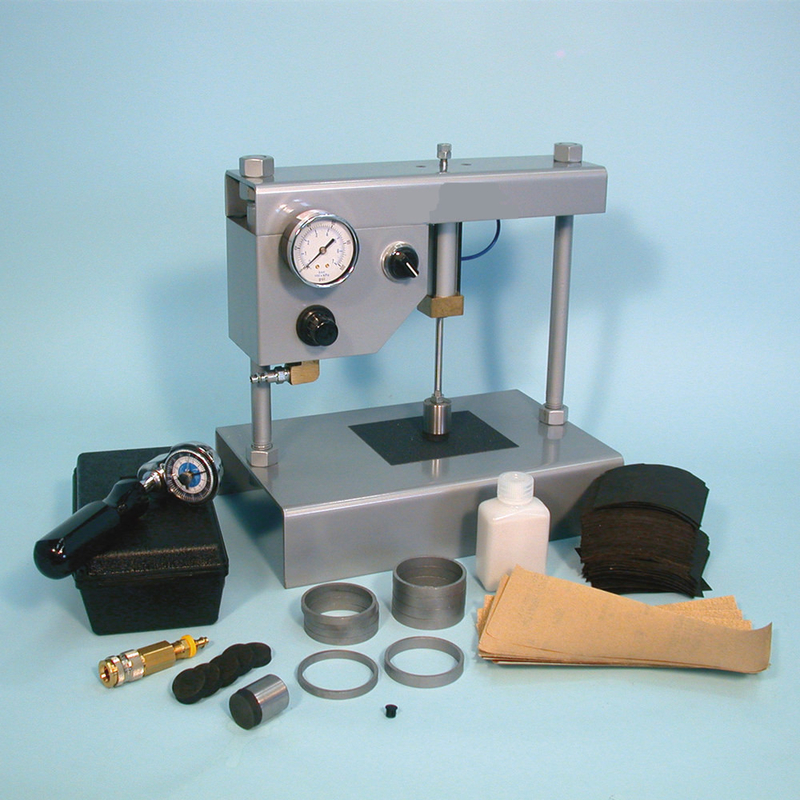

Detailed Images

Specification:

parameters	details
The pressure head diameter	Φ 28 mm
head thickness	28.6 mm
the rubber gasket at the bottom of the pressure head	diameterΦ28.6 mm thickness 6.4 mm hardness 60 HRC
The pressure head pressure	the pressure on the style stage is 128.5 N± 1.0 N head falling speed is not more than 8 cm/s
The torque wrench torque range	not less than 3.5 N•m
Air pressure gauge range	1 Mpa.
Ring mould: the inside diameter	60 mm thickness of 6 mm respectively, 10 mm.
The small pump	0 ~ 1 Mpa, the pressure is adjustable.
