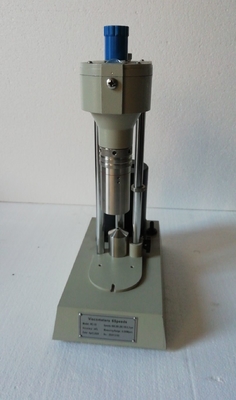

ZNN-D6 Six Speed Rotational Viscometer for Drilling Fluid

ZNN-D6 Six Speed Rotational Viscometer for Drilling Fluid

    • ZNN-D6 Six Speed Rotational Viscometer for Drilling Fluid
    • ZNN-D6 Six Speed Rotational Viscometer for Drilling Fluid
    • ZNN-D6 Six Speed Rotational Viscometer for Drilling Fluid
  • ZNN-D6 Six Speed Rotational Viscometer for Drilling Fluid

    Product Details:

    Place of Origin: China
    Brand Name: zealchon
    Certification: ISO
    Model Number: ZNN-D6

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: $800
    Packaging Details: wooden box
    Delivery Time: 7days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100sets/month
    Contact Now
    Detailed Product Description
    Motor Power: 50W Motor Speed: 720r/min
    Speed Range: 3,6,100,200,300,600r/min Measuring Accuracy: 0~25 MPa·s±1 MPa.s(Newtonian Fluid) 25 MPa·s ±4% (Newtonian Fluid)
    Rated Frequency: AC110/220V±5% 50/60Hz

    Product Description







    Application:





    ZNN-D6 is manufactured to test rheological parameters in accordance with API. It can measure various rheological parameters. Draw rheological diagram according to multi-point measurement value, determine fluid model of liquid in the flow process, then select suitable formula and measure non-Newtonian fluid model. Meanwhile, it can test yield point, gel strength, consistency coefficient and flow behavior index and so on. The instrument applies to research and analysis of drilling fluid rheological parameters. Easy operation and accurate testing can meet safe and quick drilling requirements.









    ZNN-D6 F1 Torsion spring measuring assembly/ F0.2 Torsion spring measuring assembly(Optional accessories)





    Specification:



    Rated Frequency AC110/220V±5% 50/60Hz
    Motor power 50W
    Environmental Temperature ≥20±5
    Environment humidity 45%RH~60%RH
    Motor speed 720r/min
    Speed range 3,6,100,200,300,600r/min
    Velocity-gradient 5,10,170,340,511,1022 S-1
    Measuring accuracy 0~25 mPa·s±1 mPa.s(Newtonian fluid)
    25 mPa·s ±4% (Newtonian fluid)
    Viscosity measurement range Newtonian fluid0~300mPa.s (F1Measuring assembly) 0~60mPa.s (F0.2Measuring assembly)
    Non-Newtonian fluid:0~150 mPa.s (F1Measuring assembly) 0~30 mPa.s (F0.2Measuring assembly)
    Shearing stress: 0~153.3Pa (F1Measuring assembly) 0~30.7Pa (F0.2Measuring assembly)
    Outline Dimension 285×150×410mm
    Package Size 620×300×490mm
    Net Weight 7.35kg
    Gross Weight 13.85kg

    Service:





    1. Warranty 1 year of replacement and return.



    1, Providing factory visit and study, technical training



    2, 24-hour technical support by e-mail or phone



    3, Providing laboratory construction program design guidelines



    4, Providing product design and OEM service
