Place of Origin: | China |
Brand Name: | zealchon |
Certification: | ISO |
Model Number: | D019 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | $800 |
Packaging Details: | wooden box |
Delivery Time: | 7days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 100sets/month |
Maximum Test Pressure: | 0.40MPa, (high Pressure 0.60Mpa) | Number Of Specimens: | 3 (a) |
---|---|---|---|
Permeable Plate Outer Diameter: | Φ135mm | Permeable Plate Inside Diameter: | Φ112 |
Power Supply: | 220V |

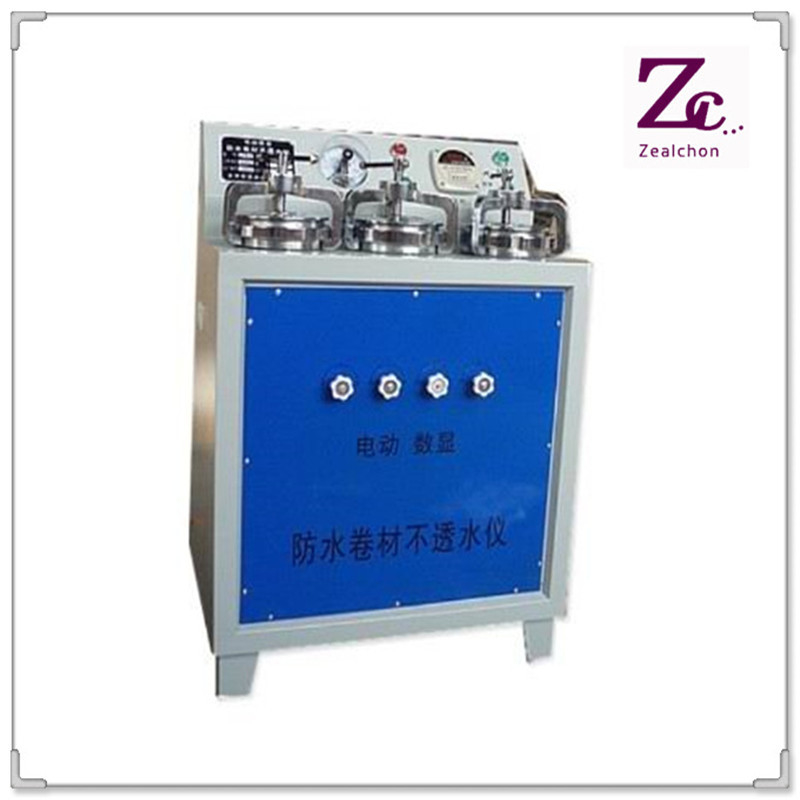

D019 Bitumen roofing waterproofing testing machine(Isogam water proof testing machine)
The instrument used to detect petroleum asphalt felt, polymer elastomer waterproofing membrane and a variety of new waterproofing membrane.
The instrument uses an electric pump pressure, electrical contacts can automatically maintain pressure, digital timer.
The new standard applies to web GB/328.10-SY-B type high pressure situations, such as special roofs, tunnels and pools, etc.
Technical parameters:
Maximum test pressure: 0.40MPa, (high pressure 0.60Mpa)
Number of specimens: 3 (a)
permeable plate outer diameter: Φ135mm
permeable plate inside diameter: Φ112
Power supply: 220V
Weight: 28kg
Service:
1. Warranty 1 year of replacement and return.
1, Providing factory visit and study, technical training
2, 24-hour technical support by e-mail or phone
3, Providing laboratory construction program design guidelines
4, Providing product design and OEM service
