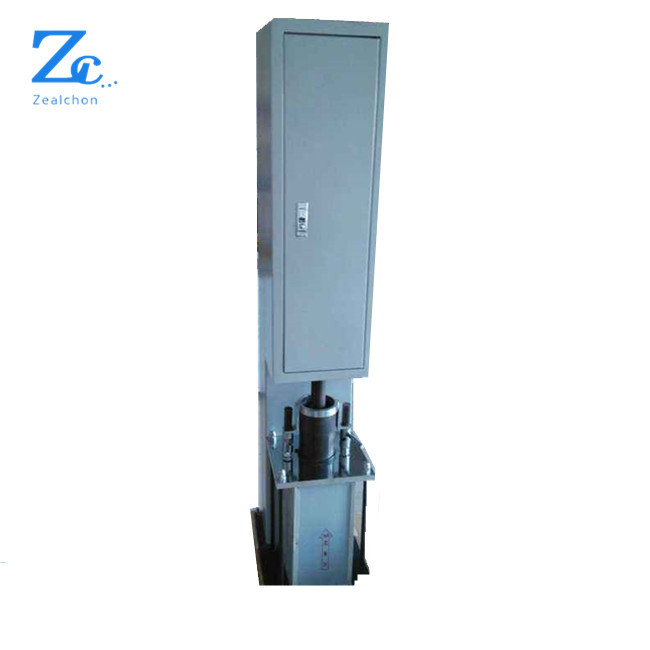

A59 Digital large automatic asphalt Electric Marshall compactor
The instrument conforms to the law of the People's Republic of China,ministry of communications industry standard "JTG E20-2011 road asphalt and asphalt mixture test regulation, is a special equipment for asphalt
mixture experiment specimen molding. Apply to the standard compaction method,
For asphalt mixture laboratory physical and mechanical properties test, Such as Marshall test.
Specification:
Technical parameters
| Parameter |
SizeZMJ-1 |
SizeZMJ-2 |
| Hammer weight |
10210g±10g |
4536±9g |
| Hammer bottom diameter |
149.4mm±0.1mm |
98.5mm±0.5mm |
|
Heavy hammer head
|
457.2mm±2.5mm |
457.2±1.5mm |
|
The compaction speed
|
60/min |
60/min |
|
compaction times
|
Can preset, setting range: 0-99, has the preset number memory function
|
Can preset, setting range: 0-99, has the preset number memory function
|
| Specimen size |
152.4mm*95.3mm |
101.6mm*63.5mm |
|
Specimen mold
|
152.4.mm
115mm;
12.7mm;172mm
155.6mm
83mm
|
101.6mm
87mm;
120.6mm;
104.8mm
70mm
|
|
Power voltage
|
220V±10% 50HZ |
220V±10% 50HZ |
|
Power
|
370W |
370W |
| Boundary Dimension |
540mm×540mm×1650mm |
540mm×540mm×1650mm |
Service:
1. Warranty 1 year of replacement and return.
1, Providing factory visit and study, technical training
2, 24-hour technical support by e-mail or phone
3, Providing laboratory construction program design guidelines
4, Providing product design and OEM service
