A105 ASTM D6925 Asphalt mixture superpave Gyratory Compactor in lab

A105 ASTM D6925 Asphalt mixture superpave Gyratory Compactor in lab

    • A105 ASTM D6925 Asphalt mixture superpave Gyratory Compactor in lab
    • A105 ASTM D6925 Asphalt mixture superpave Gyratory Compactor in lab
  • A105 ASTM D6925 Asphalt mixture superpave Gyratory Compactor in lab

    Product Details:

    Place of Origin: China
    Brand Name: zealchon
    Certification: ISO
    Model Number: A105

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: $17000
    Packaging Details: wooden box
    Delivery Time: 7days
    Payment Terms: T/T, Western Union, L/C
    Supply Ability: 100sets/month
    Contact Now
    Detailed Product Description
    Valid Test Tube Size:: Φ150 × 200mm Φ100 × 160mm Specimen Vertical Hydraulic Cylinder Pressure: Specimen Vertical Hydraulic Cylinder Pressure
    Compaction Rotation Angle: 0 To 3 Degrees Factory Adjusted To 1.25 Degrees Rotation: 0-999 (can Be Set)
    Compaction Speed: 30r/min ± 0.5 R / Min

    Product Description

    A105   ASTM D6925 Asphalt mixture superpave Gyratory Compactor  in lab





    A105 ASTM D6925 Asphalt mixture superpave Gyratory Compactor in lab





    Application:





    It is suitable for rotary compaction molding ¢ 150mm or ¢ 100mm asphalt mixture cylindrical specimens, for laboratory using of asphalt mixture trials physical and mechanical properties.

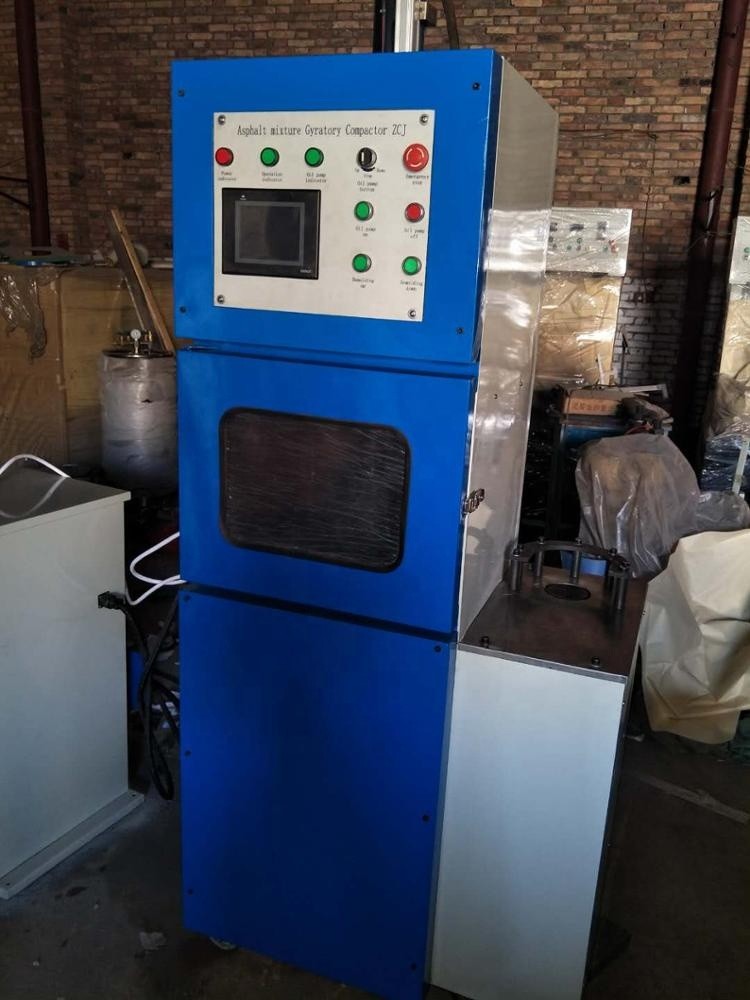

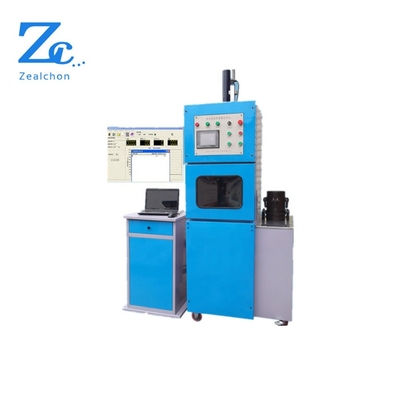

    The equipment consists of a hydraulic pressure system, rotating base, mold release system, pressure acquisition, temperature acquisition, and data display control system. Can be connected to a computer for analysis and calculate test data, save data and display graphics.



    Detailed Images









    specification:



    Technical Parameters

    voltage: 380V (three-phase four-wire)

    valid test tube size: Φ150 × 200mm Φ100 × 160mm

    specimen vertical hydraulic cylinder pressure: The factory setting is 600kPa (can be set) pump station rated pressure 25MPa

    compaction rotation angle: 0 to 3 degrees factory adjusted to 1.25 degrees

    rotation :0-999 (can be set)

    compaction speed: 30r/min ± 0.5 r / min

    Host Dimension: 900 * 600 * 2250mm

    Hydraulic system Dimensions: 500 * 500 * 900mm



    Lab Display



    Trade Shows





    Packing and Shipping







    After-Sales Service





    Service:







    1. Warranty 1 year of replacement and return.





    2, Providing factory visit and study, technical training





    3, 24-hour technical support by e-mail or phone





    4, Providing laboratory construction program design guidelines





    5, Providing product design and OEM service
