Place of Origin: | China |
Brand Name: | zealchon |
Certification: | ISO |
Model Number: | A001 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | $750 |
Packaging Details: | wooden box |
Delivery Time: | 7days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 100sets/month |
Temperature Range: | Indoors Temperature ~ 90 °C | Needle Penetration Time: | Boot Time: 5s, You Can Set Your Own |
---|---|---|---|
Needle Penetration Range: | 0-40mm ± 0.01 Mm | Time Range: | 0-60s ±0.1s |
Total Weight Of The Standard Pin And Connecting Rod: | 50g ± 0.05g |

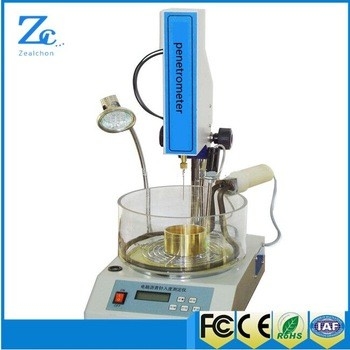

A001 Automatic Asphalt Universal Penetrometer
Description
-The collet nut fixed needle, to ensure that the needle bar and the needle are in the same center line.
-Displacement sensor test, the needle penetration display precision: 0.01 mm
-Equipped with cold light lighting device, had no effect on the asphalt surface temperature
-With a heating device
-The advanced digital temperature sensor enables temperature measurement more accurate.
-Pin and connecting rod are easy disassembly, easy to check the quality
-The printercanoutput directly
-LCDis moreintuitive.
Specification:
Main Technical Indicators | |
Parameter Names | Details |
Temperature Range | Indoors temperature ~ 90 °C |
Needle penetration time | Boot time: 5s, you can set your own |
Needle penetration range | 0-40mm ± 0.01 mm |
Time range | 0-60s ±0.1s |
Total weight of the standard pin and connecting rod | 50g ± 0.05g |
Weight mass | 50g ± 0.05g |
Ambient temperature | 5 ~ 40 °C |
Ambient humidity | ≤ 85% |
Power supply voltage | 220V |
Boundary dimension | 330 × 230 × 520mm |
Power | 600W |
Weight | 7.2kg |
Service:
1. Warranty 1 year of replacement and return.
1, Providing factory visit and study, technical training
2, 24-hour technical support by e-mail or phone
3, Providing laboratory construction program design guidelines
4, Providing product design and OEM service
