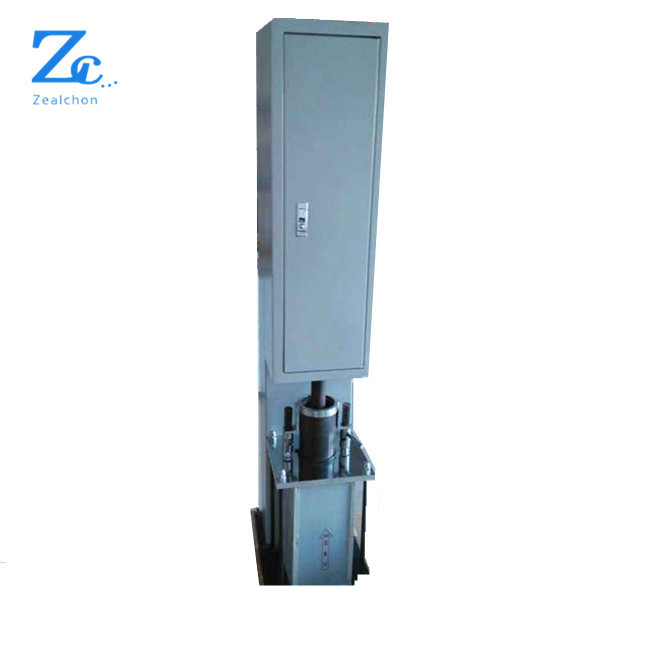

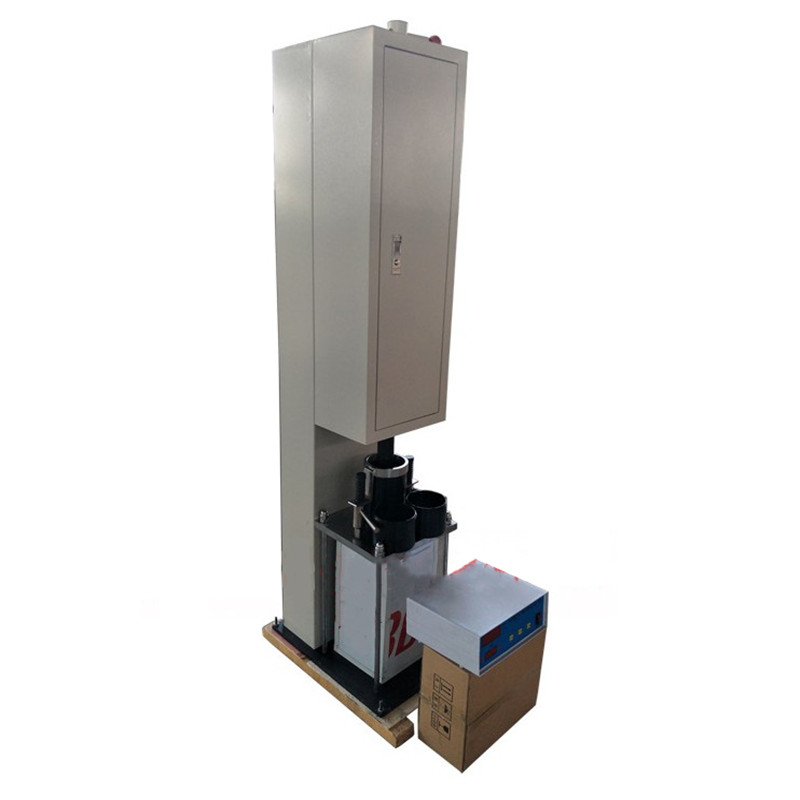

A59 Digital Bitumen or Asphalt Automatic Marshall Compactor

Product Details:

Place of Origin:	China
Brand Name:	zealchon
Certification:	ISO
Model Number:	A59

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$2700
Packaging Details:	wooden box
Delivery Time:	7days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100sets/month

Contact Now

Detailed Product Description

Hammer Weight:	4536±9g	Hammer Bottom Diameter:	98.5mm±0.5mm
Heavy Hammer Head:	457.2±1.5mm	The Compaction Speed:	60/min
60/min:	Can Preset, Setting Range: 0-99, Has The Preset Number Memory Function	Specimen Size:	101.6mm*63.5mm
Power Voltage:	220V±10% 50HZ

Product Description

A59 Digital Bitumen or Asphalt Automatic Marshall Compactor

The instrument conforms to the law of the People's Republic of China,ministry of communications industry standard "JTG E20-2011 road asphalt and asphalt mixture test regulation, is a special equipment for asphalt

mixture experiment specimen molding. Apply to the standard compaction method,

For asphalt mixture laboratory physical and mechanical properties test, Such as Marshall test.

Specification:

Technical parameters

Parameter	SizeZMJ-1	SizeZMJ-2
Hammer weight	10210g±10g	4536±9g
Hammer bottom diameter	149.4mm±0.1mm	98.5mm±0.5mm
Heavy hammer head	457.2mm±2.5mm	457.2±1.5mm
The compaction speed	60/min	60/min
compaction times	Can preset, setting range: 0-99, has the preset number memory function	Can preset, setting range: 0-99, has the preset number memory function
Specimen size	152.4mm*95.3mm	101.6mm*63.5mm
Specimen mold	152.4.mm 115mm; 12.7mm;172mm 155.6mm 83mm	101.6mm 87mm; 120.6mm; 104.8mm 70mm
Power voltage	220V±10% 50HZ	220V±10% 50HZ
Power	370W	370W
Boundary Dimension	540mm×540mm×1650mm	540mm×540mm×1650mm

Product Description

A59 Automatic marshall compaction machine with two weight hammer

The instrument conforms to the law of the People's Republic of China,ministry of communications industry standard "JTG E20-2011 road asphalt and asphalt mixture test regulation, is a special equipment for asphalt

mixture experiment specimen molding. Apply to the standard compaction method,

For asphalt mixture laboratory physical and mechanical properties test, Such as Marshall test.

Specification

item	value
Warranty	1 year
Certification	ISO
Customized support	OEM
Place of Origin	China
	Shaanxi
Brand Name	Zealchon
Model Number	A59
Power	Electronic
Hammer weight	10210g±10g
Hammer bottom diameter	149.4mm±0.1mm
Heavy hammer head	457.2mm±2.5mm
The compaction speed	60/min
Specimen size	152.4mm*95.3mm
Product name	Marshall Impact Compactor
Application	Asphalt
Standard	BS.EN.ASTM

Packing & Delivery

a. Inner package: dust-proof plastic bag b. Outer package: standard export wooden case with pallet c. Special package: according to buyer's requirements d. The packages suitable for international transport by sea, by air or by any other delivery methods
