Place of Origin: | China |
Brand Name: | zealchon |
Certification: | ISO |
Model Number: | a59 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | $2700 |
Packaging Details: | wooden box |
Delivery Time: | 7days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 100sets/month |
Hammer Weight: | 10210g±10g | Hammer Bottom Diameter: | 149.4mm±0.1mm |
---|---|---|---|
Heavy Hammer Head: | 457.2mm±2.5mm | The Compaction Speed: | 60/min |
Specimen Size: | 152.4mm*95.3mm | Power: | 370W |

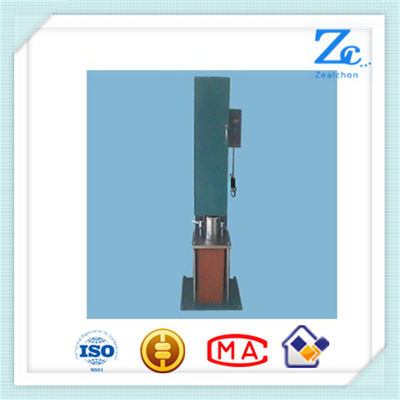

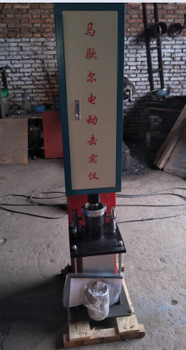

A59 Marshall Electric Compaction Tester
The instrument conforms to the law of the People's Republic of China,ministry of communications industry standard "JTG E20-2011 road asphalt and asphalt mixture test regulation, is a special equipment for asphalt
mixture experiment specimen molding. Apply to the standard compaction method,
For asphalt mixture laboratory physical and mechanical properties test, Such as Marshall test.
Specification:
Technical parameters
Parameter | SizeZMJ-1 | SizeZMJ-2 |
Hammer weight | 10210g±10g | 4536±9g |
Hammer bottom diameter | 149.4mm±0.1mm | 98.5mm±0.5mm |
Heavy hammer head
|
457.2mm±2.5mm | 457.2±1.5mm |
The compaction speed
|
60/min | 60/min |
compaction times
|
Can preset, setting range: 0-99, has the preset number memory function |
Can preset, setting range: 0-99, has the preset number memory function |
Specimen size | 152.4mm*95.3mm | 101.6mm*63.5mm |
Specimen mold
|
152.4.mm 115mm; 12.7mm;172mm 155.6mm 83mm |
101.6mm 87mm; 120.6mm; 104.8mm 70mm |
Power voltage |
220V±10% 50HZ | 220V±10% 50HZ |
Power
|
370W | 370W |
Boundary Dimension | 540mm×540mm×1650mm | 540mm×540mm×1650mm |
