A105 Asphalt mixture SuperPave Gyratory Compactor

A105 Asphalt mixture SuperPave Gyratory Compactor

    • A105 Asphalt mixture SuperPave Gyratory Compactor
    • A105 Asphalt mixture SuperPave Gyratory Compactor
  • A105 Asphalt mixture SuperPave Gyratory Compactor

    Product Details:

    Place of Origin: China
    Brand Name: zealchon
    Certification: ISO
    Model Number: A105

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: $15000
    Packaging Details: wooden box
    Delivery Time: 7days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100sets//month
    Contact Now
    Detailed Product Description
    Voltage: 380V (three-phase Four-wire) Valid Test Tube Size: 150 × 200mm Φ100 × 160mm
    Compaction Rotation Angle: 0 To 3 Degrees Factory Adjusted To 1.25 Degrees Compaction Speed: 30r/min ± 0.5 R / Min
    Host Dimension: 900 * 600 * 2250mm

    Product Description

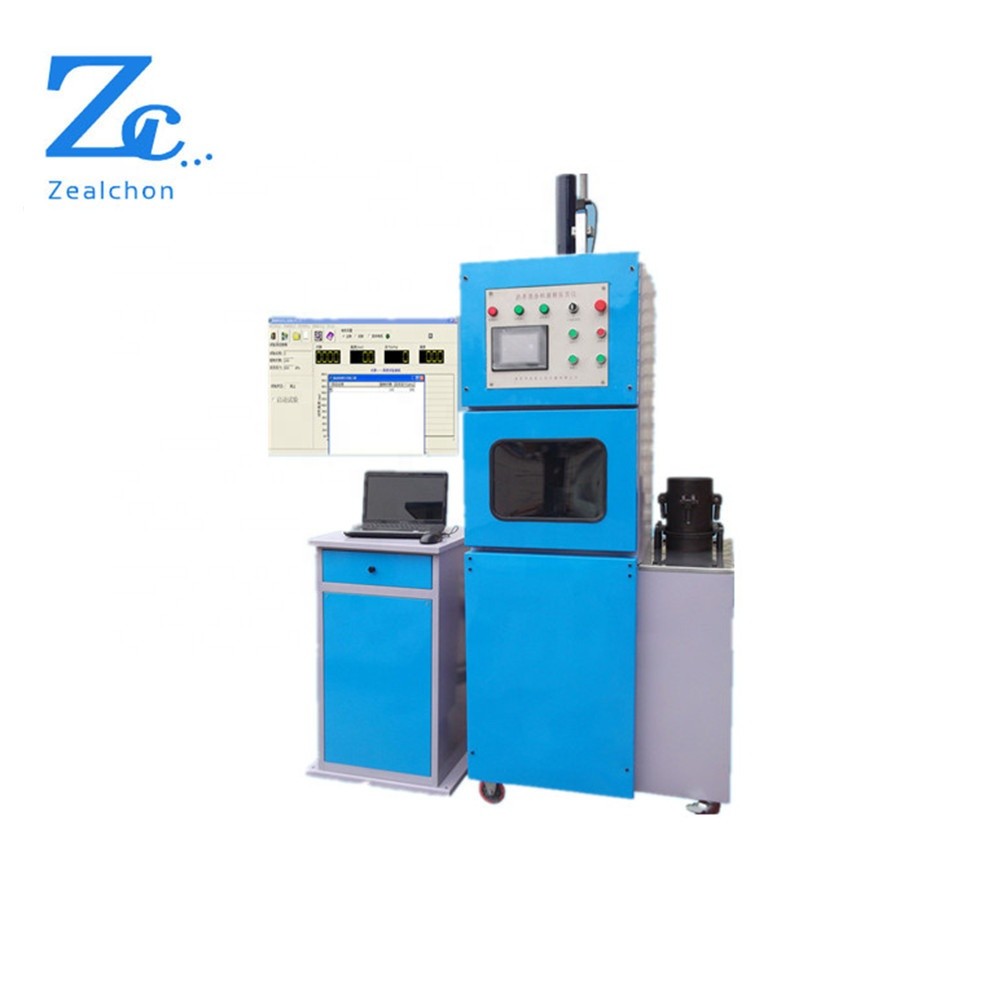

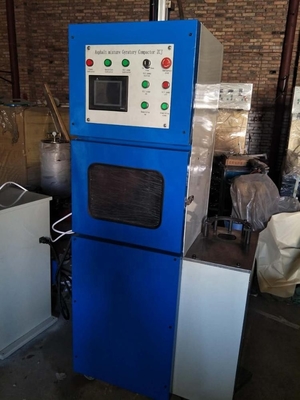

    A105 Asphalt mixture SuperPave Gyratory Compactor





    A105 Asphalt mixture SuperPave Gyratory Compactor



    A105 Asphalt mixture SuperPave Gyratory Compactor

    Application:





    It is suitable for rotary compaction molding ¢ 150mm or ¢ 100mm asphalt mixture cylindrical specimens, for laboratory using of asphalt mixture trials physical and mechanical properties.



    The equipment consists of a hydraulic pressure system, rotating base, mold release system, pressure acquisition, temperature acquisition, and data display control system. Can be connected to a computer for analysis and calculate test data, save data and display graphics.



    Detailed Images













    specification:



    Technical Parameters

    voltage: 380V (three-phase four-wire)

    valid test tube size: Φ150 × 200mm Φ100 × 160mm

    specimen vertical hydraulic cylinder pressure: The factory setting is 600kPa (can be set) pump station rated pressure 25MPa

    compaction rotation angle: 0 to 3 degrees factory adjusted to 1.25 degrees

    rotation :0-999 (can be set)

    compaction speed: 30r/min ± 0.5 r / min

    Host Dimension: 900 * 600 * 2250mm

    Hydraulic system Dimensions: 500 * 500 * 900mm
