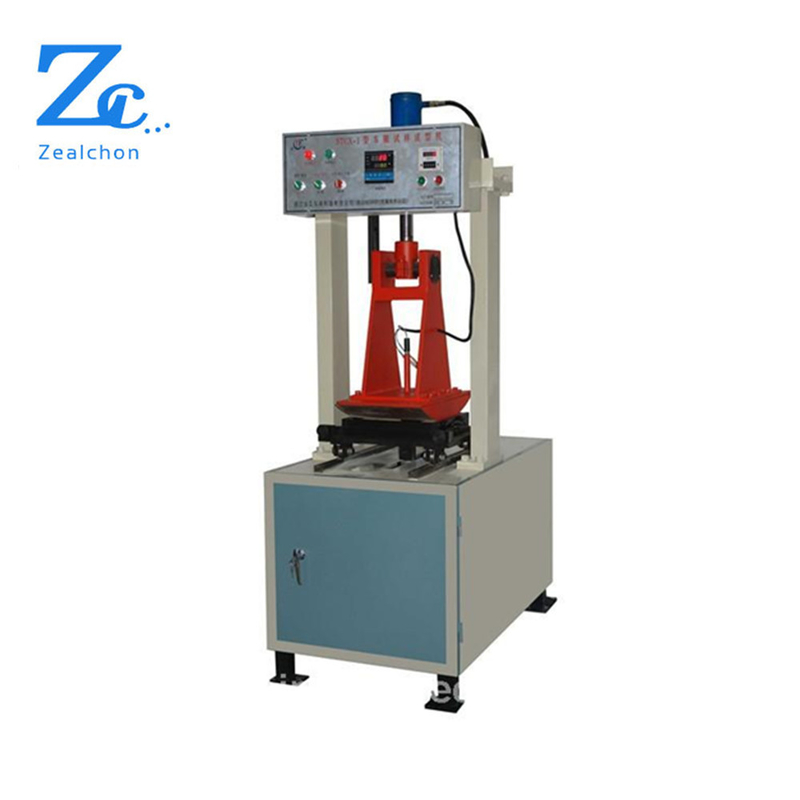

A078 Asphalt Mixture electro-hydraulic wheel tracking device specimen molding machine
This product is suitable for the production of physical mechanics in the laboratory method using wheels grind Asphalt Mixture test pieces, measuring Asphalt Mixture temperature rutting resistance, asphalt mix design properties such as high temperature stability Trials. Meet the People's Republic of China Ministry of Transportation industry standard "JTG E20-2011 asphalt and asphalt testing procedures, T0703-2011 Asphalt Mixture test pieces production methods (round grind Act)."
The product consists of a temperature control module, pressure control module, the number of Roller Compacted control module, hydraulic, servo cylinders, Roller Compacted wheels, the standard test mold and so on. You can set the temperature of Roller Compacted wheel, Roller Compacted and compacting the number of line loads.
halt Mixture test pieces, measuring Asphalt Mixture temperature rutting resistance, asphalt mix design properties such as high temperature stability Trials. Meet the People's Republic of China Ministry of Transportation industry standard "JTG E20-2011 asphalt and asphalt testing procedures, T0703-2011 Asphalt Mixture test pieces production methods (round grind Act)."
Specification:
| Technical Parameters |
| Parameters Name |
Details |
| Test mold Size |
300mm × 300mm × 50mm; 300mm × 300mm × 100mm |
| Compaction line loads control range |
200 ~ 400 N / cm (factory setting is: 300 N / cm) |
| Compaction line loads control accuracy |
± 2 N / cm |
| Roller Compacted Length |
300mm |
| |
Roller Compacted times can be set from 0 to 9999 times |
| Roller Compacted speed |
17 per minute round trip (one round trip per Roller Compacted is about 3.5S) |
| Temperature control range |
50 ~ 200 ℃ (factory setting is: 100 ℃) |
| Temperature control accuracy |
± 5 ℃. Oil heating |
| Rated power |
3.5kW 380V AC |
| Ambient temperature |
5 ~ 40 ℃ |
| Dimension |
1340 × 700 × 2000mm |
| Weight |
600 kg |
Service:
1. Warranty 1 year of replacement and return.
2, Providing factory visit and study, technical training
3, 24-hour technical support by e-mail or phone
4, Providing laboratory construction program design guidelines
5, Providing product design and OEM service
