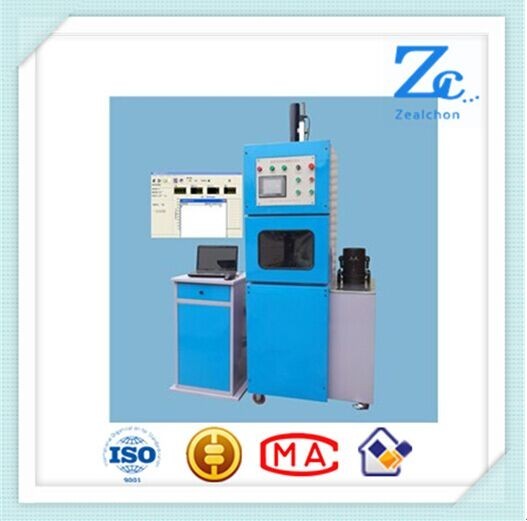

A105 Asphalt mixture Gyratory Compactor

A105 Asphalt mixture Gyratory Compactor

A105 Asphalt mixture Gyratory Compactor

Product Details:

Place of Origin: China
Brand Name: ZEALCHON
Certification: ISO
Model Number: A105

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $2000
Packaging Details: wooden box
Delivery Time: within 7days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Voltage: 380V (three-phase Four-wire) Valid Test Tube Size: Φ150 × 200mm Φ100 × 160mm
Compaction Rotation Angle: 0 To 3 Degrees Factory Adjusted To 1.25 Degrees Rotation: 0-999 (can Be Set)
Compaction Speed: 30r/min ± 0.5 R / Min

A105 Asphalt mixture Gyratory Compactor





Application:





It is suitable for rotary compaction molding ¢ 150mm or ¢ 100mm asphalt mixture cylindrical specimens, for laboratory using of asphalt mixture trials physical and mechanical properties.



The equipment consists of a hydraulic pressure system, rotating base, mold release system, pressure acquisition, temperature acquisition, and data display control system. Can be connected to a computer for analysis and calculate test data, save data and display graphics.





A105 Asphalt mixture Gyratory Compactor







specification:



Technical Parameters

voltage: 380V (three-phase four-wire)

valid test tube size: Φ150 × 200mm Φ100 × 160mm

specimen vertical hydraulic cylinder pressure: The factory setting is 600kPa (can be set) pump station rated pressure 25MPa

compaction rotation angle: 0 to 3 degrees factory adjusted to 1.25 degrees

rotation :0-999 (can be set)

compaction speed: 30r/min ± 0.5 r / min

Host Dimension: 900 * 600 * 2250mm

Hydraulic system Dimensions: 500 * 500 * 900mm





Service:







1. Warranty 1 year of replacement and return.





2, Providing factory visit and study, technical training





3, 24-hour technical support by e-mail or phone





4, Providing laboratory construction program design guidelines





5, Providing product design and OEM service







A105 Asphalt mixture Gyratory Compactor

















Packing and Shipping:







A105 Asphalt mixture Gyratory Compactor











Trade Show:







A105 Asphalt mixture Gyratory Compactor







Certification:





A105 Asphalt mixture Gyratory Compactor
