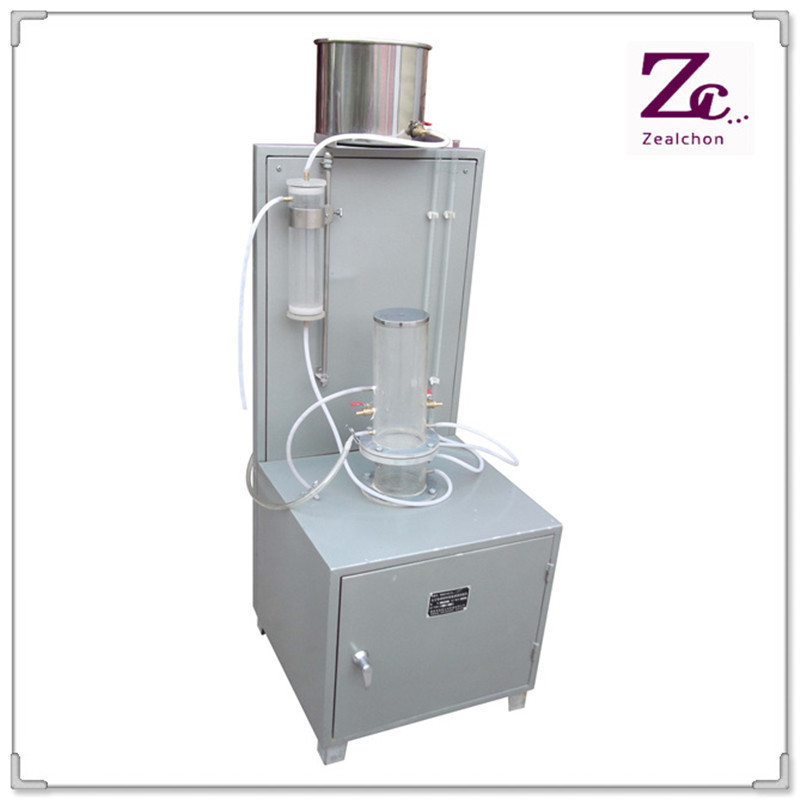

D007 Vertical permeability tester (constant head) for geotextile membrane ASTM D 4491

D007 Vertical permeability tester (constant head) for geotextile membrane ASTM D 4491

D007 Vertical permeability tester (constant head) for geotextile membrane ASTM D 4491

Product Details:

Place of Origin: China
Brand Name: ZEALCHON
Certification: ISO
Model Number: D007

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $11000
Packaging Details: wooden box
Delivery Time: within 7days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Difference Set: 0-280mm Standard: ASTM D 4491
Water Level Measuring Height Device Accuracy: 0.2mm Minimum Diameter: 50mm
Certrificate: ISO Weight: 30kg

D007 Vertical permeability tester (constant head) for geotextile membrane ASTM D 4491
Application:

For testing geotextiles and geotextile materials comply, at a constant head vertical
permeability.

D007 Vertical permeability tester (constant head) for geotextile membrane ASTM D 4491

specification:

Technical parameters
Flow rate index:
1,Both sides of the sample water head flow rate adjustable difference set :0-280mm Accuracy: 1mm / s, vertical permeability coefficient
2,The water flow rate and water conservancy geotextile plane vertical gradient flows (mm / s)
3,Water permeability: flowing water perpendicular to geotextile , when exits water level difference, equal to 1 hour seepage flow velocity (1 / s)
4,Penetration instrument made by plexiglass tube, Divided into upper and lower container, and there are well sealed containers holder in the middle of the two containers (minimum diameter is 50mm, maximum diameter is 100mm)
5,water supply system with overflow level adjustment device, keeping both sides of the head constant
6,Water level measuring height device accuracy: 0.2mm



Service:







1. Warranty 1 year of replacement and return.





2, Providing factory visit and study, technical training





3, 24-hour technical support by e-mail or phone





4, Providing laboratory construction program design guidelines





5, Providing product design and OEM service







D007 Vertical permeability tester (constant head) for geotextile membrane ASTM D 4491

















Packing and Shipping:







D007 Vertical permeability tester (constant head) for geotextile membrane ASTM D 4491











Trade Show:







D007 Vertical permeability tester (constant head) for geotextile membrane ASTM D 4491







Certification:





D007 Vertical permeability tester (constant head) for geotextile membrane ASTM D 4491
