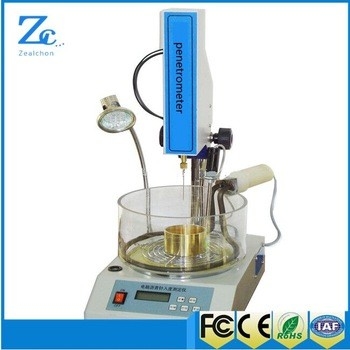

liquid petroleum asphalt Penetrometer
Description
-The collet nut fixed needle, to ensure that the needle bar and the needle are in the same center line.
-Displacement sensor test, the needle penetration display precision: 0.01 mm
-Equipped with cold light lighting device, had no effect on the asphalt surface temperature
-With a heating device
-The advanced digital temperature sensor enables temperature measurement more accurate.
-Pin and connecting rod are easy disassembly, easy to check the quality
-The printercanoutput directly
-LCDis moreintuitive.
Specification:
| Main Technical Indicators |
| Parameter Names |
Details |
| Temperature Range |
Indoors temperature ~ 90 °C |
| Needle penetration time |
Boot time: 5s, you can set your own |
| Needle penetration range |
0-40mm ± 0.01 mm |
| Time range |
0-60s ±0.1s |
| Total weight of the standard pin and connecting rod |
50g ± 0.05g |
| Weight mass |
50g ± 0.05g |
| Ambient temperature |
5 ~ 40 °C |
| Ambient humidity |
≤ 85% |
| Power supply voltage |
220V |
| Boundary dimension |
330 × 230 × 520mm |
| Power |
600W |
| Weight |
7.2kg |
Service:
1. Warranty 1 year of replacement and return.
1, Providing factory visit and study, technical training
2, 24-hour technical support by e-mail or phone
3, Providing laboratory construction program design guidelines
4, Providing product design and OEM service
Related Equipment:
Asphalt sampler, asphalt furnace.
