A59 Digital Bitumen or Asphalt Automatic Marshall Compactor for butimen testing machines

A59 Digital Bitumen or Asphalt Automatic Marshall Compactor for butimen testing machines

A59 Digital Bitumen or Asphalt Automatic Marshall Compactor for butimen testing machines

Product Details:

Place of Origin: China
Brand Name: ZEALCHON
Certification: ISO
Model Number: A59

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $2000
Packaging Details: wooden box
Delivery Time: 7days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Hammer Weight: 10210g±10g Hammer Bottom Diameter: 149.4mm±0.1mm
Heavy Hammer Head: 457.2mm±2.5mm The Compaction Speed: 60/min

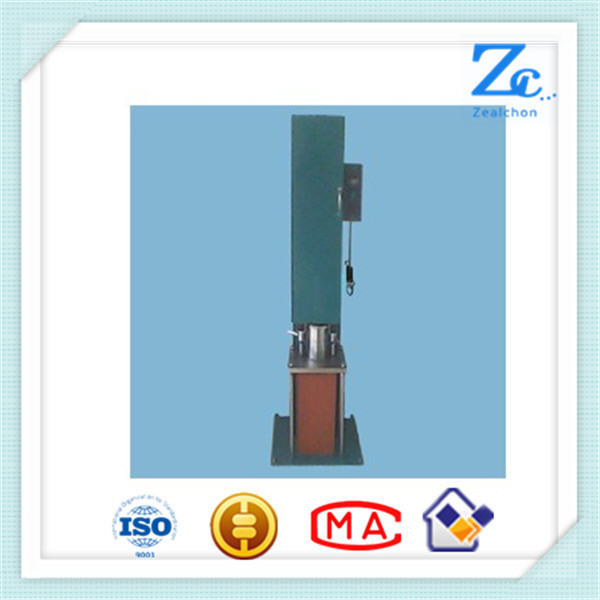

A59 Marshall Electric Compactor





The instrument conforms to the law of the People's Republic of China,ministry of communications industry standard "JTG E20-2011 road asphalt and asphalt mixture test regulation, is a special equipment for asphalt

mixture experiment specimen molding. Apply to the standard compaction method,



For asphalt mixture laboratory physical and mechanical properties test, Such as Marshall test.





A59 Digital Bitumen or Asphalt Automatic Marshall Compactor





Specification:





Technical parameters



Parameter SizeZMJ-1 SizeZMJ-2
Hammer weight 10210g±10g 4536±9g
Hammer bottom diameter 149.4mm±0.1mm 98.5mm±0.5mm

Heavy hammer head



457.2mm±2.5mm 457.2±1.5mm

The compaction speed



60/min 60/min

compaction times





Can preset, setting range: 0-99, has the preset number memory function



Can preset, setting range: 0-99, has the preset number memory function

Specimen size 152.4mm*95.3mm 101.6mm*63.5mm

Specimen mold



152.4.mm

115mm;

12.7mm;172mm

155.6mm

83mm

101.6mm

87mm;

120.6mm;

104.8mm

70mm



Power voltage

220V±10% 50HZ 220V±10% 50HZ

Power



370W 370W
Boundary Dimension 540mm×540mm×1650mm 540mm×540mm×1650mm





Service:





1. Warranty 1 year of replacement and return.



1, Providing factory visit and study, technical training



2, 24-hour technical support by e-mail or phone



3, Providing laboratory construction program design guidelines



4, Providing product design and OEM service



A59 Digital Bitumen or Asphalt Automatic Marshall Compactor for butimen testing machines





Related Equipment:




Asphalt sampler, asphalt furnace.



Packing and Shipping:



A59 Digital Bitumen or Asphalt Automatic Marshall Compactor for butimen testing machines
