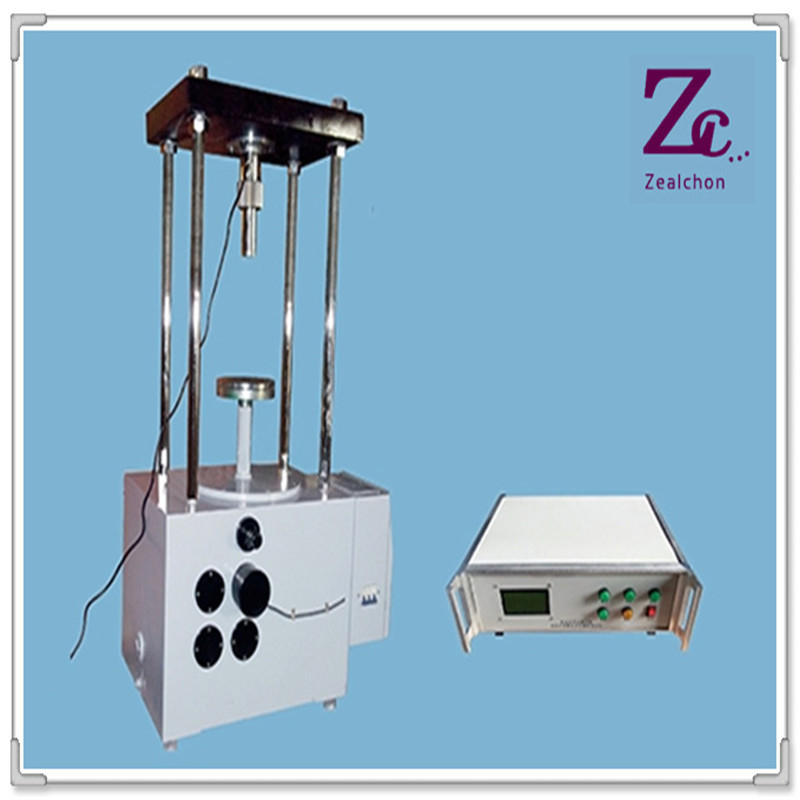

C141 Rock fracture toughness tester

C141 Rock fracture toughness tester

C141 Rock fracture toughness tester

Product Details:

Place of Origin: China
Brand Name: ZEALCHON
Certification: ISO
Model Number: c141

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $5000
Packaging Details: wooden box
Delivery Time: 7days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
, Sample Size: 48 Mm - 54 Mm Length: 3-4 Greater Than The Diameter Ratio
Rate: 1 Mm - 10 Mm (3N/S) Maximum Load: 200 KN ±5 N

Application:





The tester measuring fracture toughness of rock material, fracture toughness is mainly based on the Angle of the crack propagation resistance classifying and on the intact rock, other purposes is checking the index of rock breaking process (Shield Tunneling Under Crushed) and hydraulic fracturing blasting crack and stability analysis.





C141 Rock fracture toughness tester







specification:



Technical parameters
1,Using rock straight incision three-point bending measurement, apply to hard rock
2, sample size: 48 mm - 54 mm length is 3-4 greater than the diameter ratio
3,Two bearing point distance and diameter ratio is 3.33 cm ±0.02 cm
4, Straight incision depth and diameter ratio is 0.35-0.50 notch width is not more than 1.5 mm
5, rate: 1 mm - 10 mm (3N/S)
6,Maximum load: 200 KN ±5 N
7,Maximum deformation: 0 to 10 mm ± 0.01 mm
8, Rock straight incision expansion deformation 0 to 10 mm ± 0.01 mm
9,Rock straight incision expansion deformation 0 to 10 mm ± 0.01 mm



Service:







1. Warranty 1 year of replacement and return.





2, Providing factory visit and study, technical training





3, 24-hour technical support by e-mail or phone





4, Providing laboratory construction program design guidelines





5, Providing product design and OEM service
