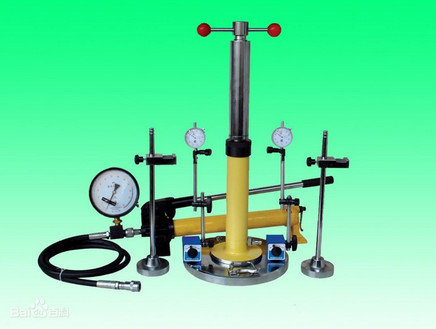

E37 Digital Static plate load testing apparatus

E37 Digital Static plate load testing apparatus

E37 Digital Static plate load testing apparatus

Product Details:

Place of Origin: China
Brand Name: zealchon
Certification: iso
Model Number: E37

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $1000
Packaging Details: wooden box
Delivery Time: 7days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
The Jack Load Capacity Range: 0-10T Jack Stroke: 160mm
Measured Bridge Span: 3000mm Manual Pump Rated Pressure: 60MPa

Use: for estimating the bearing capacity of shallow foundations in situ and for the design of flexible pavement; also used for load tests of soil and flexible pavement components
Standard:
ASTM D 1194, D1195, D1196, BS 1377:9
Specifications:
Hydraulic jack with fixed pumping unit capacity: 0-500 kN. x 0.5 kN.
Pressure gauge and flexible metal pipe 5m long - 1No.
Special ball and socket arrangement between the jack and the bearing plate
Extension rod 12mm. dia x 25cm long
Magnetic base with female thread on top for holding extension rod.
Top end plate, 50mm, dia with male thread for fitting onto the extension rods and positioning the dial gauge plunger.
Column 15cm dia x 25cm long with flanges complete with four bolts and nuts
Column 15cm x 50cm long with flanges complete with four bolts and nuts.
Bridge support of welded steel angle construction, 5m, span and stands approximately 30cm, high, fitted with two quick release clamps, dial bracket
Plane M.S (Mild Steel) Plate 60 cms x 60cms sq. x 25mm thick
Plane M.S.Plate 45cms x 45cm.sq. x 25mm thick
Plane M.S.Plate 30cms x 30cm.sq. x 25mm thick
Dial Gauge 0.01mm x 25mm
Accessories (same standards as above)
Plane Mild Steel. (M.S) Plate 75cm x 25mm thick
Plane M.S.Plate 50cm x 25mm thick
Grooved M.S. Plate 60cm. x 60 cm. x 25mm thick
Grooved M.S. Plate 45cm x 45cm x 25mm thick
>Grooved M.S. Plate 30 cm x 30cm x 25mm thick
Grooved M.S. Plate 75cm x 75cm x 25mm thick.

Flexible rubber pipe 1m. Length for the hydraulic jack in the place of metal pipe.


E37 Digital Static plate load testing apparatus

Specification:


loading plate diameter

300mm
the jack load capacity range 0-10T
jack stroke160mm
measured bridge span3000mm
manual pump rated pressure60MPa
pressure test range0-25MPa
displacement measurement range 0-10mm
an ambient temperature 5 ° C - 45 ° C


Service:



1. Warranty 1 year of replacement and return.


2, Providing factory visit and study, technical training


3, 24-hour technical support by e-mail or phone


4, Providing laboratory construction program design guidelines


5, Providing product design and OEM service



E37 Digital Static plate load testing apparatus








Packing and Shipping:



E37 Digital Static plate load testing apparatus





Trade Show:



E37 Digital Static plate load testing apparatus



Certification:


E37 Digital Static plate load testing apparatus
