It intends to measure liquid limit of soil and Calculates the natural viscosity of soil. It is suitable for the soil whose partical sizeis less than 0.5mm and the soil whose organic content is less than 5%.Liquid Limit Device
With consists of a brass cup held on an adjustable bracket. The bowl can be adjusted for a fall raised & dropped on a rubber of standard hardness by cam action. Complete with one casagrande grooving tool, one ASTM grooving tools and a height gauge block. Hand operated, with counter. As per IS : 2720 (Part-V), IS : 9259, BS : 1377, AS : 89

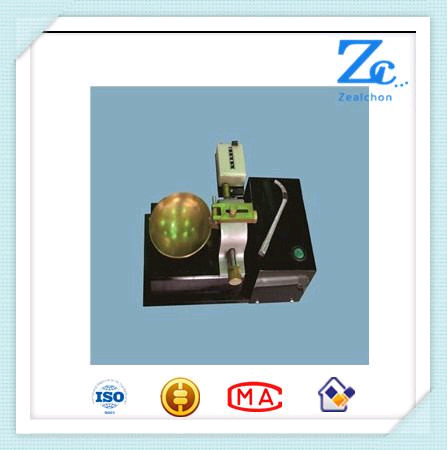

With consists of a brass cup held on an adjustable bracket. The bowl can be adjusted for a fall raised & dropped on a rubber of standard hardness by cam action. Complete with one casagrande-grooving tool, one ASTM grooving tools and a height gauge block. With counter. Fitted with a motor geared down to give approximately 120 RPM. Suitable for operation on 230 Volts, single phase, 50 cycles, A.C. supply.
Specification:
| parameters |
details |
| Fall frequency of Soil disc |
120beat/ min |
| utility knife |
shank diameter 10mm length 90mm,Blade length60mm blade width 10mm |
| Soil disc is made of brass, ball deficiency shape, chord length 93.5mm, Chord Height 27mm |
Service:
1. Warranty 1 year of replacement and return.
2, Providing factory visit and study, technical training
3, 24-hour technical support by e-mail or phone
4, Providing laboratory construction program design guidelines
5, Providing product design and OEM service
