C126 Electric spt tester for soil testing machine

C126 Electric spt tester for soil testing machine

    • C126 Electric spt tester for soil testing machine
    • C126 Electric spt tester for soil testing machine
    • C126 Electric spt tester for soil testing machine
    • C126 Electric spt tester for soil testing machine
    • C126 Electric spt tester for soil testing machine
  • C126 Electric spt tester for soil testing machine

    Product Details:

    Place of Origin: China
    Brand Name: zealchon
    Certification: ISO
    Model Number: c126

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: $12000
    Packaging Details: wooden box
    Delivery Time: 7days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100 sets/month
    Contact Now
    Detailed Product Description
    Hammer Quality: 63.3kg Drop Distance: 760mm
    Speed: 15 Strike/minute, Plus Or Minus 2 / Min Dimension: L1.3m*W2.1m*H2.1m

    Product Description







    C126 SPT Soil Standard Dynamic Cone Penetrometer 63.5kg penetration test



    please notice that:



    This machine can only pull out one meter at a time of use, if under any circumstances rods in ground exceeded
    2 meters, then you will need an external crane, excavator or any other heavy machines to pull the rods out"





    Applications:

    * This type instrument is measure bearing capacity of various soils.

    *Withhigh-horsepowergasoline engines, outdoor use

    *Fully automatic operation, convenient and safe!



    Parameters:

    * Dimension:1.3 X 2.1 X 2.1 M

    * With Motor 7.5KW SENKAI SK850

    Suitable for outdoor power generation

    * Speed: 15time / Minute ± 2time

    * Falling distance of Hummer: 760 mm

    * The size of Cone head:30°,60°,90° and 100°

    * The diameter of Cone head:74mm

    * The power supply: AC 380V (Three phease)

    * The machine China standard:

    YS 5219-2000 cone dynamic penetration test procedures;

    GB50021-2001 rock engineering survey specifications





    Detailed Images

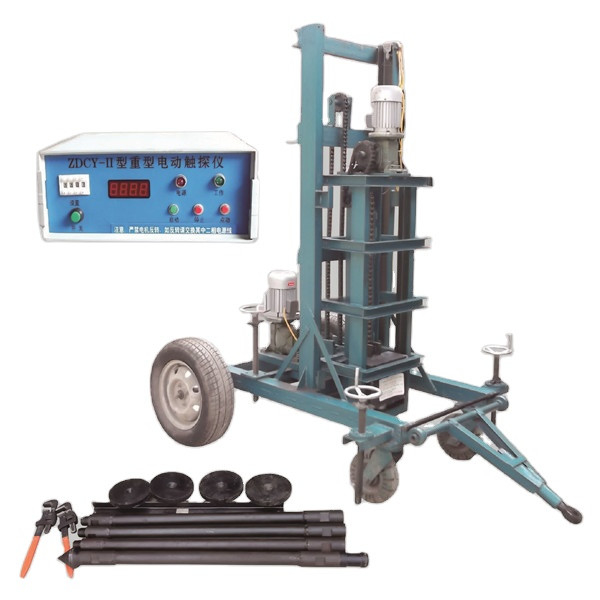

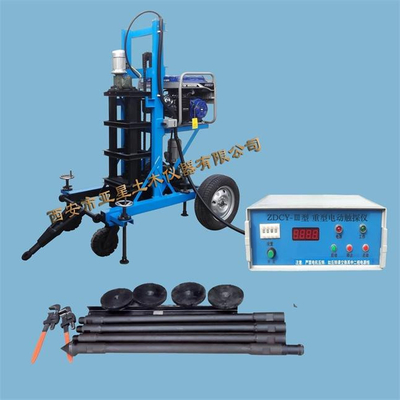

    C126 SPT Soil Standard Dynamic Cone Penetrometer 63.5kg penetration test

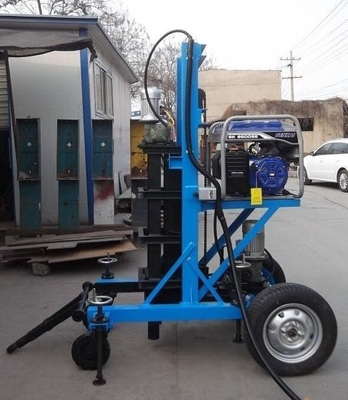

    C126 SPT Soil Standard Dynamic Cone Penetrometer 63.5kg penetration testC126 SPT Soil Standard Dynamic Cone Penetrometer 63.5kg penetration test

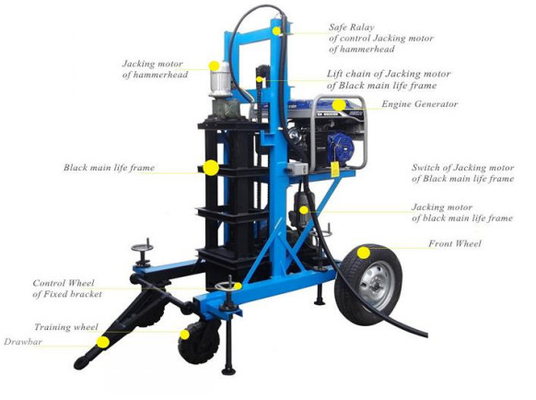

    Structure chart:

    C126 Control panel

    A indicator light is power supply light of digital count meter

    B indicator light is Working indicator light of instrument.

    A button is General switch Power supply of instrument.

    B button is working button of soil penetrometer (set count).

    C button is stop working button of soil penetrometer(set count)

    D button is working button of single time of soil penetrometer.







    Electric Generator Brand: SENKAI SK8500 SE

    Rated voltage: AC220V , AC380V

    Rated Power: 7.5 KW (Max: 8 KW)

    Starting mode: Manual start and electric start

    Output volume: 439mL

    Output horsepower: 18HP

    Max Power: 15.0/3600 kw/rpm

    Rated Power: 13.2 /3600 kw/rpm

    Max torque: 28.0/2500 Nm /rpm

    Engine oil capacity: 1.1 L

    Fuel oil capacity: 25 L

    N.W. / G.W. :



    Lab Display





    C126 SPT Soil Standard Dynamic Cone Penetrometer 63.5kg penetration test

    Trade Shows







    C126 SPT Soil Standard Dynamic Cone Penetrometer 63.5kg penetration test

    Packing and Shipping





    C126 Electric spt tester for soil testing machine





    After-Sales Service





    C126 SPT Soil Standard Dynamic Cone Penetrometer 63.5kg penetration test



    Service:







    1. Warranty 1 year of replacement and return.



    2, Providing factory visit and study, technical training



    3, 24-hour technical support by e-mail or phone



    4, Providing laboratory construction program design guidelines



    5, Providing product design and OEM service
