C075 CPT soil static cone penetrometers

C075 CPT soil static cone penetrometers

C075 CPT soil static cone penetrometers

Product Details:

Place of Origin: China
Brand Name: zealchon
Certification: iso
Model Number: C075

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $3000
Packaging Details: wooden box
Delivery Time: 7 days
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 100 sets/ month
Contact Now
Detailed Product Description
Penetration Resistance Maximum Load Two Types: Types 20kN / 30kN Penetration Depth: 20 M, 30 M With The Corresponding Sheath Maerial
Injection Speed: 0.5-1m/min The Probe Cross-sectional Area: 10cm² 15cm²

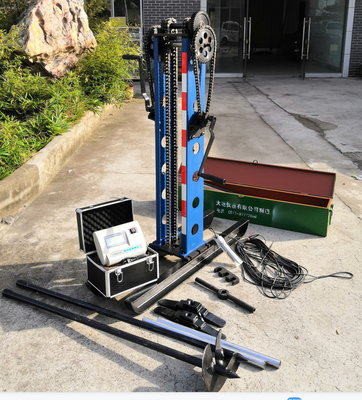

C075 Soil Static Cone Penetrometer







When we inject the feeler lever with probe into soil Steadily and slowly, we can measure the weight of Penetration resistance, bearing force and side frictional resistance

It is suitable for clayey soil,Soft soil, loess and sand soil. It can provide data of Engineering propertiesfor Geotechnical and structure design and construction. It is also suitable for the situ testing of foundation soil in Construction engineering, municipal, railway, water and electricity engineering.


Also Cross shear head , sensor , speed variator is optional for Field vane shear.



C075 CPT soil static cone penetrometers






parameters details
penetration resistance maximum load two types 20kN / 30kN
Penetration depth 20 m, 30 m With the corresponding sheath maerial
Injection speed 0.5-1m/min
The probe cross-sectional area 10cm² 15cm²
liquid crystal display(voltage is less or equal 6 v, with battery charging ) operating temperature 0-40 humidity ≤ 85%PH
picking rate 10 times/SEC. transducer sensitivity 1.5-3mV/V
optional dividing value: 1,2,5,10,20,50 Digital display with LCD :6LED
high precision A/D convert, readability 1/30000,digital filtering, speed, range and settling time can be set, A variety of backlight is optional
Static sounding can be used with single bridge , More intuitive clear, Charge once can work 200 hours
Size 600mm*1200mm*2050mm







1. Warranty 1 year of replacement and return.



2, Providing factory visit and study, technical training



3, 24-hour technical support by e-mail or phone



4, Providing laboratory construction program design guidelines



5, Providing product design and OEM service




C075 CPT soil static cone penetrometers









Packing and Shipping:




C075 CPT soil static cone penetrometers






Trade Show:




C075 CPT soil static cone penetrometers







C075 CPT soil static cone penetrometers
