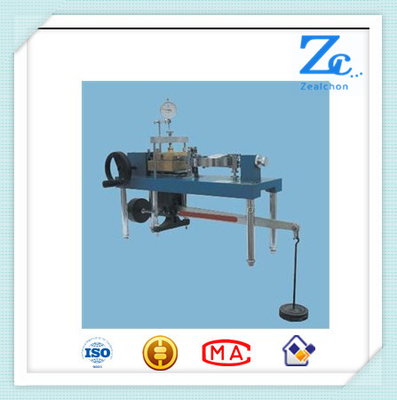

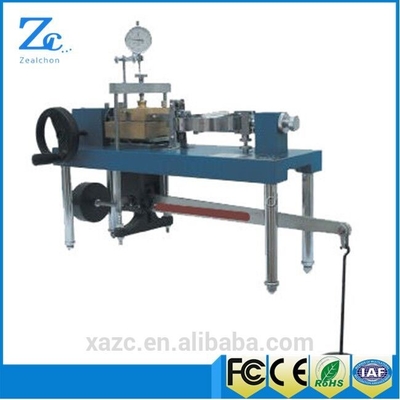

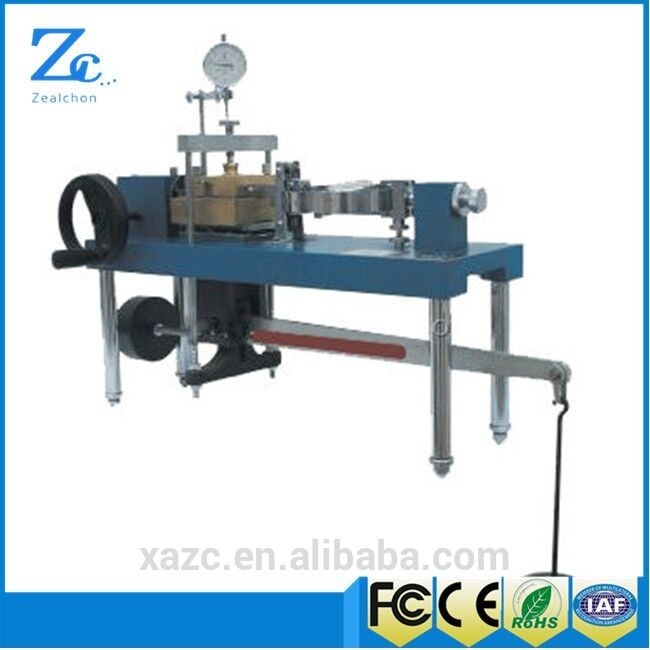

C012-A Portable electric strain direct shear Apparatus meet ASTM standard

C012-A Portable electric strain direct shear Apparatus meet ASTM standard

    • C012-A Portable electric strain direct shear Apparatus meet ASTM standard
    • C012-A Portable electric strain direct shear Apparatus meet ASTM standard
  • C012-A Portable electric strain direct shear Apparatus meet ASTM standard

    Product Details:

    Place of Origin: China
    Brand Name: ZEALCHON
    Certification: ISO
    Model Number: c012-a

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: $500
    Packaging Details: WOODEN BOX
    Delivery Time: within 12 days
    Payment Terms: t/t
    Supply Ability: 100 set pr month
    Minimum Order Quantity: 1 set
    Contact Now
    Detailed Product Description
    Specimen Area: 30cm2 X 2cm (H) Lever Ratio: 1:20
    Vertical Gradation Loading: 50KPa, 100KPa, 200KPa, 300KPa, 400KPa(hanger Is First Grade) Horizontal Loading: Max.1.2KN
    Size: 850 X 550 X 1100mm (L X W X H)
    Highlight:

    direct shear Apparatus

    ,

    direct shear Apparatus

    ,

    direct shear Apparatus

    Packaging & Delivery

    Packaging Details: a. Inner package: dust-proof plastic bag b. Outer package: standard export wooden case with pallet c. Special package: according to buyer's requirements d. The packages suitable for international transport by sea, by air or by any other delivery methods
    Delivery Detail: Within15 working days after confirmation of order


    C012-A Portable Shear Apparatus for test soil shear





    Application:



    It is the common way to determine the shear strength of soil. under the vertical pressure, Applying horizontal shear to shear, shear stress are obtained. We can determine the shear strength parameters, internal friction Angle and cohesive force according to the coulomb's law. It contains Manual and electric function, and it is equipped with Limited position switch to protect the instruments.



    Specification:







    parameter details
    The sample area 30cm²height2cm
    lever ratio 1:12
    Farmar add vertical load grading 50,100,200,300,400kPa
    The maximum horizontal shear stress 1.2kN
    The vertical deformation dialgage 0-10mm precision 0.01mm
    Instrument weight 34kg Attached weight 6.12kg
    size 710×295×440(mm)





    Service:







    1. Warranty 1 year of replacement and return.





    2, Providing factory visit and study, technical training





    3, 24-hour technical support by e-mail or phone





    4, Providing laboratory construction program design guidelines





    5, Providing product design and OEM service







    C012-A Portable electric strain direct shear Apparatus meet ASTM standard

















    Packing and Shipping:







    C012-A Portable electric strain direct shear Apparatus meet ASTM standard











    Trade Show:







    C012-A Portable electric strain direct shear Apparatus meet ASTM standard







    Certification:





    C012-A Portable electric strain direct shear Apparatus meet ASTM standard
