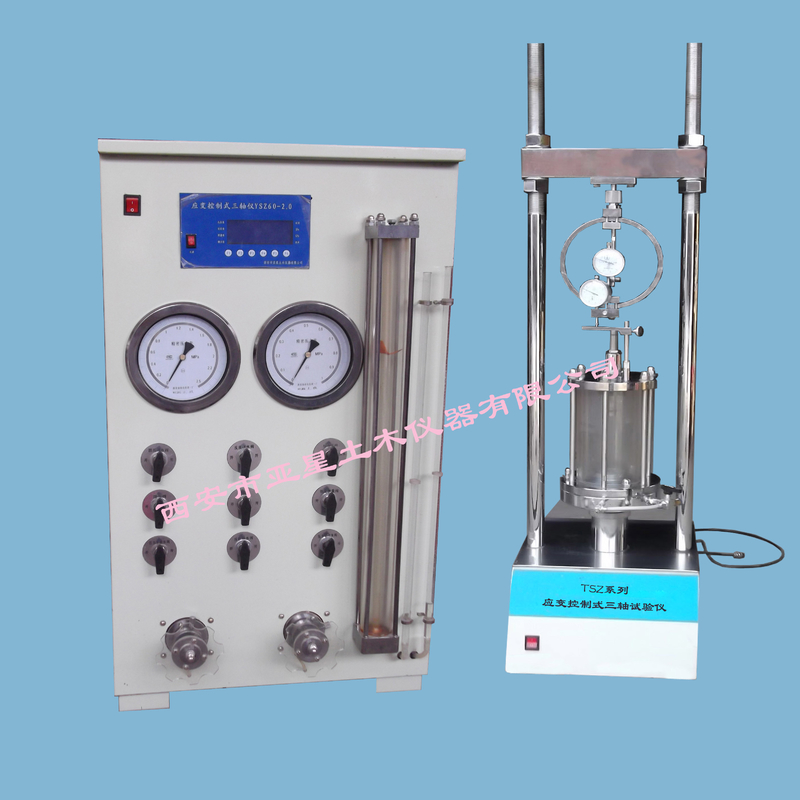

Strain control triaxial apparatus,triaxial test apparatus

Strain control triaxial apparatus,triaxial test apparatus

Strain control triaxial apparatus,triaxial test apparatus

Product Details:

Place of Origin: China
Brand Name: ZEALCHON
Certification: ISO
Model Number: C002

Payment & Shipping Terms:

Price: $8000
Packaging Details: WOODEN BOX
Delivery Time: within 12 days
Payment Terms: t/t
Supply Ability: 100 set pr month
Minimum Order Quantity: 1 set
Contact Now
Detailed Product Description
High Light:

triaxial test apparatus

,

triaxial test apparatus

,

triaxial test apparatus

Specifications

1,Strain control automatic triaxial apparatus,triaxial test apparatus
2,longlife
3,durable
4,high power

Description

It is a method of the determination of shear strength of kinds of soils. Usually with 3-4 cylindrical specimens, under different ambient pressure (i.e., a small primary stress sigma 3), axial pressure is inflicted respectively. Shear strength parameters are obtained according to Mohr coulomb theory.

Technical indicators

parametersdetails
voltage220V±10V 50Hz
power0.75kW
The axial maximum load10kN,20kN,30kN,60kN,100kN Dynamometer Optional, Also can choose force sensor digital display
axial deformation0-10mm±0.01mm dialgage Also can choose displacement sensor liquid crystal display, Or choose mechanical and electrical communication dial indicator
strain rate0.0024~4.5mm/min continuously viable ,Any adjustments, LCD
ambient pressure0-2MPa±0.1kPa (LCD) NC
Back pressure and pore pressure0-2MPa±0.1kPa (LCD) NC Volume change tube 0 ~ 50ml, precision 0.1ml
Lift0-90mm
Sample (confining pressure cylinder)¢61.8 ¢39.1 ¢101
Host, measurement and control system, pressure regulating system, body tube, pressure chamber, constant pressure gauges, pressure regulating valve
