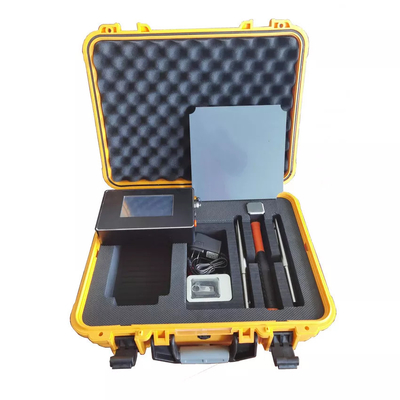

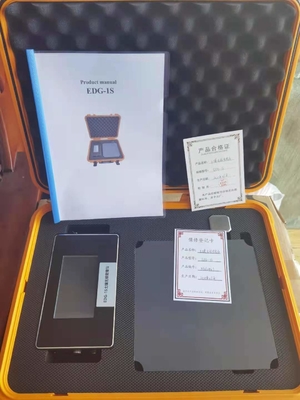

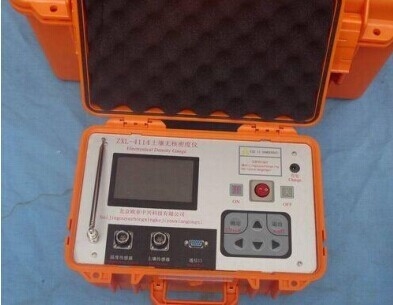

Equipment description:
Soil non-nuclear density gaugeis used to measure road foundation soil to get the soil humidity,
densityandcompactedness.This machine operate simply , easy to carry, fast and accurate.
Operating principle:
Soil nonnuclear density gaugethrough between the high frequency radio electrode to measure
soilcompaction material dielectric properties and density. After that, using mathematical algorithms to
calculatewet/dry density moisture content, and the percentage of the enclosed the compaction
temperature detectorcan also increase the accuracy of the measurement.
Scope of application:
The density of compaction materials humidity; Buildings carry and filler; underpass, basement and
foundation;Backfill the ditch;rubbish.
Features:
Ø It can instead of a nuclear density, measurement method, sand filling method, as well as drying,
absolute non-nuclear source.
Ø No longer need all kinds of nuclear instruments license.
Ø Operator does not need special training/certificate and radiation monitoring.
Ø Transportation and storage requires no special requirements.
Ø Good interface easy to use, convenient cost-effective, suitable for every researchers used in the group,
fast, reliable, deft, firm, accurate and
repeatability good real-time readings.
Ø Using high quality reliable point-to-point RF technology.
Ø 2-3 minutes display measured results.
Ø Ensure buildings, Bridges, roads, DAMS and other engineering structure based firm.
Usage:
In the wild, according to template a hammer to taper electrode or standard block like a cross into soil.
In thetwo tapered standard piece between the bottom four point-to-point measure and average the
electricalcharacteristics process. Users can choosethe metric system of SI unitsor imperial units show
density andhumidity value. Javelin insert depth affect the measurement measure directly. In addition,
the standard of thetaper also affect every hammering and soil in is contact. This machine’s screen
can show menus proceduresand save measurement results.
Technical parameters:
| Model |
ZME-4301Soil non-nuclear density gauge |
| Humidity range |
standard compaction soil field range |
| Dry density precision |
≤3 perent |
| Wet volume range |
standard compaction soil field range |
| Humidity accuracy |
≤2 percent |
| Operating temperature |
0~50 degree |
| Operating humidity |
5~90 percent |
| Power |
12V,4.0AH Lead chromium rechargeable batteries |
| Battery capacity |
Full charge available about 8 hours |
| Size |
343*305*152mm*mm*mm |
| Net weight |
the console:11LBS.(5KG);4LBS.(1.8KG)
|
|
item
|
value
|
|
Warranty
|
1 year
|
|
Customized support
|
OEM
|
|
Place of Origin
|
China
|
|
|
Shaanxi
|
|
Brand Name
|
Zealchon
|
|
Model Number
|
EDG-1S
|
|
Power
|
Electronic
|
|
Operating temperature
|
0 to 50 oc
|
|
Power supply
|
12 v
|
|
Compaction of soil moisture scope
|
standard field range
|
|
Dry density precision
|
standard test of less than 3%
|
|
Warranty
|
1 Year
|
|
Certificate
|
CE ISO
|
|
Product name
|
non-nuclear density gauge
|
|
Power
|
Electronic
|
