C020 Soil High Pressure Triplex Consolidation Testing Apparatus /Triple Combination high Pressure Consolidometer

C020 Soil High Pressure Triplex Consolidation Testing Apparatus /Triple Combination high Pressure Consolidometer

    • C020 Soil High Pressure Triplex Consolidation Testing Apparatus /Triple Combination high Pressure Consolidometer
    • C020 Soil High Pressure Triplex Consolidation Testing Apparatus /Triple Combination high Pressure Consolidometer
    • C020 Soil High Pressure Triplex Consolidation Testing Apparatus /Triple Combination high Pressure Consolidometer
  • C020 Soil High Pressure Triplex Consolidation Testing Apparatus /Triple Combination high Pressure Consolidometer

    Product Details:

    Place of Origin: China
    Brand Name: zealchon
    Certification: iso
    Model Number: c020

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: $1800
    Packaging Details: wooden box
    Delivery Time: within 7days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 100 sets for month
    Minimum Order Quantity: 1 set
    Contact Now
    Detailed Product Description
    Sample Area: 30cm 50cm Lever Ratio: 1:12
    Vertical Deformation: Dialgage 0-10mm Precision 0.01mm Three Pieces Optional Dimensions: 650*500*900mm
    High Light:

    Consolidation Testing Apparatus

    ,

    Triple Combination high Pressure Consolidometer

    ,

    Consolidation Testing Apparatus

    Product Description
    C020 Soil High Pressure Triplex Consolidation Testing Apparatus /Triple Combination high Pressure Consolidometer
    Specification
    C020 Soil Medium pressure triple consolidometer

    -This product is used for the compression test of soil. It can test the relationship between deformation and stress of soil or Void ratio and stress or Deformation and time. It can calculate soil Unit of settlement, the compression coefficient, the
    springback index, compression modulus, the coefficient of consolidation etc.

    Measuring project depends on the project need. It can do low pressure test, and can do medium pressure test, more can do high pressure test

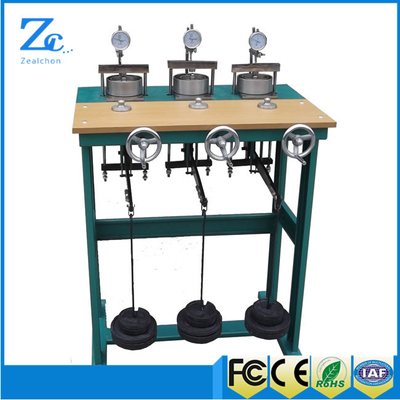

    -This machine is mainly composed of compression containers and pressurized equipment, weight, etc. In the tripli form. Three groups of tests can be performed at the same time. Stress points use bearing structure

    Automatic soil collection triple high-pressure consolidation instrument


    C020 Soil High Pressure Triplex Consolidation Testing Apparatus /Triple Combination high Pressure Consolidometer
    Overview


    Using electronic digital technology to transmit data, the software of the geotechnical test data processing and acquisition system automatically collects, records and stores test data in real time. Compared with previous instruments, it saves the trouble of manual data reading and improves work efficiency.


    The purpose of this experiment is to determine the deformation and the relationship between the pressure or the void ratio and the pressure and the relationship between the deformation and time of the sample under the confinement and axial drainage conditions, and to calculate the soil compression coefficient and index, rebound index, compression modulus, Consolidation coefficient and initial consolidation pressure of undisturbed soil, etc., the measurement items depend on the needs of the project.

    This machine is mainly composed of a compression container, pressurizing equipment, weights, etc. It adopts a triple form and can carry out three sets of tests at the same time, and the force point adopts a bearing structure.


    Instrument characteristics


    1. The special geotechnical test data automatic collection system automatically collects, records and stores the vertical
    displacement and force value instrument data during the test process.
    2. The test process saves labor and time, and improves the test efficiency
    3. The leverage ratio is enlarged, reducing the weight and labor intensity
    4. Compact structure, reliable and stable performance, easy to use

    Technical parameter:

    1. Sample area: 30cm2 and 50 cm2
    2. Leverage ratio: 24:1 30cm2; 20:1 50 cm2
    3. Load form: weight
    5. High pressure: 4000kpa (30 cm2) level 11 loading; 2000kpa (50 cm2) level 10 loading
    6. Pressure range: 12.5kPa~4000kPa
    7. Instrument shape: steel structure
    8.Length 820mm*width 820mm*height 1240mm
    9. Vertical deformation: 0~12.7mm, precision 0.01mm
    item
    value
    Warranty
    1 year
    Certification
    ISO
    Customized support
    OEM
    Place of Origin
    China

    Shaanxi
    Brand Name
    zealchon
    Model Number
    c020
    Power
    Electronic
    sample area
    30cm 50cm
    lever ratio
    1:12
    vertical deformation
    dialgage 0-10mm precision 0.01mm Three pieces optional
    Dimensions
    650*500*900mm
    Warranty
    1 Year
    Certificate
    ISO
    Product name
    consolidation testing machine
    Standard
    BS.EN.ASTM
    Packing & Delivery
    C020 Soil High Pressure Triplex Consolidation Testing Apparatus /Triple Combination high Pressure Consolidometer
    Company Profile
    00:00

    00:28

    C020 Soil High Pressure Triplex Consolidation Testing Apparatus /Triple Combination high Pressure Consolidometer
    C020 Soil High Pressure Triplex Consolidation Testing Apparatus /Triple Combination high Pressure Consolidometer
    C020 Soil High Pressure Triplex Consolidation Testing Apparatus /Triple Combination high Pressure Consolidometer
    Xi 'an Zealchon electronic technology co., LTD, located in new technology industry development zone in Xi'an, an ancient city in China. It covers an area of 7500 square meters of building area. Zealchen specialize in two aspects: one is civil engineering research and experimental apparatus; another is the semiconductor laser research and development. On one hand, currently based on civil experimental instrument research, the research team is founded by the personnel who come from Chang 'an university, Xi 'an polytechnic university, Xi 'an petroleum university, which has the top technology in this expertise. In addition, its research and development has accomplished a series of leading domestic and international standards, first-class technology of asphalt and asphalt mixture, road, bridge deck, geotechnical, structural testing instruments, even more, some of the products fill the blank of similar equipment at home and abroad, won national, ministerial, provincial awards. On-site manufacturing allows us to customize our products quickly and efficiently to meet specialized customer requests. Our technical support team, marketing, and web development teams make their homes in china as well, and are dedicated to providing comprehensive customer support and services.
