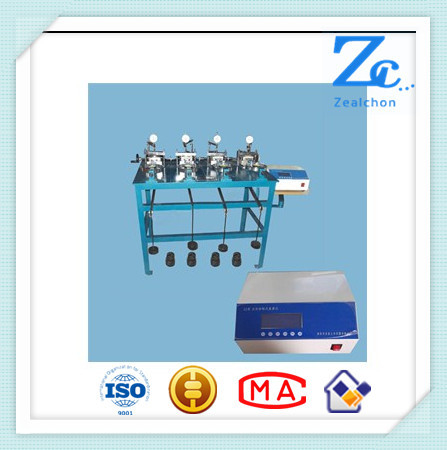

C011 Digital equal strain control Quadruple direct shear apparatus
It is stepless speed regulation. It is used for testing soil shear strength. It can test four soil samples At the same time or separately. It shear in different vertical pressure and the shear stress of Destruction , shear deformation, vertical deformation can be gained. According to the coulomb's law, Determining the internal friction Angle of shear strength, cohesive force.
Specification:
1. Area of soil sample:30cm2
2. Lever ratio:1:12
3. Vertical Loading: 50,100,200,300,400(Kpa)
4. Max. horizontal loading: 1.2KN
5. Shear rate: 5, 2.4, 1.5, 1, 0.8, 0.02, 0.01mm/min
6. 4 specimens in the same test
7. Working voltage: AC220V
8. Measurement: 1160x900x1160mm(main frame),
500x500x1020mm(controller), weight: 240kg
Features:
Stainless steel working table,
stepping motor as pushing mechanism,
high precision, low noise, MCU control,
variable speed displayed by the controller,
easy to operate, ABS vertical type controller,
LCD display.
Service:
1. Warranty 1 year of replacement and return.
2, Providing factory visit and study, technical training
3, 24-hour technical support by e-mail or phone
4, Providing laboratory construction program design guidelines
5, Providing product design and OEM service
