Core Drilling Rig Type SPT testing machine with Truck-mounted

Product Details:

Place of Origin:	China
Brand Name:	zealchon
Certification:	iso
Model Number:	dylc

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$20000
Packaging Details:	wooden box
Delivery Time:	within 7days
Payment Terms:	T/T
Supply Ability:	100 SET PER MONTH

Contact Now

Power:	Electronic	Usage:	SPT Testing Machine
Structure:	Rotary	Power(diesel Engine):	13.2kw
Working Dimension:	3250x1400x7000mm

Power:

Electronic

Usage:

SPT Testing Machine

Structure:

Rotary

Power(diesel Engine):

13.2kw

Working Dimension:

3250x1400x7000mm

Quick Details

Place of Origin: Shaanxi, China (Mainland)
Brand Name: zealchon
Power: Electronic
Usage: static cone penetrometer test
power(diesel engine): 13.2KW
Drilling depth: 130
Max drilling diameter: 480
Driving pipe/drill pipe: 53x59x4200 /50
Drill bits: 75- 220

Packaging Details:	wooden box

Product Description

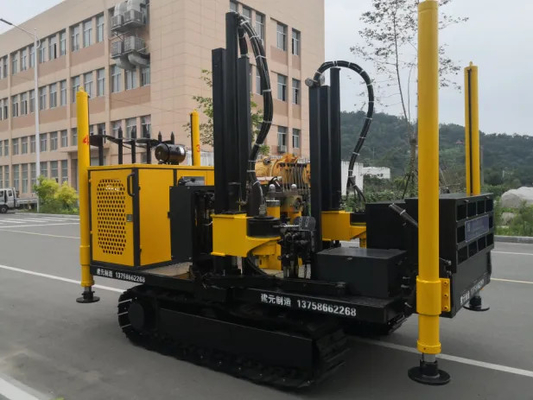

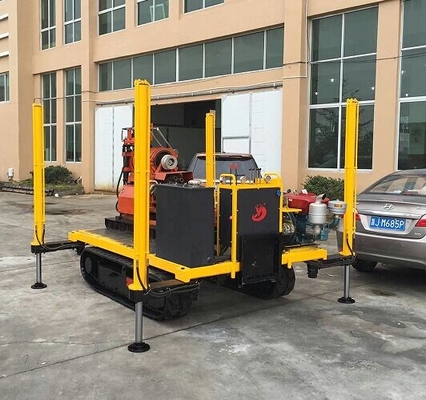

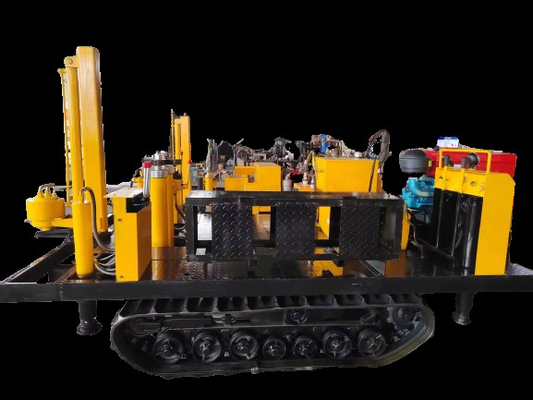

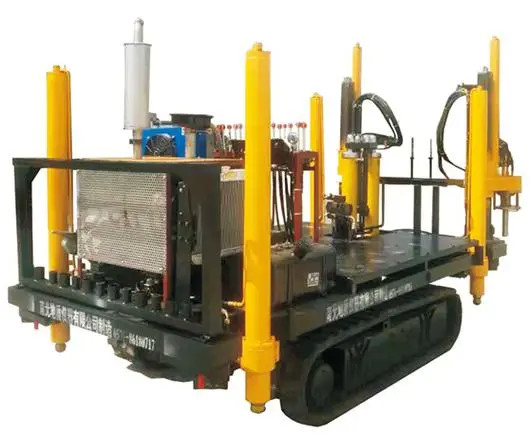

Core Drilling Rig Type SPT testing machine with Truck-mounted

1. Applied for general investigation, geophysical exploration, highway, building construction and blast-hole drilling etc.

2. with hydro-automatic feeding device, and high drilling efficiency.

3. Designed with hydro-chucking unit instead of slips to ensure drilling from stop when changing pipes.
4. Close levers, convenient to operate, safe and reliable operations.

5. Crawler type, suitable for rugged venue operations, very easy to move and transport;
6. Light in weight, easy disassembling for transportation and applicable to working conditions in plain and mountain areas.

Specification of drilling rig

Model	Items		Unit	Specification
1	structure		/	Rotary
2	power(diesel engine)		kW	13.2
3	Working dimension		mm	3250x1400x7000
4	weight		kg	2300
5	Drilling depth		m	130
6	Max drilling diameter		mm	Ø480
7	Driving pipe/drill pipe		mm	53x59x4200 /Ø50
8	Drill bits		mm	Ø75- Ø220
9	rotary speed		r/min	142;285;570
10	Hoisting machine	Diameter of roll	mm	Ø140
		Single ling lifting speed	m/min	0.41;0.82;1.64
		Max.single line hoisting capactiry	t	0.96
		coiling length	m	27
		Steel wire rope	mm	Ø9.3
11	Twoer	Rate load	t	3
		Effective height	m	6.5
		Model	lift and telescopic hydraulic tower
12	Water fault	Max.lifting capacity	t	4
12	Water fault	Diameter of rubber duct	mm	Ø38
13	Mud pump	model	/	BW95A
		Flow	L/min	95
		pressure	m	1.5
		Reciprocating frequency	Times/min	93
