Place of Origin: | China |
Brand Name: | zealchon |
Certification: | iso |

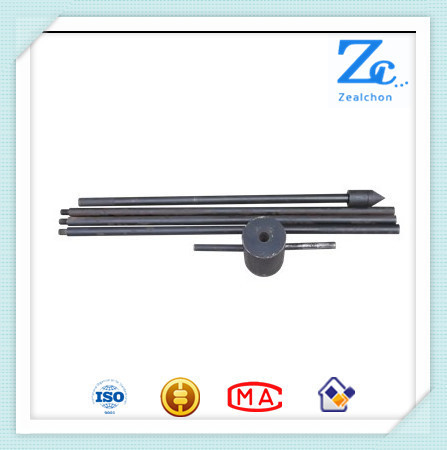

Model Number: | C100 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | $1000 |
Packaging Details: | Wooden box |
Delivery Time: | Within 7days |
Payment Terms: | T/T |
Supply Ability: | 100 sets |
Power: | Manual | Usage: | DCP |
---|
Application:
It is used to determine the bearing capacity of all kinds of soil, find outuniformity coefficient of soil In the horizontal and vertical directions, confirmlocation of Pile foundation bearing layer and Estimate the bearing capacity of single pile.
Using hammer energy, infiltrate special Cone probe into soil. We can distinguish engineering properties of soil according to the complexity of infiltration.
evaluation indexuse blow counts when Injection to some depth. It is main way to test Coarse grained soil.
specification:
-EndFragment-->
Type |
Light one(10kg) |
Heavy (duty) one(63.5kg) |
|
probe specifications |
diameter |
40mm |
74mm |
sectional area |
12.6 cm2 |
43 cm2 |
|
taper angle |
60° |
60° |
|
drop hammer |
weight |
10kg |
63.5kg |
drop distance |
50cm |
76cm |
|
feeler lever diameter |
25mm |
42mm |
|
test index N |
injection30cmblow countsN10 |
injection 10cmblow counts N63.5 |
|
Applicable soil type |
Shallow fill soil, sand and silt clay |
Sand, and gravel soil and soft rock |
Service:
1. Warranty 1 year of replacement and return.
2, Providing factory visit and study, technical training
3, 24-hour technical support by e-mail or phone
4, Providing laboratory construction program design guidelines
5, Providing product design and OEM service
