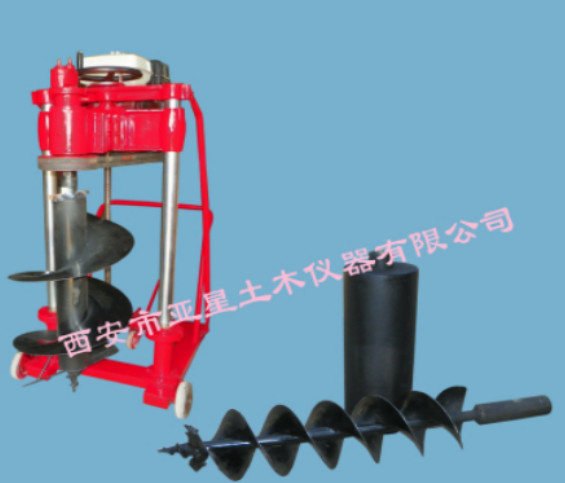

C094 Gasoline soil Drilling sampler
Application:
20-type soil boring earth widely used for drilling and soil railway, municipal engineering, equipment installation engineering and construction quality inspection engineering and other fields. Compressive strength for the foundation works, density, settlement, pore index detection than other items sampled. Petrol engine-powered, start fast, simple, reliable operation, applicable to non-electricity project sites and the larger diameter drilling.
Double-column structure, spiral feed mode, good stability, simple operation and effort.
Specification:
The main technical parameters:
Hole diameter: Φ400, Φ150
Maximum drilling depth: (up to use an extension or lengthening of the core tube at 1500mm) 800mm
¢ 400 × 800mm auger
¢ 150 × 800mm auger
Borrow diamond drilling: ¢ 150 × 400mm
Output speed: 800 to 1200 rev / min
Power: 5.5 hp (Honda gasoline engine)
Weight: 110 kg (gasoline engine)
Service:
1. Warranty 1 year of replacement and return.
2, Providing factory visit and study, technical training
3, 24-hour technical support by e-mail or phone
4, Providing laboratory construction program design guidelines
5, Providing product design and OEM service
