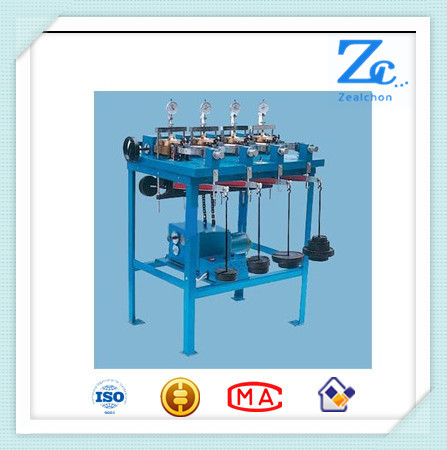

C010 Power-driven Quadruple equal strain soil direct shear apparatus

C010 Power-driven Quadruple equal strain soil direct shear apparatus

C010 Power-driven Quadruple equal strain soil direct shear apparatus

Product Details:

Place of Origin: China
Brand Name: zealchon
Certification: iso
Model Number: C010

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $1000
Packaging Details: Wooden box
Delivery Time: Within 7days
Payment Terms: T/T
Supply Ability: 100 sets
Contact Now
Detailed Product Description
Power: Electronic Usage: Soil Direct Shear Apparatus

Product Description



Application:



It is used to determine shear strength of soil, containing Electric and manual transmission function. Under different vertical pressure, inflicting Horizontal shear force, Destruction of the shear stress are obtained. According to the coulomb's law, we can determine the shear strength and deformation parameters of soil, internal friction Angle and cohesive force.



Specification:





parameters details
power-driven shear speed 0.8mm,0.06,0.02mm/min
The sample area 30cm² height 2cm
lever ratio  1:20
vertical load Farmar pressurized 50,100,200,300,400kPa
shear maximum load 1.2kN
vertical deformation 0-10mm dial indicator optional
voltage  220V±10V  50Hz
size 980*580*980mm











C010 Power-driven Quadruple equal strain soil direct shear apparatus









Service:







1. Warranty 1 year of replacement and return.





2, Providing factory visit and study, technical training





3, 24-hour technical support by e-mail or phone





4, Providing laboratory construction program design guidelines





5, Providing product design and OEM service







C010 Power-driven Quadruple equal strain soil direct shear apparatus

















Packing and Shipping:







C010 Power-driven Quadruple equal strain soil direct shear apparatus











Trade Show:







C010 Power-driven Quadruple equal strain soil direct shear apparatus







Certification:





C010 Power-driven Quadruple equal strain soil direct shear apparatus
