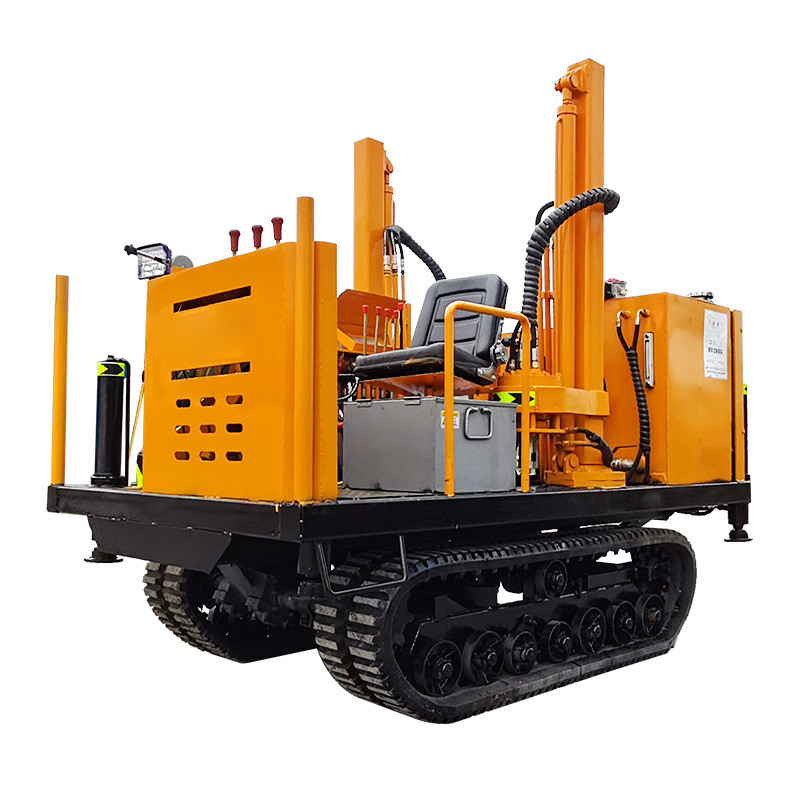

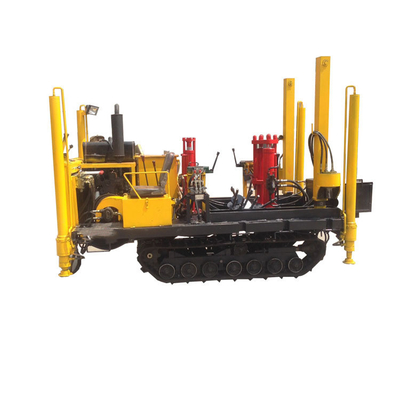

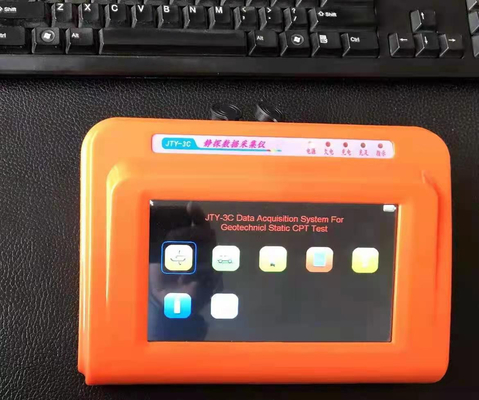

DYCL crawler hydraulic static probe vehicle
1, Features

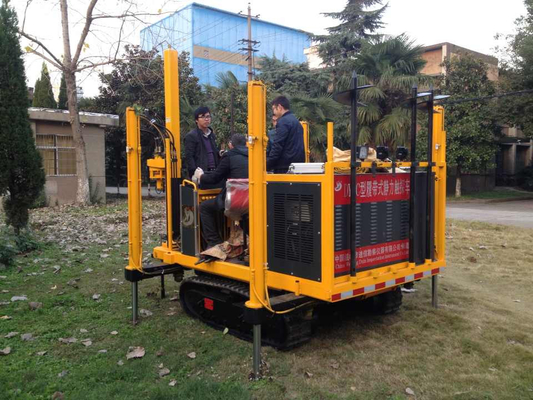

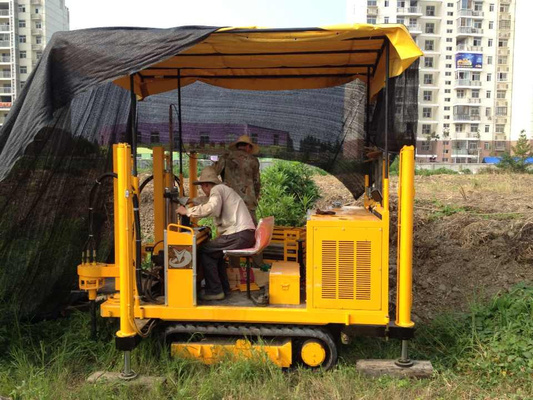

use of track bearing and walking may be on the beach, flood, sand, and the paddy fields to carry out CPT harsh environment operations, icy roads can still walk.

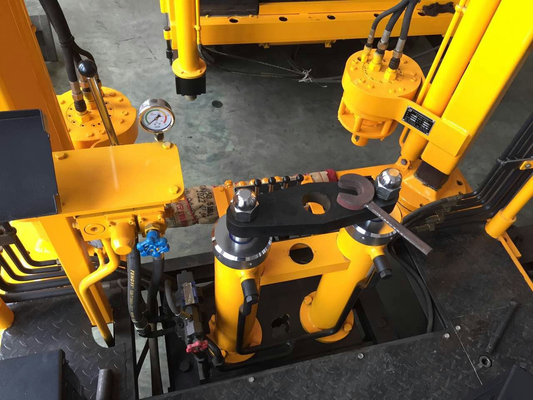

advanced hydraulic system, using sub-chip portfolio of multi-channel valve, compact structure, small size, easy installation, pressure loss is small, the pressure relief valve overload characteristics of a good.

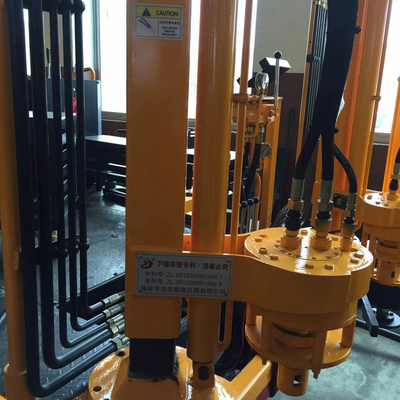

a unique sliding hydraulic screw anchor device, driven by the high-power oil-long screw rotating motor directly under the anchor, is lean, simple and convenient.
The function of a multi-purpose machine is not only a CPT test ideal equipment, configuration accessories, can be extended to CPTU (CPTU), Self-boring pressuremeter (PMT), flat dilatometer (DMT), Cross Shear (VCT), Press-wave velocity (WVT) and other in-situ tests.
Specification:
Engine: Power (KW): 22 -42 Speed (r / min): 2500 ~ 2800
travel agencies: walking speed (km / h): full-hydraulic high-speed: 4 Low-speed: 2.5
Mobile high-speed: 12.5 low: 6
Great climbing ability is not at 20 degrees. (Without weight)
Track: Rubber Lu-bandwidth (mm): 300 pitch (P): 82 Number of teeth (Z): 55
Width (mm): 400 pitch (p): 90 Number of teeth (Z): 48
Leg Cylinder: Bore D (mm): 90 Stroke (mm): 450
Bearing force (KN): 60 jack up force (KN): 60
sounding devices:
Specifications WYCL-15 WYCL-20 WYCL-25
Rated penetration force (KN) 150 200 250
Pull-out force (KN) 180 240 280
anchor institutions and counter-force to anchor
Anchor Motor Model: IQJM21-1.6T65 Maximum torque: 2442N. M
Speed (r / min) :2-100
Ground Anchor Type: Single-leaf anchor bolt diameter (mm)300
probe rod material: high-strength alloy steel 45MnMoB
Rod diameter (mm): 36, 40, 42 (optional)
oil capacity and work to allow the temperature
Fuel Tank (L): 20 Engine Oil (L): 7
Hydraulic system (L): (piping + tank + tank)110 in which hydraulic oil tank (L)80
The maximum ambient temperature (℃): 40 Minimum ambient temperature (℃): -20
The engine water temperature (℃): <90 hydraulic oil temperature (℃): <65
available for model form:
Ⅰ type: Single anchortype double-headed anchor: trains as a whole closed
Machine Dimensions
TypeDimension (mm): 310016001650 (lengthwidthheight)
TypeDimension (mm): 330016001650 (lengthwidthheight)
TypeDimension (mm): 330016002560 (lengthwidthheight)
Rack from the ground plane distance (mm): 660
Service:
1. Warranty 1 year of replacement and return.
2, Providing factory visit and study, technical training
3, 24-hour technical support by e-mail or phone
4, Providing laboratory construction program design guidelines
5, Providing product design and OEM service
