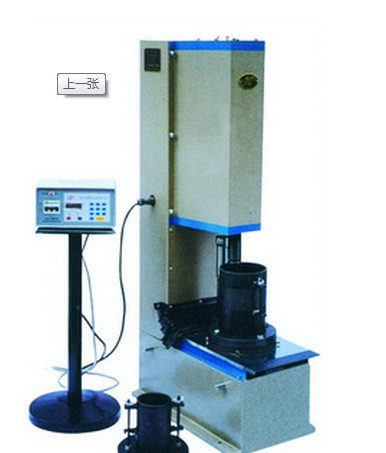

A59 Marshall mechanical compactor set

Product Details:

Place of Origin:	China
Brand Name:	zealchon
Certification:	iso
Model Number:	A59

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$2700
Packaging Details:	Wooden box
Delivery Time:	Within 7days
Payment Terms:	T/T
Supply Ability:	100 sets

Contact Now

Detailed Product Description

Power:	Electronic	Usage:	Marshall Mechanical Compactor

A59 Marshall mechanical compactor set

The instrument conforms to the law of the People's Republic of China,ministry of communications industry standard "JTG E20-2011 road asphalt and asphalt mixture test regulation, is a special equipment for asphalt mixture experiment specimen molding. Apply to the standard compaction method,

For asphalt mixture laboratory physical and mechanical properties test, Such as Marshall test.

Parameter	Size ZMJ-1	Size ZMJ-2
Hammer weight	10210g±10g	4536±9g
Hammer bottom diameter	149.4mm±0.1mm	98.5mm±0.5mm
Heavy hammer head	457.2mm±2.5mm	457.2±1.5mm
			The compaction speed	60 times/min	60times/min
Compaction times	Can preset, setting range: 0-99, has the preset number memory function	Can preset, setting range: 0-99, has the preset number memory function
			Specimen size	152.4mm*95.3mm	101.6mm*63.5mm
Specimen mold	Inner152.4.mm	Inner 101.6mm
	Height115mm;	Height87mm;
	Base plate thickness 12.7mm;Diameter 172mm	Base plate thickness 120.6mm;
	The sleeve diameter 155.6mm	The sleeve diameter 104.8mm
	The total height of 83mm	Height70mm
Power voltage	220V±10% 50HZ	220V±10% 50HZ
			Power	370W	370W
Boundary Dimension	540mm×540mm×1650mm	540mm×540mm×1650mm

Product Description

A59 Automatic marshall compaction machine with two weight hammer

The instrument conforms to the law of the People's Republic of China,ministry of communications industry standard "JTG E20-2011 road asphalt and asphalt mixture test regulation, is a special equipment for asphalt

mixture experiment specimen molding. Apply to the standard compaction method,

For asphalt mixture laboratory physical and mechanical properties test, Such as Marshall test.

Specification

item	value
Warranty	1 year
Certification	ISO
Customized support	OEM
Place of Origin	China
	Shaanxi
Brand Name	Zealchon
Model Number	A59
Power	Electronic
Hammer weight	10210g±10g
Hammer bottom diameter	149.4mm±0.1mm
Heavy hammer head	457.2mm±2.5mm
The compaction speed	60/min
Specimen size	152.4mm*95.3mm
Product name	Marshall Impact Compactor
Application	Asphalt
Standard	BS.EN.ASTM

Packing & Delivery

a. Inner package: dust-proof plastic bag b. Outer package: standard export wooden case with pallet c. Special package: according to buyer's requirements d. The packages suitable for international transport by sea, by air or by any other delivery methods

Company Profile

Xi 'an Zealchon electronic technology co., LTD, located in new technology industry development zone in Xi'an, an ancient city in China. It covers an area of 7500 square meters of building area. Zealchen specialize in civil engineering research and experimental apparatus; another is the semiconductor laser research and development.On one hand, currently based on civil experimental instrument research, the research team is founded by the personnel who come from Chang 'an university, Xi 'an polytechnic university, Xi 'an petroleum university, which has the top technology in this expertise. In addition, its research and development has accomplished a series of leading domestic and international standards, first-class technology of asphalt and asphalt mixture, road, bridge deck, geotechnical, structural testing instruments, even more, some of the products fill the blank of similar equipment at home and abroad, won national, ministerial, provincial awards.

Our technical support team, marketing, and web development teams make their homes in china as well, and are dedicated to providing comprehensive customer support and services.

FAQ

1. who are we?

We are based in Shaanxi, China, start from 2014,sell to Eastern Asia(30.00%),South Asia(30.00%),Mid East(15.00%),Western Europe(15.00%),Southern Europe(10.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;

3.what can you buy from us?

Bitumen Testing,Material Testing,Aggregate Testing Machine,Soil Testing,Laboratory machine

4. why should you buy from us not from other suppliers?

We have 20 years of experience in design research and development, with the guidance of professors and researchers from the Well-known institutions in China,developed a series of leading domestic detecting instrument and laser products.

5. what services can we provide?

Accepted Delivery Terms: FOB,CIF；

Accepted Payment Currency:USD,EUR,JPY,CAD,AUD;

Accepted Payment Type: T/T,Credit Card,Western Union,Escrow;

Language Spoken:English,Chinese,Spanish,Japanese

After-service

Exhibition
